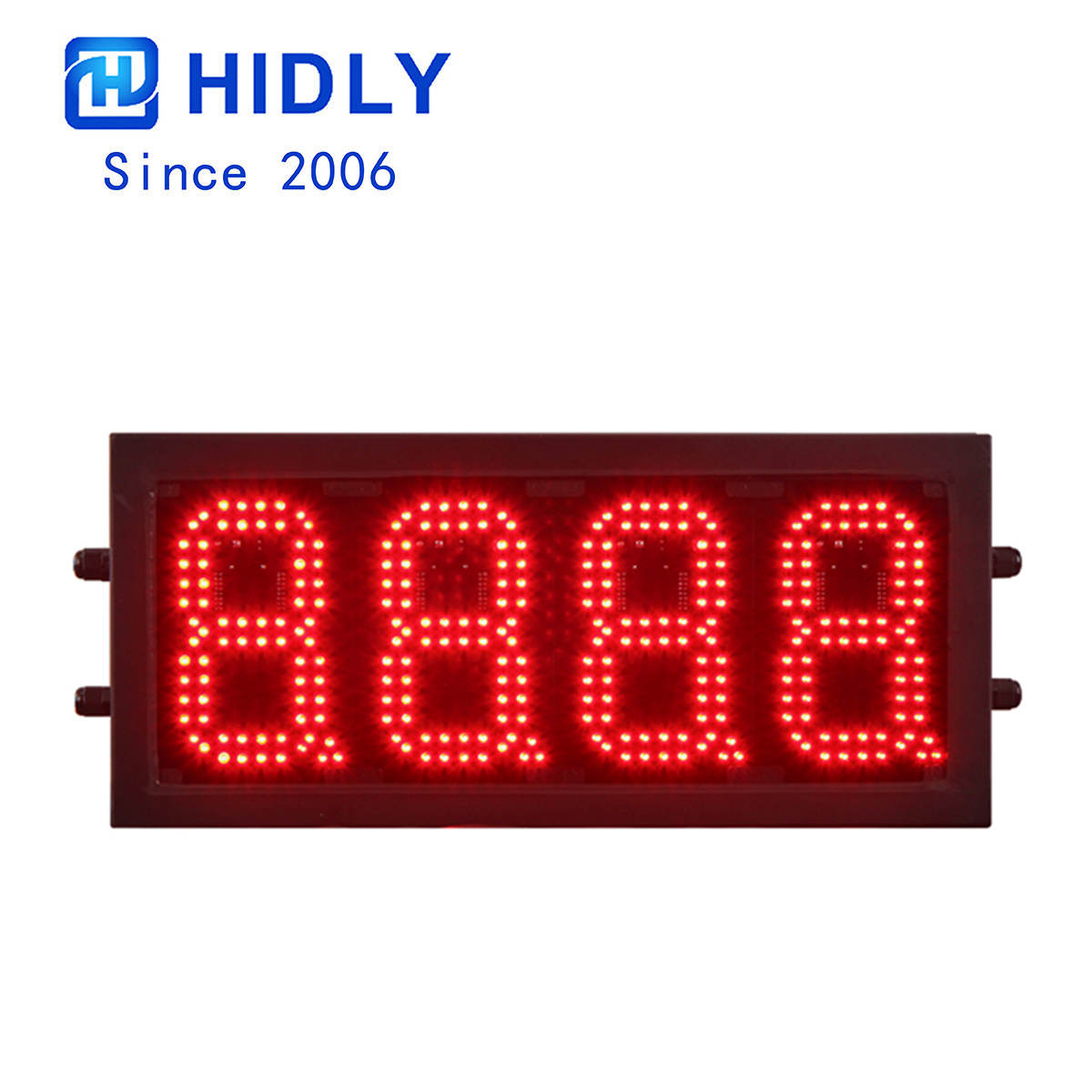

LED OIL DISPLAY OF GAS6Z8888
HIDLY's 6 inch custom led oil display are the key to driving more customers to your location and boosting profits. Led oil display offer a simple, reliable, plug-n-play solution that will integrate seamlessly to your operations and can be used in any fuel retail stores. HIDLY Custom led oil display offers bright easy to read technology making it an industry leading design.
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Why HIDLY Led Oil Display?(Custom Led Oil Display Advantages):
*Light weight: allows for an easy installation.
*UL-listed power for quality and safety assurance.
*Available leds colors: red, green,yellow, white, blue.
*Led oil display help your business grow more quickly.
*Reduce liability concerns from manual price changing.
*Industrial grade connectors: help prevent faulty contacts.
*Attach 2 station display back to back for double sided display.
*No extra cost or labor work for updating the large led oil display.
*All station display are tested and rated to work at least 100,000 hours.
*Simple Installation (mounting brackets included,no assembly required.
*User friendly remote controller makes adjusting prices simple and easy.
*Double your sales with bright, high quality and long-lasting led oil display.
*Available in various sizes:select a height: 4",6",7",8",10",12",14",16",18",20",24".
*Station custom display get your customers attention from as far as 1000 meters.
*Choose from varied regional formats like 8.8888, 8.888, 8.8889/10 and many more.
*High efficiency: the lowest energy consumption of any led display product to date.
*Made for easy mounting: brackets created for easy to mount on existing structure.
*Housing material: weatherproof steel casing with clear acrylic front protective cover.
*120 degree viewing angle allows for an increased viewing time over the competition.
*Simple to setup: ready to use out of the box (plug and play easy to install and operate).
*IP54 (Ingress protection rating) makes it withstand all weather as well as natural calamities.
*User friendly remote:update the large signs sitting in your store with the remote controller.
*Automatic light sensors: detects and adjusts the correct intensity for daytime or nighttime use.
*Environmentally friendly: no mercury, making them a cleaner alternative to fluorescent and CFL displays.
*Leds designed specifically for traffic: technology to prevent glare or reflection for an easier to ready display.
*Intelligent temperature control maintains safe operation temperatures to make signs last as long as possible.
*Be noticed first,from a very far distance,this is a onetime investment that will lead to a steady growth in your business.
*Brightness can be set from remote control or can be set to "Auto" for automatic brightness changes between night and day.

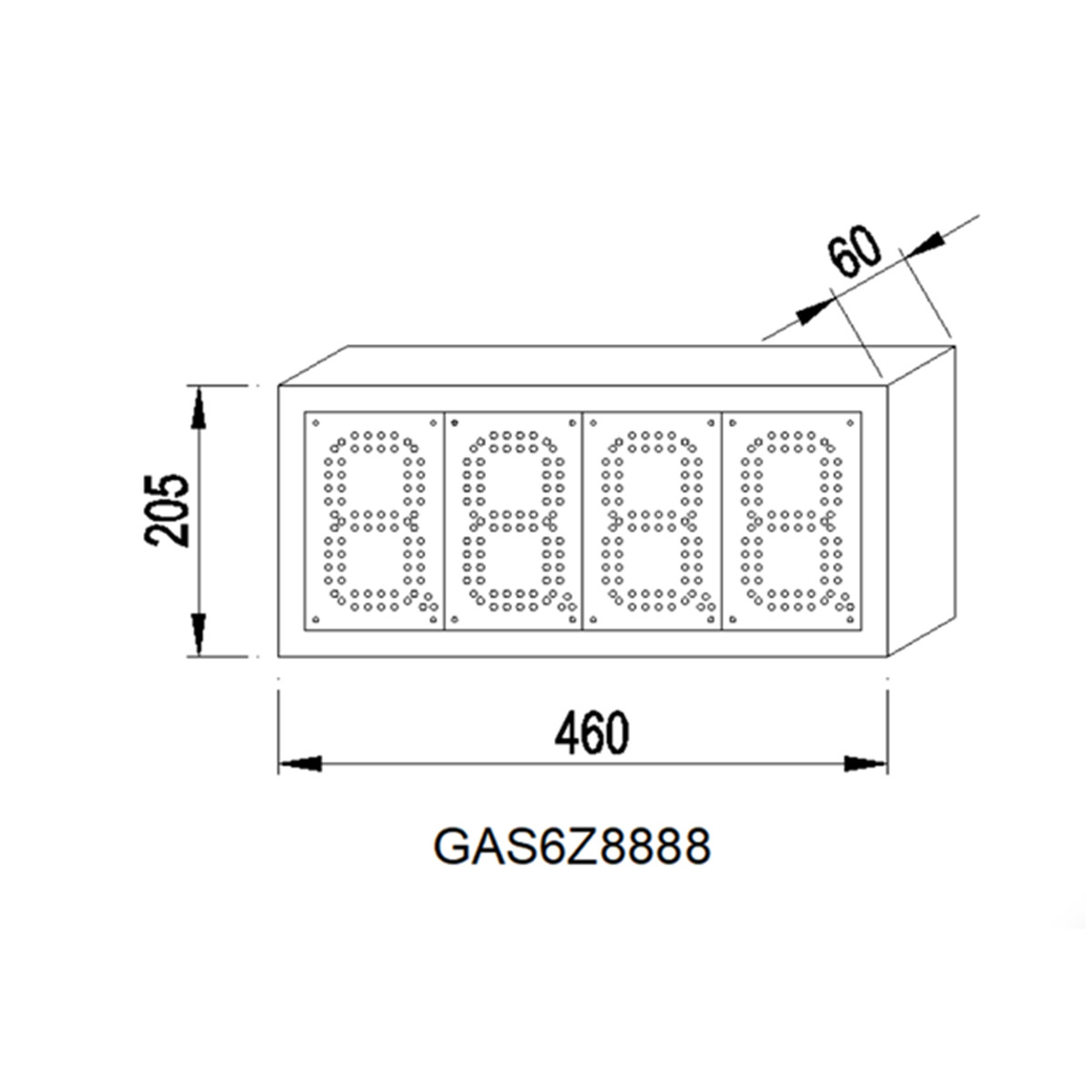

Large gas display dimensional drawing.

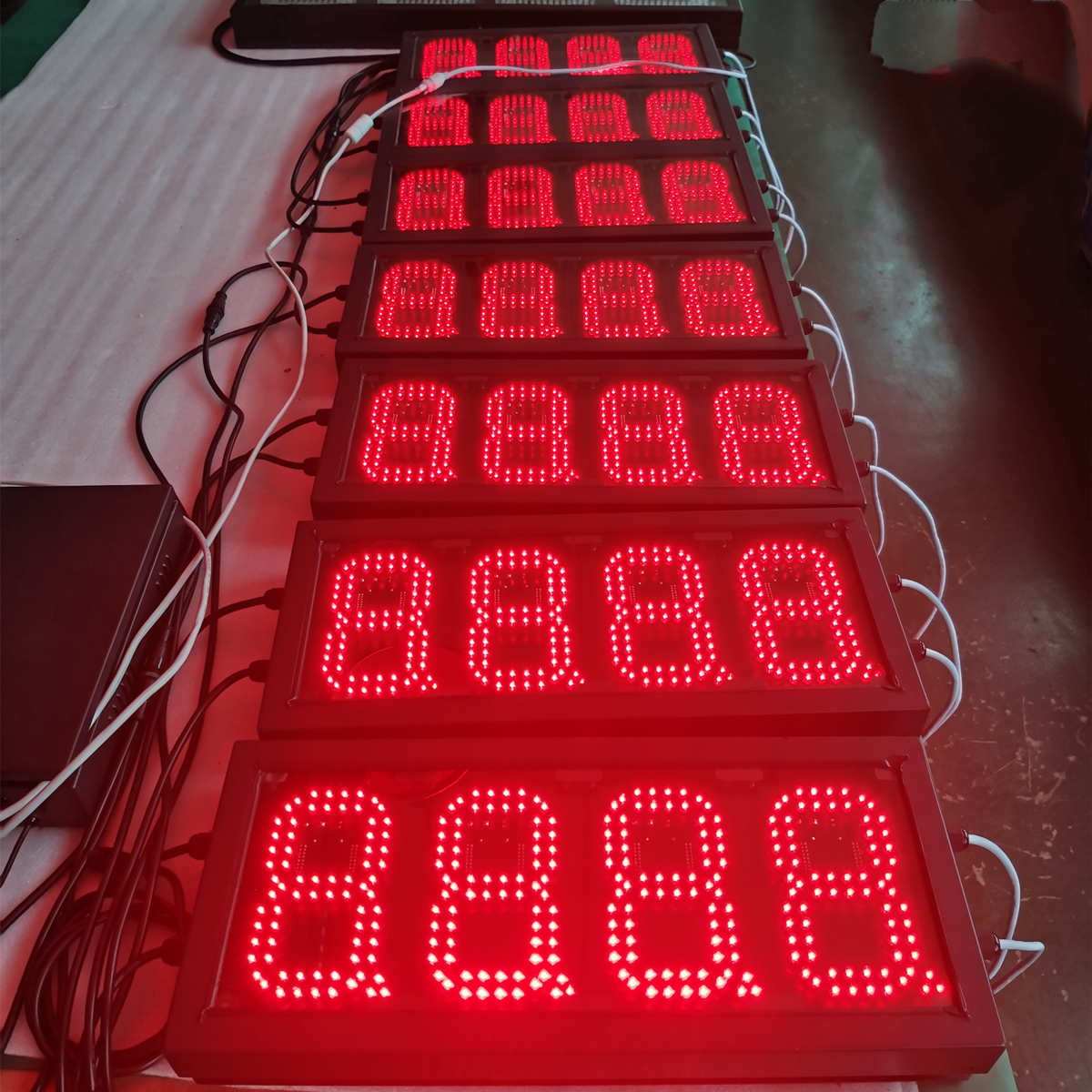

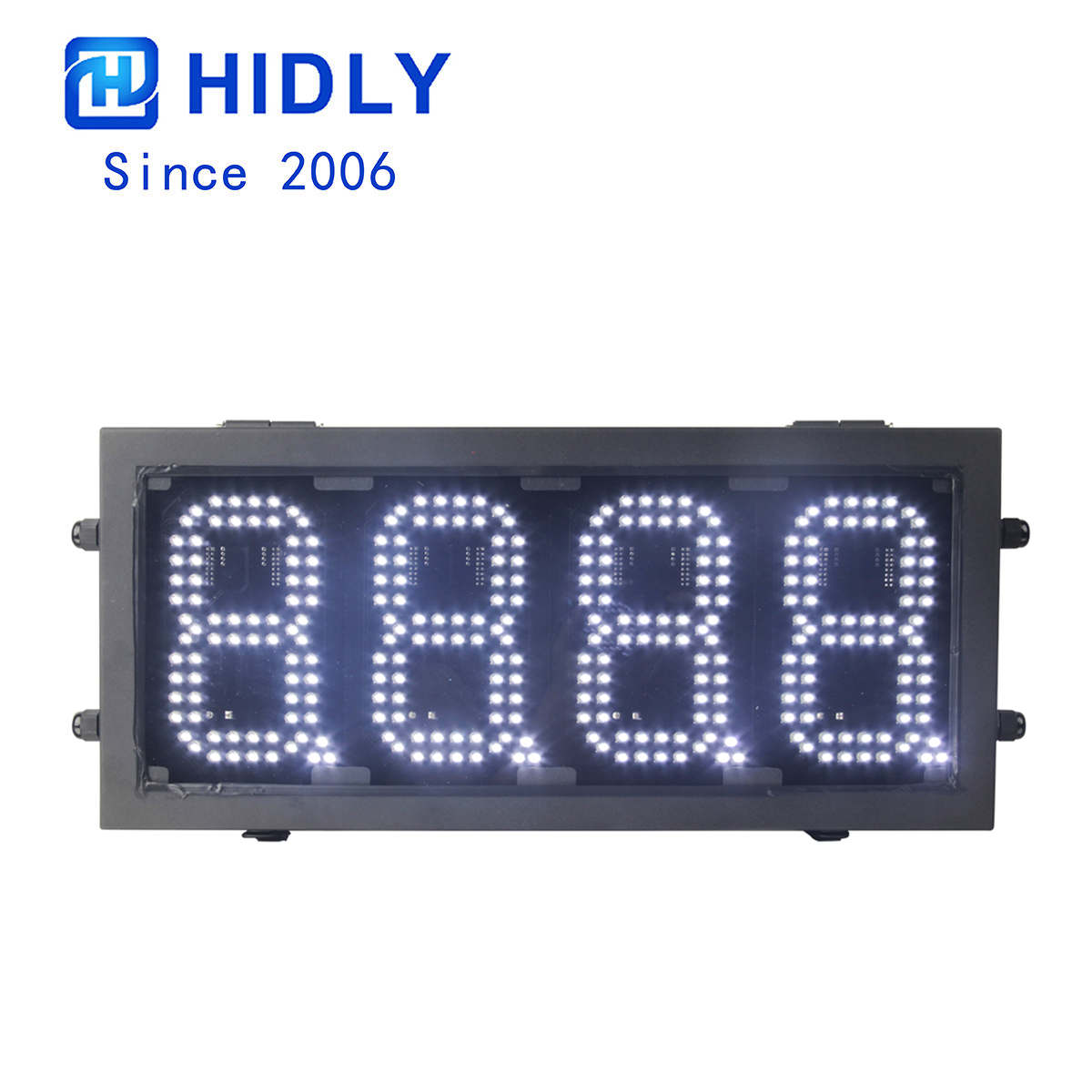

White custom led oil display are aging test.
Custom led oil display are aging test.
6 Inch Custom Oil Led Display Specifications:
*Model: GAS6Z8888
*Visibility: 500 m.
*Updated vervion:8.
*Brightness:10000 mcd.
*PCB thickness:1.6.
*Frame size: 460*205*60 mm.
*Digit number styles:8888.
*Energy consumption:50 W.
*Viewing angle:120 degree.
*Low energy consumption.
*Humidity range:10-80%RH.
*Driver:constant current drive.
*Temperature range:-10 F-140 F.
*Power input:DC12 V .
*2-year limited product warranty

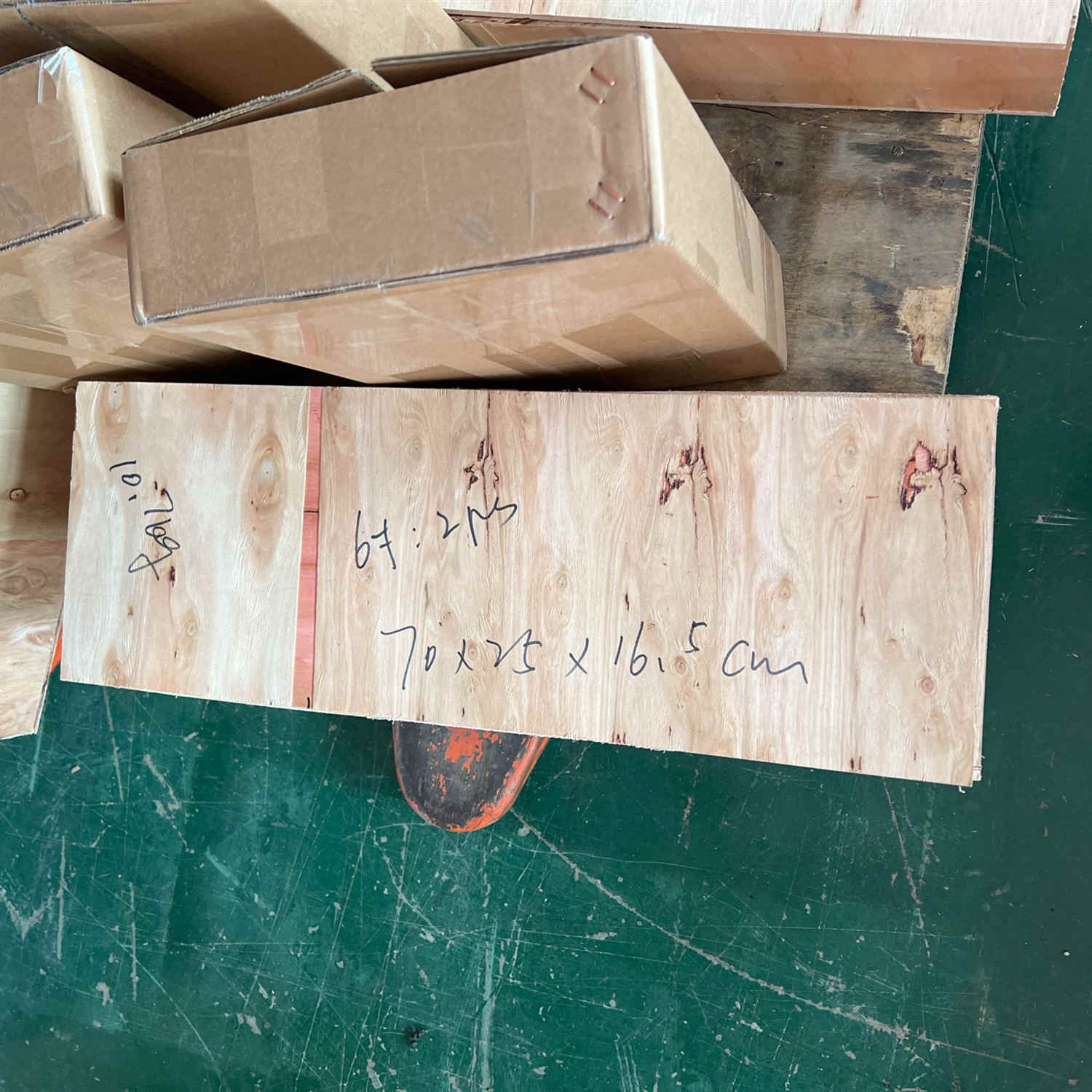

6 Inch Custom Led Oil Display Packaging Details:
Packaging:wooden case+EPE foam or carton+EPE foam.
Oil led signs size:460*205*60 mm.
Single net weight : 3.5 kg/pcs.
Outer package:70*25*16 cm.
Qty:2 pcs/CTN.
G.W:10 kg.
1CBM -70 pcs.
20' GP-1800 pcs.
40' GP-3600 pcs.
RF Remote Instruction of Custom Led Display
Note: 1.Before you operating, please press (button 8)
2. Press the button not too fast.
RF Remote Instruction of Modify Digit:
Step 1: Under the display working, press（button 3) and the first digit will begin to flash.
Step 2: Press（button 1), the flash digit will INCREASE by one.
Press（button 2), the flash digit will DECREASE by one.
Step 3: Press（button 4), the flash digit will shift to the next digit on the RIGHT,
Press（button 3), the flash digit will shift to the next digit on the LEFT.
Step 4: Press (button 5) to switch the digit.
Step 5: Press (button 6) to switch the dot.
Step 6: Press (button 7) to EXIT without saving.
Step 7: Press (button 8) to EXIT with saving.
RF Remote Instruction of Setting Brightness:
Step 1: Under the display working, press (button 5), all digits will begin to flash.
Step 2: Press (button 1), the sign become brighter; Press (button 2), the price sign become darker; "A” means auto brightness by CDS sensor.
Step 3: Press (button 7) to EXIT without saving.
Step 4: Press (button 8) to EXIT with saving.
Function of Button:
1 Digit-Up - (button 1): INCREASE by one.
2 Digit-Down-(button 2) : DECREASE by one.
3 Edit-(button 3):
Press one time to enter EDIT mode, and the first digit will begin to flash.
In EDIT mode：Press (button 3), the flash digit will shift to the next digit on the LEFT,
4 Shift-Right-(button 4):
The flash digit will shift to the next digit on the RIGHT, for each individual price sign.
5 Setting Brightness- (button 5) :
Press (button 5) to enter SET BRIGHTNESS mode and all digits will begin to flash.
In EDIT mode：Press (button 5), switch the digit
6 Switch-dot (button 6):
In EDIT model, press (button 6) to switch the dot.
7 Exit-(button 7):
Press (button 7) to EXIT without saving.
8 Confirm - (button 8):
Press (button 8) to EXIT with saving.
Thank you for using our LED gas sign!
Warm tips: the following functions need to be operated by oil signs basic operators.
1. Set the number of digits:
Step 1: in the normal working mode, press keys 2 and 8 at the same time, and the last number will flash.
Step 2: press 1 and 2 keys to modify the required value, and shift through 4 keys.
Step 3: press key 8 to save and take effect.
2. Key test most
In the normal reality mode, press the S1 and S2 keys on the gas led sign controller at the same time to enter the key test mode. Press the S1 key alone to switch the following four test modes:
a) Maintenance mode: press S2 key once to switch between all on and all off
b) Static mode: manually switch the display by pressing key S2: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "0." "1." "2." "3." "4." "5." "6." "7." "8." "9." "A"
c) Automatic switching display: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "0." "1." "2." "3." "4." "5." "6." "7." "8." "9." "A" .The switching speed can be adjusted by pressing S2 key.
d) Digital flow display: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "0." "1." "2." "3." "4." "5." "6." "7." "8." "9." "A" ,The flow speed can be adjusted by pressing S2 key.
Press the S1 and S2 keys on the gas sign control card at the same time to exit the factory test mode.
Frequently Asked Questions:
1.What are the lead times for custom oil display?
Upon payment, we will eventually process your order. However a lead time of 16 days is required.
2.What do the led oil display come with?
Our custom led oil display come with everything you need to operate such as a control box, cables, and remote.
3.What is the warranty policy should the led oil display arrive damaged?
We are pleased to offer our convenient warranty policy.
4.What color do these custom led display come in?
The custom led oil display are usually available in colors of Red, Green, Yellow and White.
5.What sizes do these led oil display come in?
The size of the signs is determined by the letter's height. We offer screens from 8" up to 48".
6.What formats do these price signs come in?
The custom signs formats are available in 8.88, 8.888, 8.888 9/10 and 8.88 8/8.
7.How long do led oil display last?
Our custom led oil display can last an average of 6 years.
8.Can you keep them on all day or night? And if so, will it affect the longevity?
Yes, you can keep them on 24/7 without affecting the longevity.
9.How to install the led oil display?
Please click here to see Installation diagram.
10.Can I get a different combination of screens than what appears on the website?
Yes, please fill out our custom request form for a custom quote if you need different sizes or combinations of colors.
11.How do you pack the led oil display?
We pack with utmost care to prevent breakage during shipping. Please refer to how we pack for more details.
12.Can you provide the solution of accessory?
Yes,we can.We are professional in custom signs.
13.Can you provide finished product solution for exhibition or bid?
Yes,we can,please refer the website,but the the lead time is longer.
14.Can you provide the large board as the size of costuming?
Yes,we can. If you want custom please contact us.
