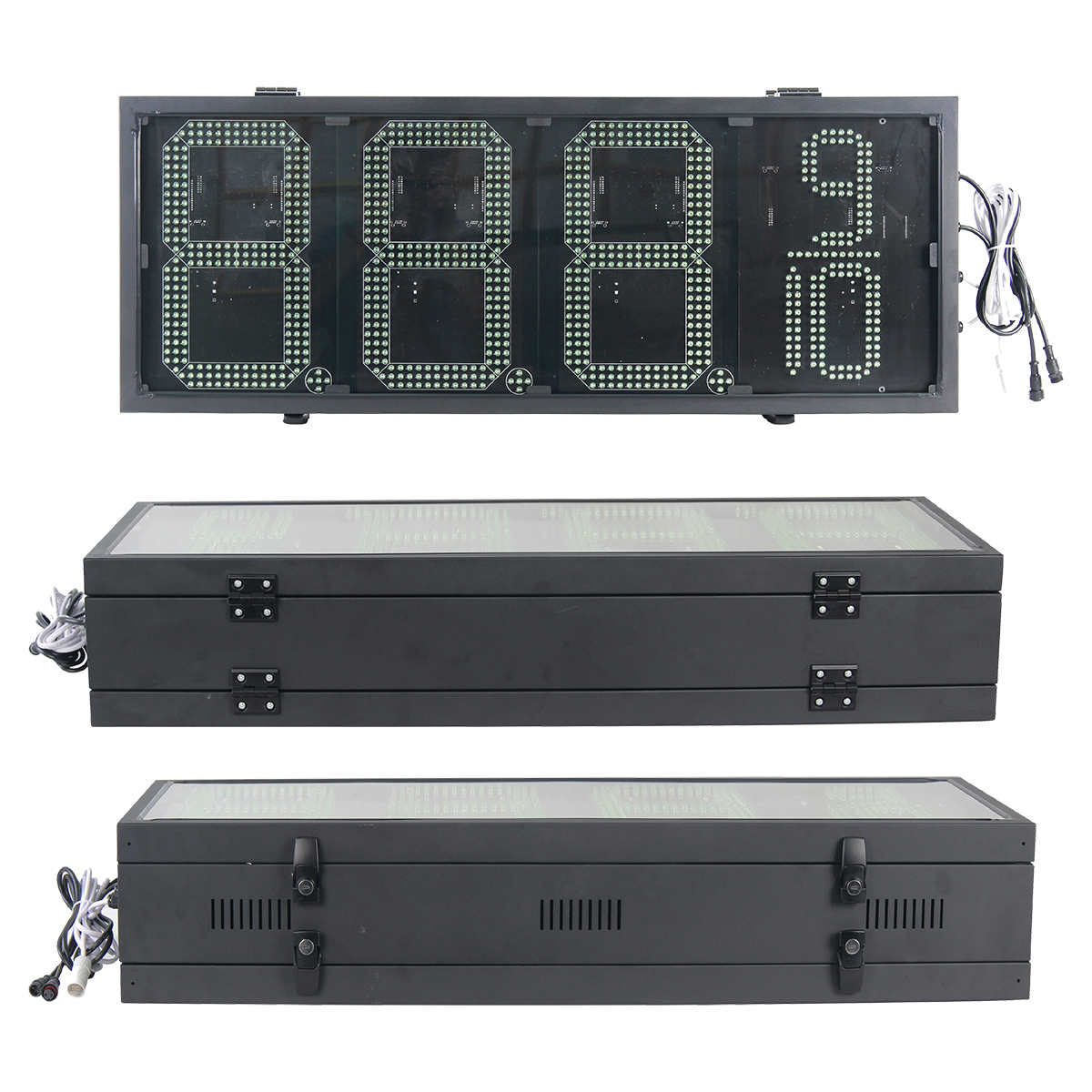

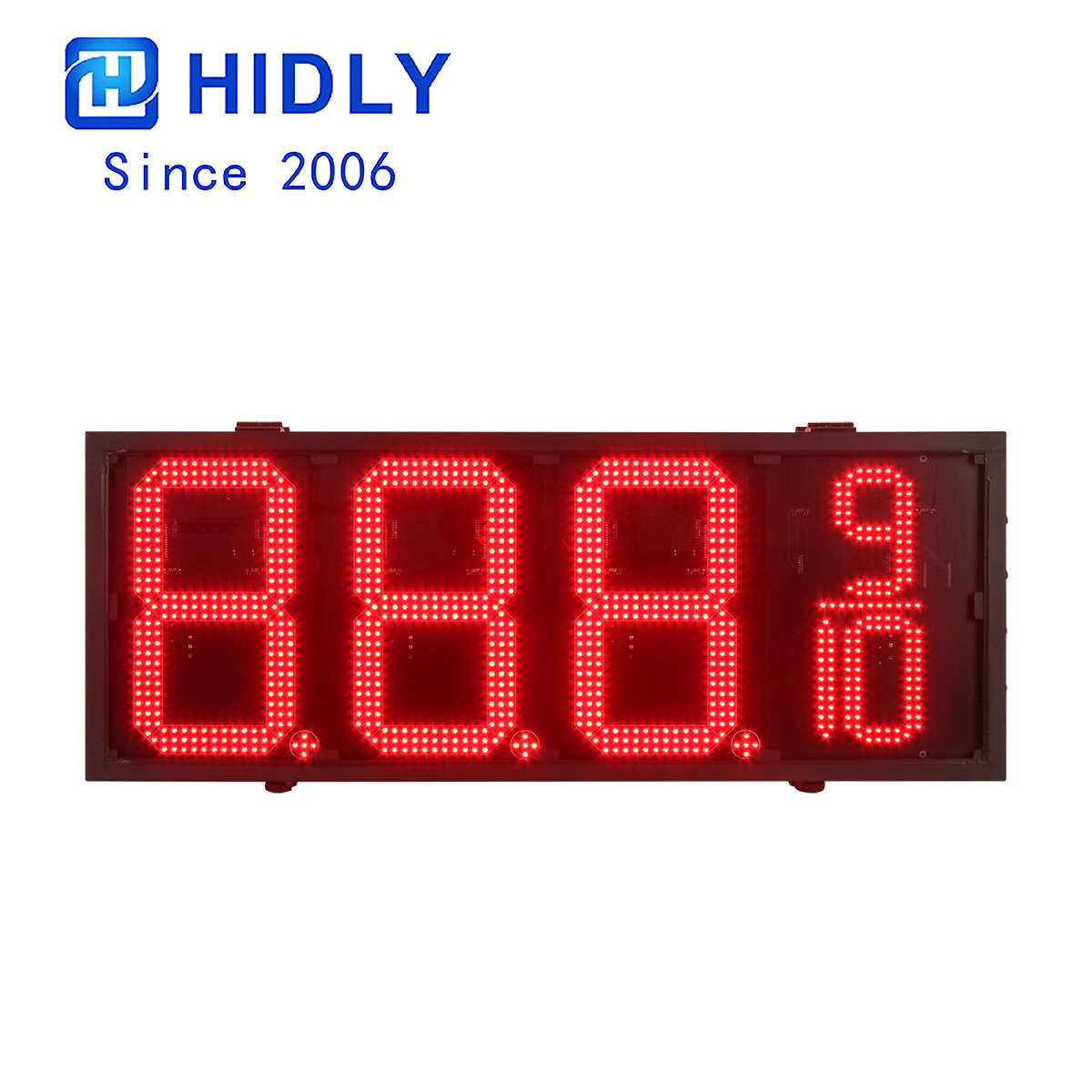

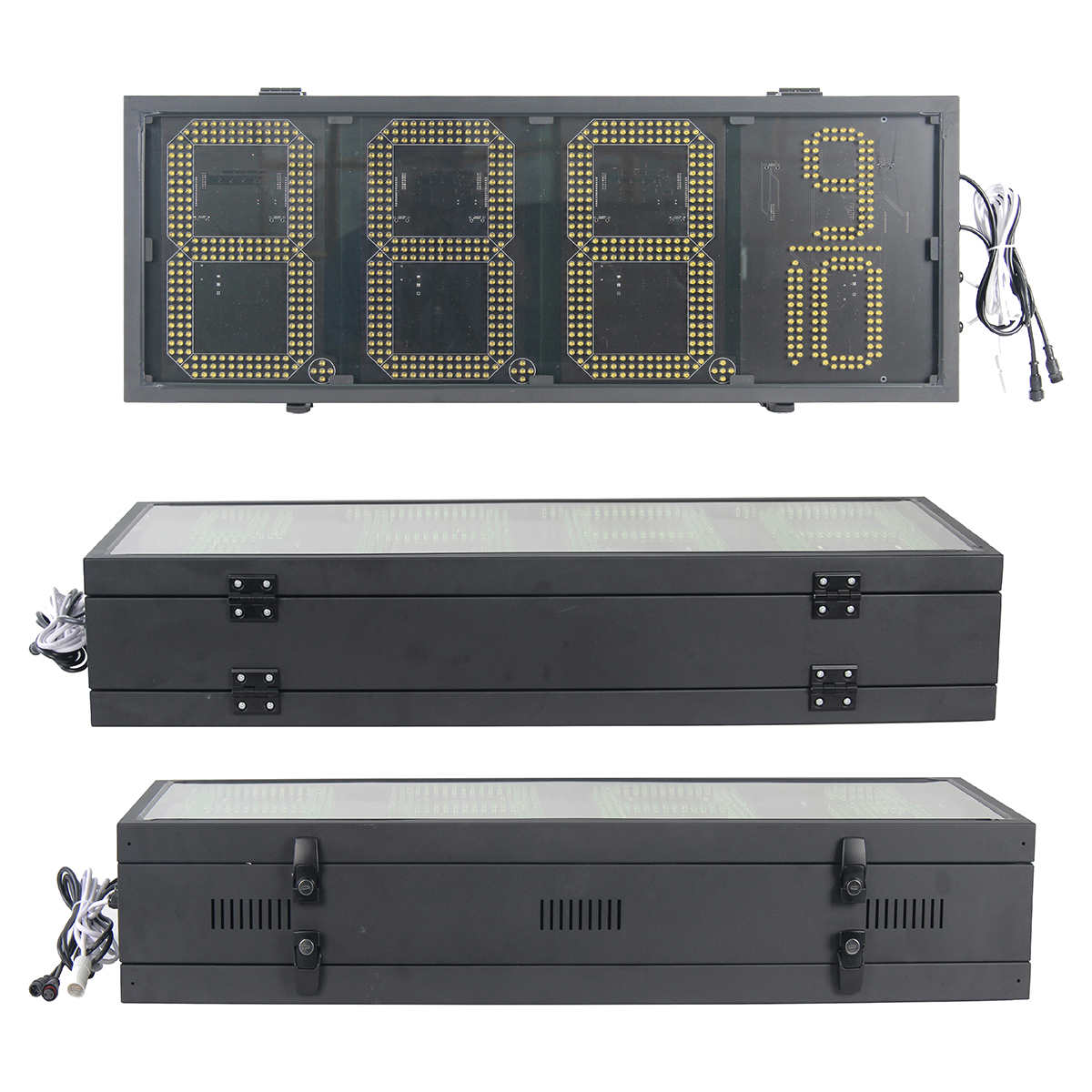

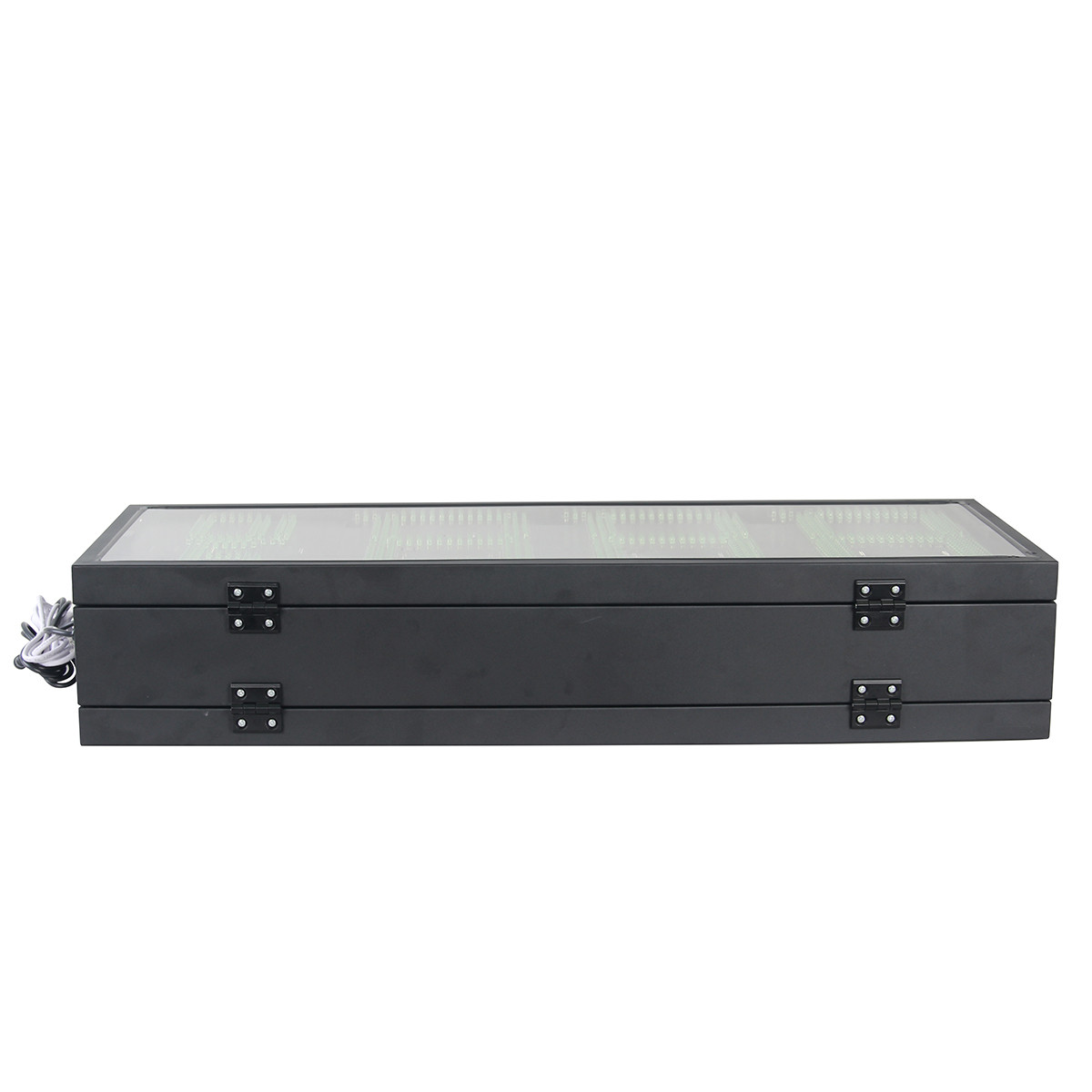

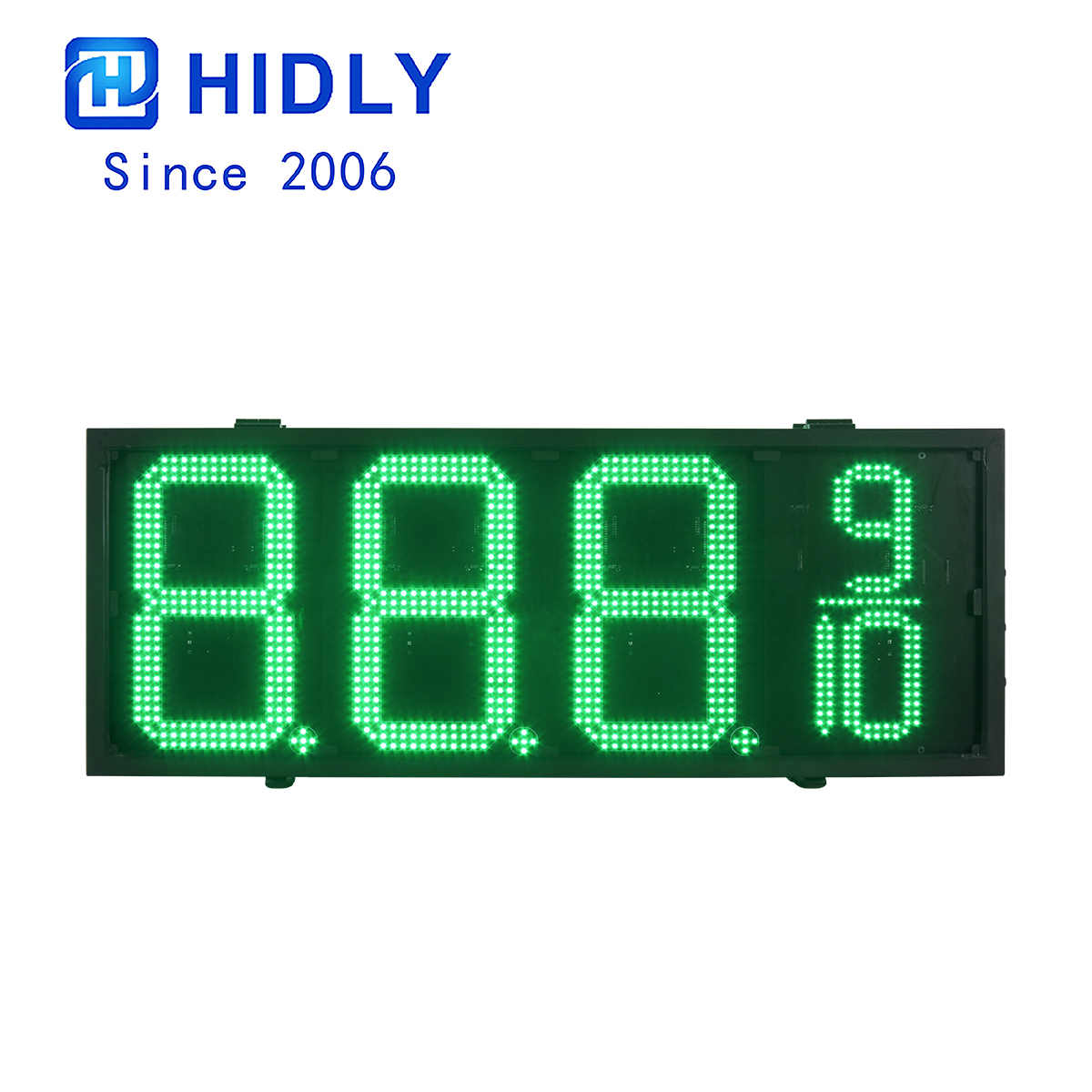

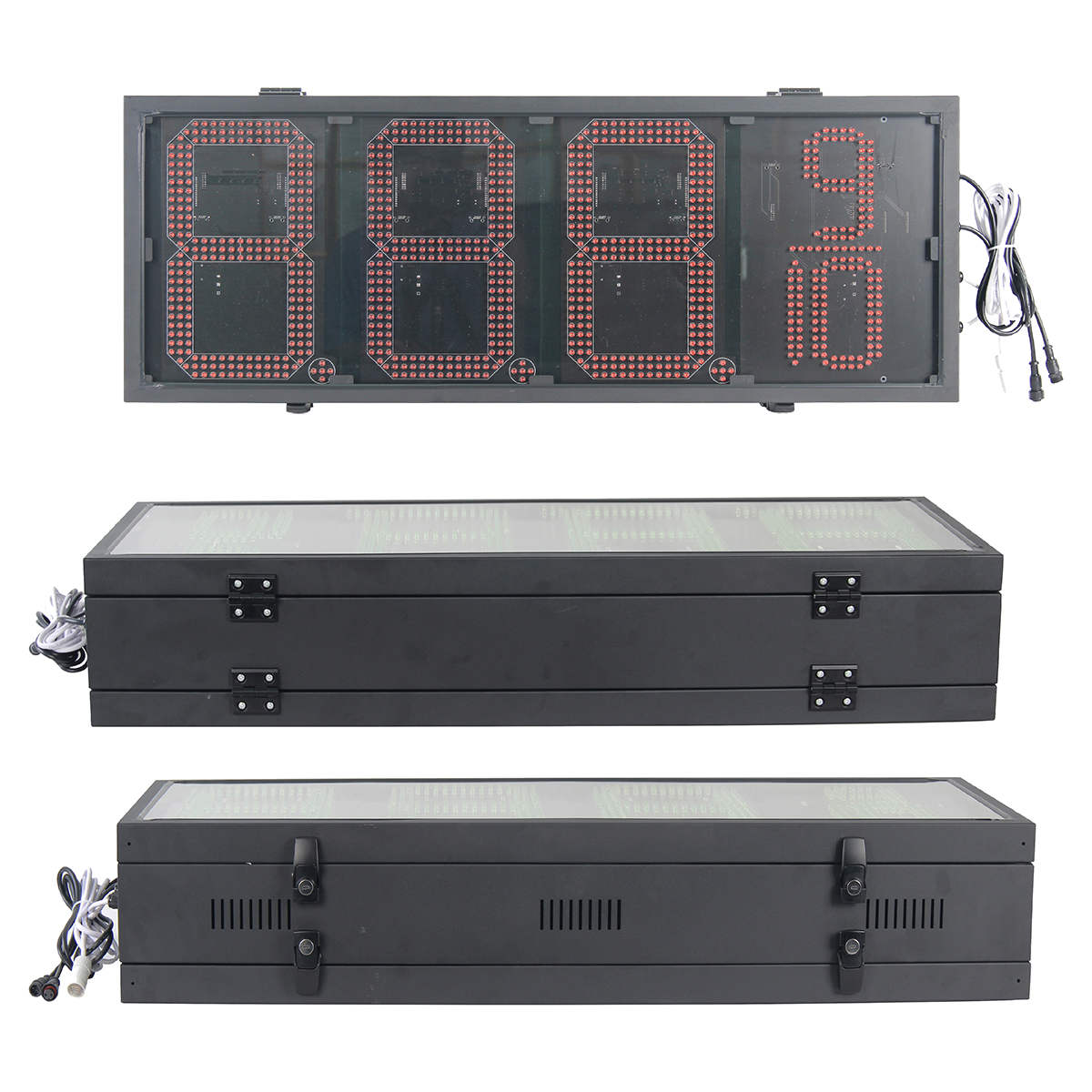

DOUBLE GAS SIGNS OF 12 inch

Why HIDLY Double Gas Signs?( Led Double Gas Signs Factory Advantages):

*Light weight: allows for an easy installation.

*UL-listed power for quality and safety assurance.

*Available leds colors: red, green,yellow, white, blue.

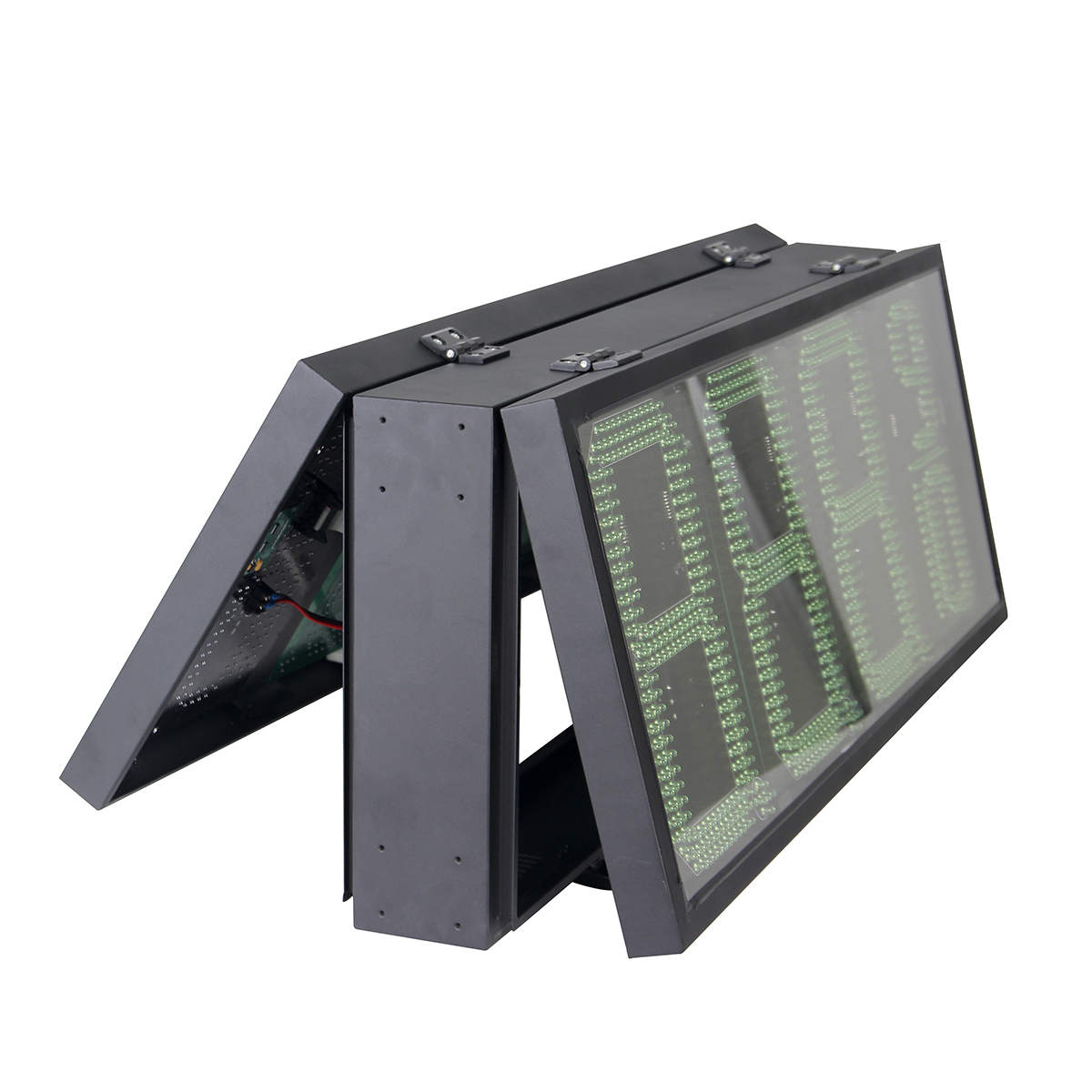

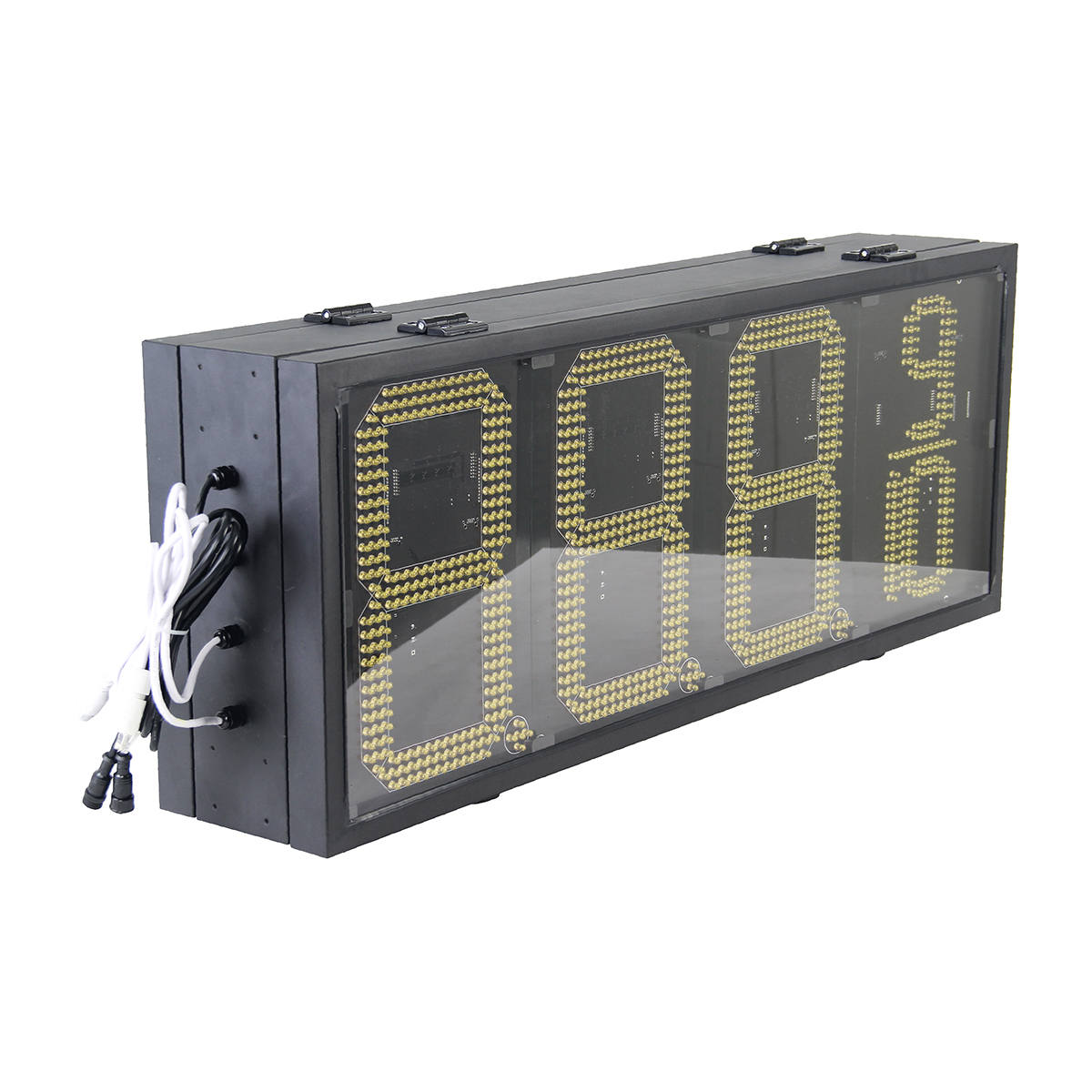

*Attach 2 signs back to back for double sided display.

*Reduce liability concerns from manual price changing.

*Industrial grade connectors: help prevent faulty contacts.

*All signs are tested and rated to work at least 100,000 hours.

*Led double gas signs help your business grow more quickly.

*You have many chouse from HIDLY led double gas signs factory.

*No extra cost or labor work for updating the double double gas signs.

*Simple Installation (mounting brackets included,no assembly required).

*User friendly remote controller makes adjusting prices simple and easy.

*Double gas signs gets your customers attention from as far as 500 meters.

*Double your sales with bright, high quality and long-lasting double gas signs.

*High efficiency: the lowest energy consumption of any signs product to date.

*Available in various sizes:select a height: 4",6",7",8",10",12",14",16",18",20",24".

*Made for easy mounting: brackets created for easy to mount on existing structure.

*User friendly remote:update the led sitting in your store with the remote controller.

*Choose from varied regional formats like:88.8, 8.88, 8.888, 8.88 9/10 and many more.

*Housing material: weatherproof steel casing with clear acrylic front protective cover.

*120 degree viewing angle allows for an increased viewing time over the competition.

*Simple to setup: ready to use out of the box (plug and play easy to install and operate).

*IP54 (Ingress protection rating) makes it withstand all weather as well as natural calamities.

*Double gas signs factory of HIDLY offers a variety of different led signs for your petro station.

*Automatic light sensors: detects and adjusts the correct intensity for daytime or nighttime use.

*Environmentally friendly: no mercury, making them a cleaner alternative to fluorescent and CFL displays.

As of today,HIDLY double gas signs factory has over 50 types of circuit boards for various digital boards

.

If you need to customize a gas station sign, just come to hidly led double signs factory for customization.

*Leds designed specifically for traffic: technology to prevent glare or reflection for an easier to ready petro signs.

*Intelligent temperature control maintains safe operation temperatures to make display last as long as possible.

*Be noticed first,from a very far distance,this is a onetime investment that will lead to a steady growth in your business.

You can find many double gas signs in the HIDLY double gas signs factory exhibition hall,there is always one that suits you.

*Brightness can be set from remote control or can be set to "Auto" for automatic brightness changes between night and day.

                                                    Gas signs are aging test.

                                                                        Custom led gas boards are aging test.

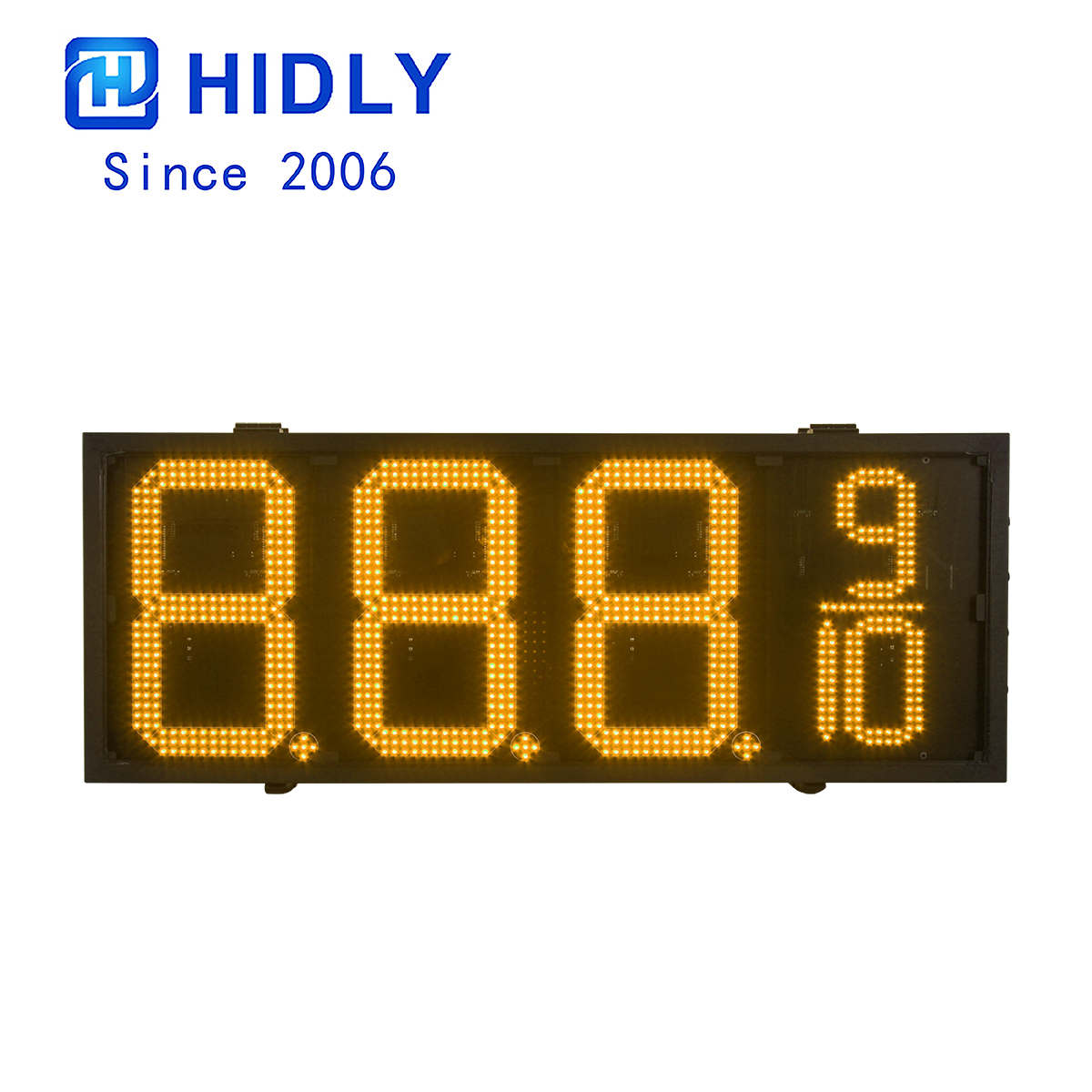

12 Inch Double Gas Signs Specifications:

*Led sign model: GAS12Z8889D.

*Visibility: 500 m.

*Updated vervion:8.

*Led brightness:10000 mcd.

*PCB thickness:1.6 mm.

*Digit number styles:8.889.

*Energy consumption:50 W.

*Led viewing angle:120 degree.

*Low energy consumption.

*Humidity range:10-80%RH.

*Driver:constant current drive.

*Temperature range:-10 F-140 F.

*Power input:DC 12 V or DC 15 V.

*1-year limited product warranty.

12 Inch Cutom double gas signs Packaging Details:

Packaging:wooden case+EPE foam or carton+EPE foam.

Led sign size:840*406*180 mm.

Single net weight : 12 kg/pcs.

Outer package:108*62*46 cm.

Qty:3 pcs/ctn.

G.W:52 kg.

1CBM -10 pcs.

20' GP-250 pcs.

40' GP-500 pcs.

RF Remote Instruction of Double Gas Signs

Note: 1.Before you operating, please press (button 8)

 2. Press the button not too fast.

RF Remote Instruction of Modify Digit:

  Step 1: Under the display working, press（button 3) and the first digit will begin to flash.

  Step 2: Press（button 1), the flash digit will INCREASE by one.

              Press（button 2), the flash digit will DECREASE by one.

  Step 3: Press（button 4), the flash digit will shift to the next digit on the RIGHT.

            Press（button 3), the flash digit will shift to the next digit on the LEFT.

  Step 4: Press (button 5) to switch the digit.

 Step 5: Press (button 6) to switch the dot.

 Step 6: Press (button 7) to EXIT without saving.

 Step 7: Press (button 8) to EXIT with saving.

RF Remote Instruction of Setting Brightness:

  Step 1: Under the display working, press (button 5), all digits will begin to flash.

  Step 2: Press (button 1), the sign become brighter; Press (button 2), the price sign become darker; "A” means auto brightness by CDS sensor.

  Step 3: Press (button 7) to EXIT without saving.

  Step 4: Press (button 8) to EXIT with saving.

Function of Button:

  1 Digit-Up - (button 1): INCREASE by one.

  2 Digit-Down-(button 2) : DECREASE by one.

  3 Edit-(button 3):

    Press one time to enter EDIT mode, and the first digit will begin to flash.

    In EDIT mode：Press (button 3), the flash digit will shift to the next digit on the LEFT.

  4 Shift-Right-(button 4):

    The flash digit will shift to the next digit on the RIGHT, for each individual price signs.

  5 Setting Brightness- (button 5) :

Press (button 5) to enter SET BRIGHTNESS mode and all digits will begin to flash.

In EDIT mode：Press (button 5), switch the digit

  6 Switch-dot (button 6):

In EDIT model, press (button 6) to switch the dot.

7 Exit-(button 7):

     Press (button 7) to EXIT without saving.

  8 Confirm - (button 8):

    Press (button 8) to EXIT with saving.

 Thank you for using our led sign!

Warm tips: the following functions need to be operated by double gas signs basic operators.

1. Set the number of digits:

Step 1: in the normal working mode, press keys 2 and 8 at the same time, and the last number will flash.

Step 2: press 1 and 2 keys to modify the required value, and shift through 4 keys.

Step 3: press key 8 to save and take effect.

2. Key test most

In the normal reality mode, press the S1 and S2 keys on the led sign controller at the same time to enter the key test mode. Press the S1 key alone to switch the following four test modes:

a) Maintenance mode: press S2 key once to switch between all on and all off

b) Static mode: manually switch the display by pressing key S2: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "0." "1." "2." "3." "4." "5." "6." "7." "8." "9." "A"

c) Automatic switching display: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "0." "1." "2." "3." "4." "5." "6." "7." "8." "9." "A" .The switching speed can be adjusted by pressing S2 key.

d) Digital flow display: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "0." "1." "2." "3." "4." "5." "6." "7." "8." "9." "A" ,The flow speed can be adjusted by pressing S2 key.

Press the S1 and S2 keys on the  gas sign control card at the same time to exit the factory test mode.

Frequently Asked Questions:

1.What are the lead times from led double gas signs factory?

Upon payment, we will eventually process your order. However a lead time of 16 days is required.

2.What do the double gas signs come with?

Our petro price signs come with everything you need to operate such as a control box, cables, and remote.

3.What is the warranty policy should the double gas signs arrive damaged?

We are pleased to offer our convenient warranty policy.

4.What color do these petro signs come in?

The double gas signs are usually available in colors of red, green, yellow and white.

5.What sizes do these double gas signs come in?

The size of the signs is determined by the letter's height. We offer screens from 8" up to 48".

6.What formats do these gas signs come in?

The screen formats are available in 8.88, 8.888, 8.889/10 and 8.88 8/8.

7.How long do led double gas signs last?

Our double gas signs can last an average of 6 years.

8.Can you keep them on all day or night? And if so, will it affect the longevity?

Yes, you can keep them on 24/7 without affecting the longevity.

9.How to install the led double gas signs?

Please click here to see Installation diagram.

10.Can I get a different combination of screens than what appears on the website?

Yes, please fill out our custom request form for a custom quote if you need different sizes or combinations of colors.

11.How do you pack the signs in double gas signs factory?

We pack with utmost care to prevent breakage during shipping. Please refer to how we pack for more details.

12.Can you provide the solution of accessory from factory?

Yes,we can.We are a professional double gas signs factory.

13.Can you provide finished product solution for exhibition or bid?

Yes,we can,please refer the website,but the the lead time is longer.

14.Can you provide the digital board as the size of costuming?

Yes,we can. If you want custom please contact us.
