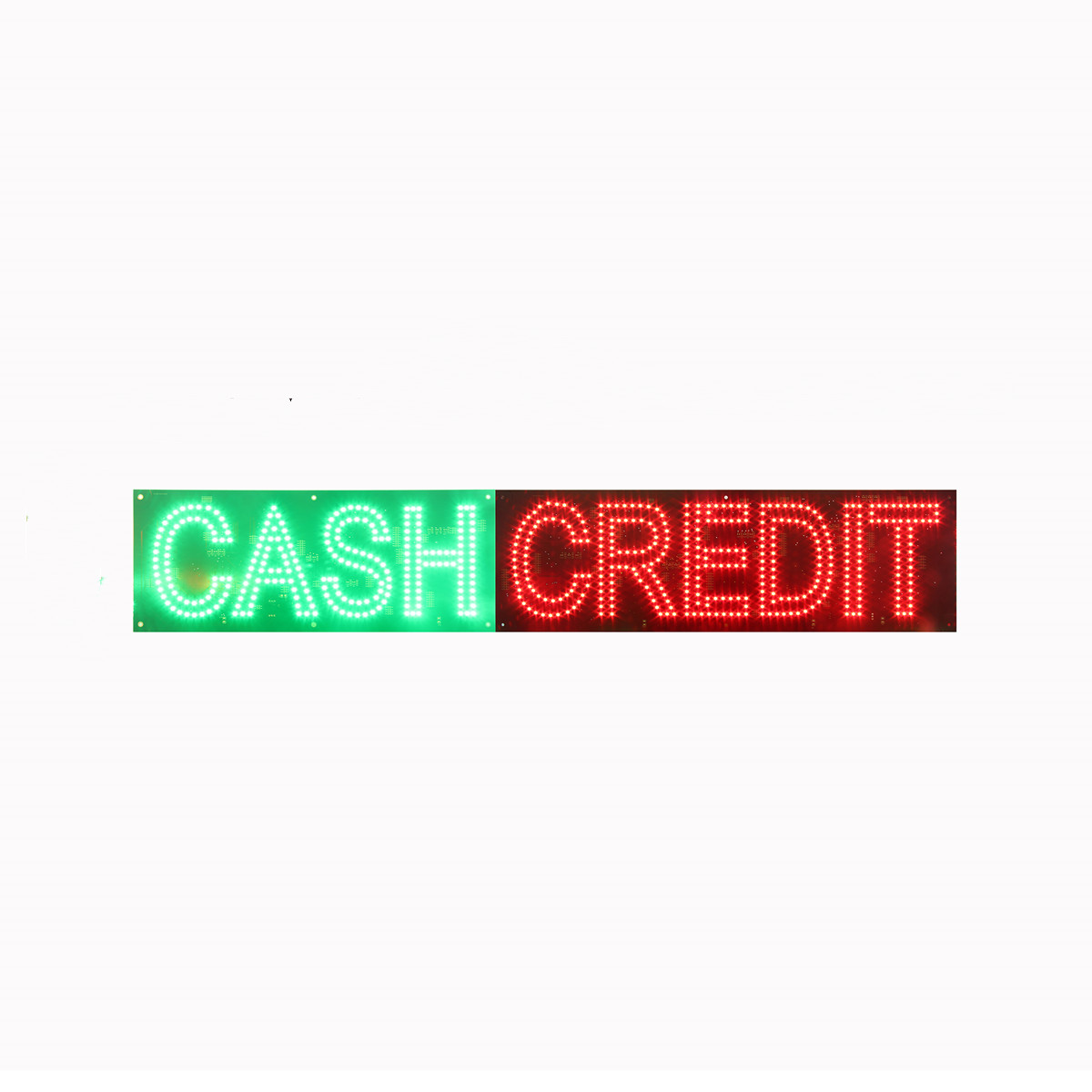

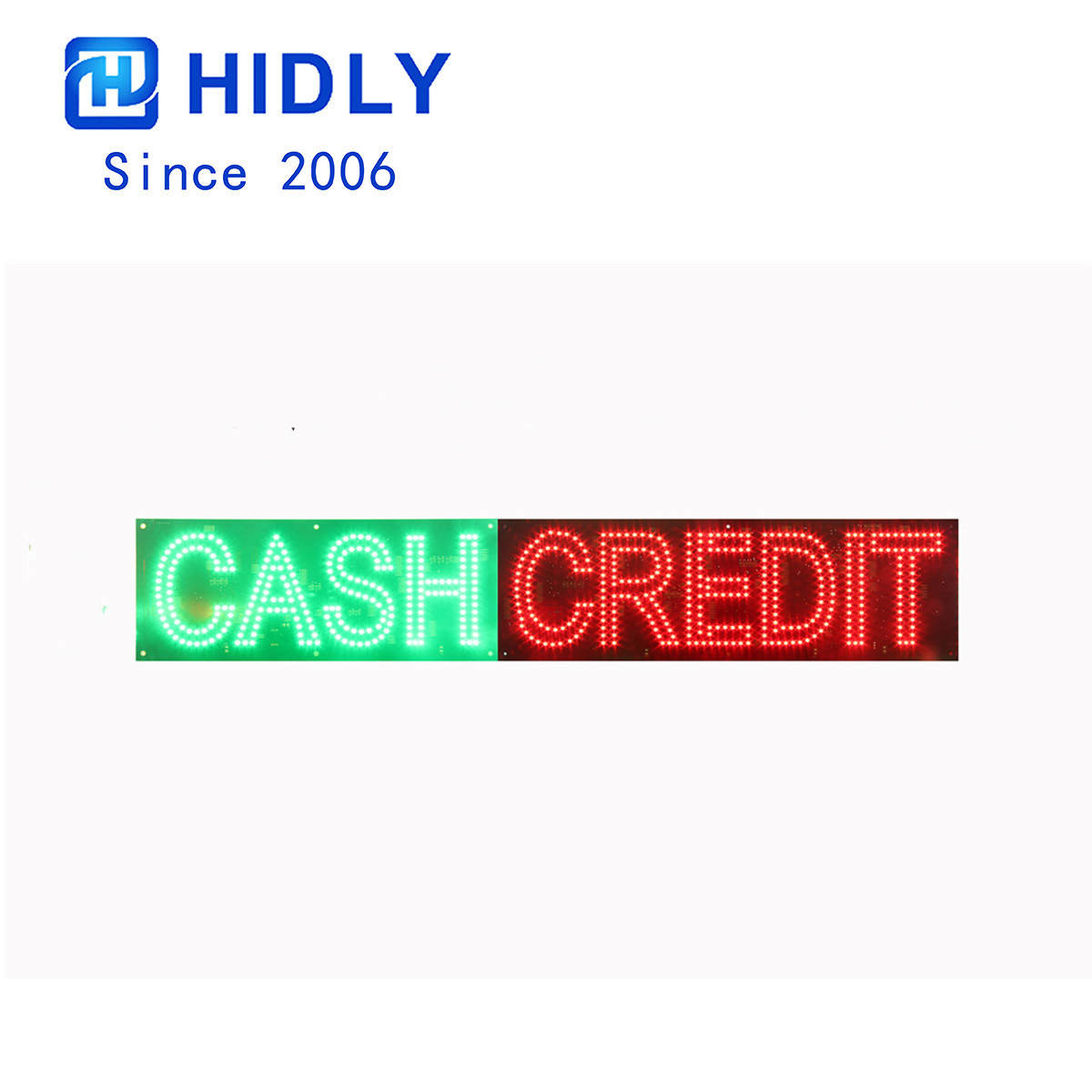

CREDIT GAS SIGNS OF GAS8514
CREDIT gas signs can be the preferred method of advertising for your company's service station. Consumers will almost certainly pick your store rather than the competitors. Regular CREDIT gas signs have proven to be eight times more advantageous in comparison to printed signs. Led CREDIT gas signs are certainly obvious 24/7. Regardless of whether your other signage isn't very apparent, your CREDIT board are going to be illuminating your store. Rain or shine, customers will be able to differentiate you against your competitors with your modern signs. Utilizing a CREDIT board will probably draw in the interest of each and every potential consumer traveling by.
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Why HIDLY CREDIT Gas Signs?( Led CREDIT Gas Signs Advantages):
*Light weight: allows for an easy installation.
*UL-listed power for quality and safety assurance.
*Available leds colors: red, green,yellow, white, blue.
*Attach 2 signs back to back for double sided display.
*Reduce liability concerns from manual price changing.
*Industrial grade connectors: help prevent faulty contacts.
*Led CREDIT gas signs help your business grow more quickly.
*Drive traffic from the gas pump into the store for added sales.
*Attract visitors from the road to be their gas station of choice.
*You have many chouse from HIDLY led CREDIT gas signs factory.
*All gas signs are tested and rated to work at least 100,000 hours.
*No extra cost or labor work for updating the led CREDIT gas signs.
*Double sided with the impact resistance rigid polycarbonate shield.
*Repair Friendly: extremely convenient to replace parts when necessary.
*Simple Installation:mounting brackets included,no assembly required.
*User friendly remote controller makes adjusting prices simple and easy.
*CREDIT gas signs gets your customers attention from as far as 50 meters.
*Double your sales with bright, high quality and long-lasting CREDIT display.
*High efficiency: the lowest energy consumption of any signs product to date.
*Available in various sizes:select a height: 4",6",7",8",10",12",14",16",18",20",24".
*Made for easy mounting: brackets created for easy to mount on existing structure.
*User friendly remote:update the led sitting in your store with the remote controller.
*Choose from varied regional formats like:88.8, 8.88, 8.888, 8.88 9/10 and many more.
*Housing material: weatherproof steel casing with clear acrylic front protective cover.
*120 degree viewing angle allows for an increased viewing time over the competition.
*Simple to setup: ready to use out of the box (plug and play easy to install and operate).
*CREDIT gas signs factory of HIDLY offers a variety of different led signs for your gas station.
*IP54 (Ingress protection rating) makes it withstand all weather as well as natural calamities.
*Automatic light sensors: detects and adjusts the correct intensity for daytime or nighttime use.

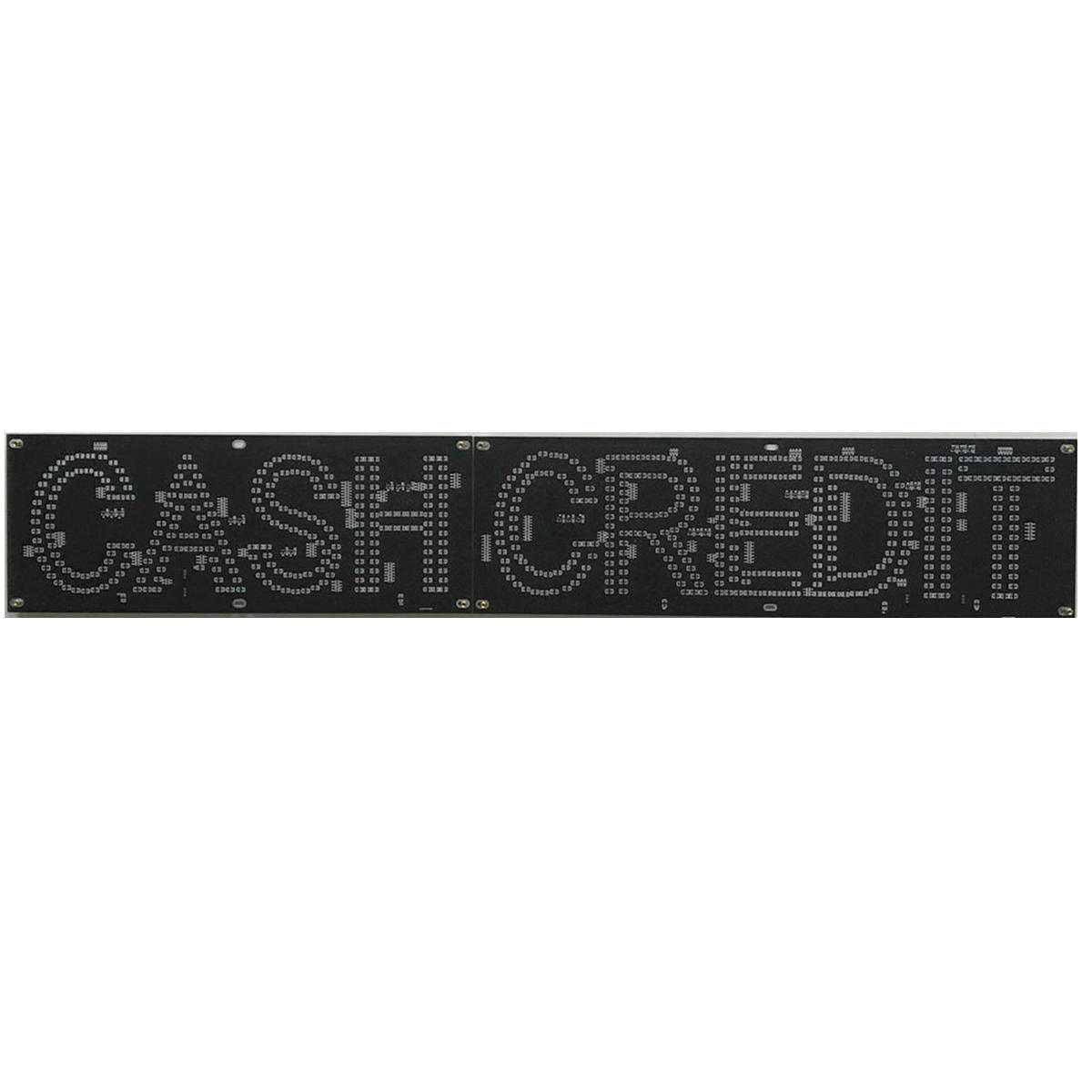

*As of today,HIDLY CREDIT gas signs factory has over 50 types of circuit boards for various CREDIT boards.
*Environmentally friendly: no mercury, making them a cleaner alternative to fluorescent and CFL displays.
*If you need to customize a gas signs, just come to HIDLY led led CREDIT gas signs factory for customization.
*Elevate the image of your brand: attract more customers with highly visible fuel price sign with modern touch.
*Intelligent temperature control maintains safe operation temperatures to make display last as long as possible.
*Leds designed specifically for traffic: technology to prevent glare or reflection for an easier to ready petro signs.
*Be noticed first,from a very far distance,this is a onetime investment that will lead to a steady growth in your business.
*Increase work efficiency: provides convenience and allows store operators to focus on sales and various important task.
*You can find many CREDIT boards in the HIDLY led CREDIT gas signs factory exhibition hall,there is always one that suits you.
*Brightness can be set from remote control or can be set to "Auto" for automatic brightness changes between night and day.
*Led CREDIT gas signs let your customers know the price of fuel at a glance with changeable digitally printed styrene number sets slide in from the side.
*Absolute time saver: Instantly update all your fuel pricing with remote update. Eliminates the need to change each grade pricing manually on each side of the dispenser.
*HIDLY has numerous CREDIT board designs ready-to-go to meet your needs. We can also custom design and manufacture led CAHS board to meet your specific requirements.

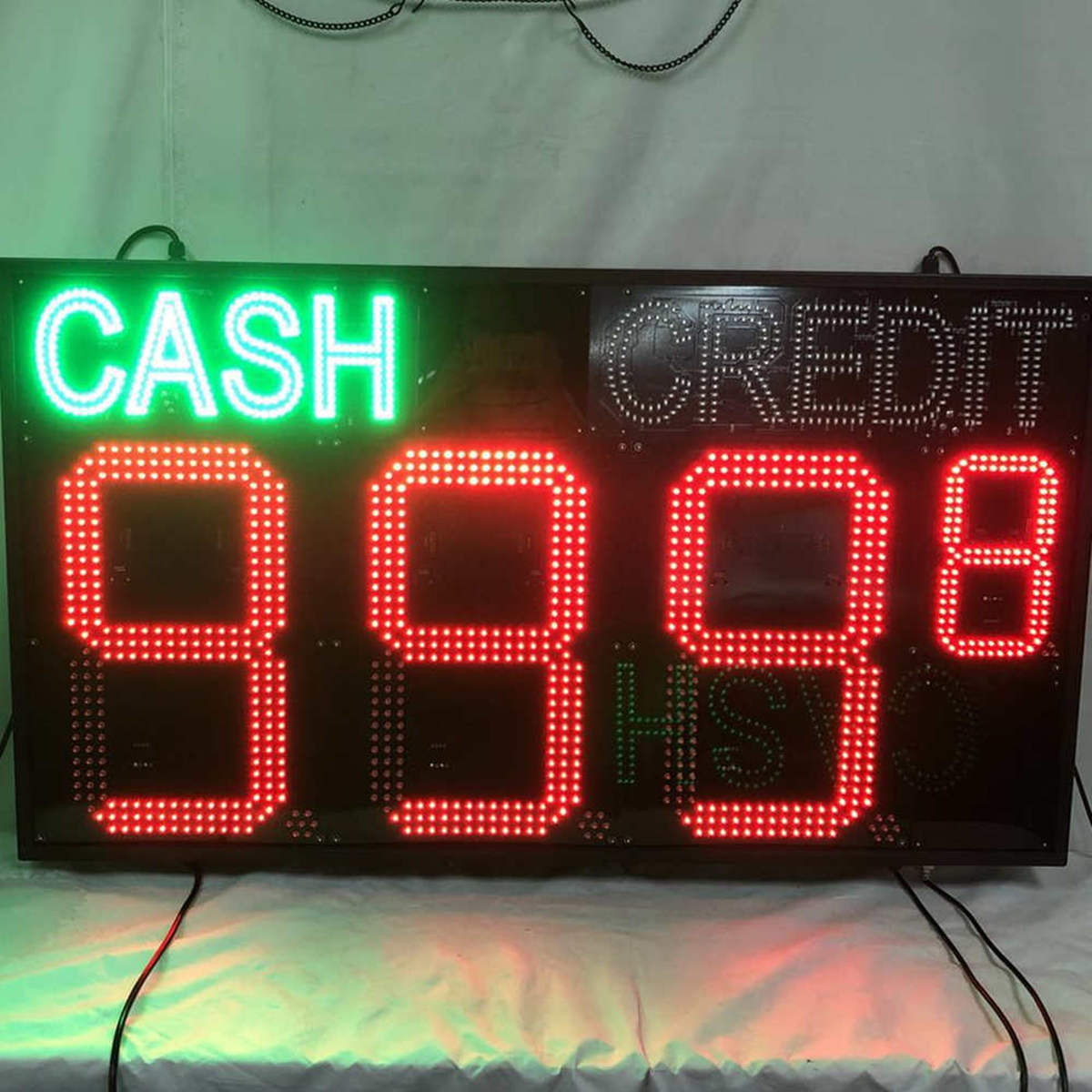

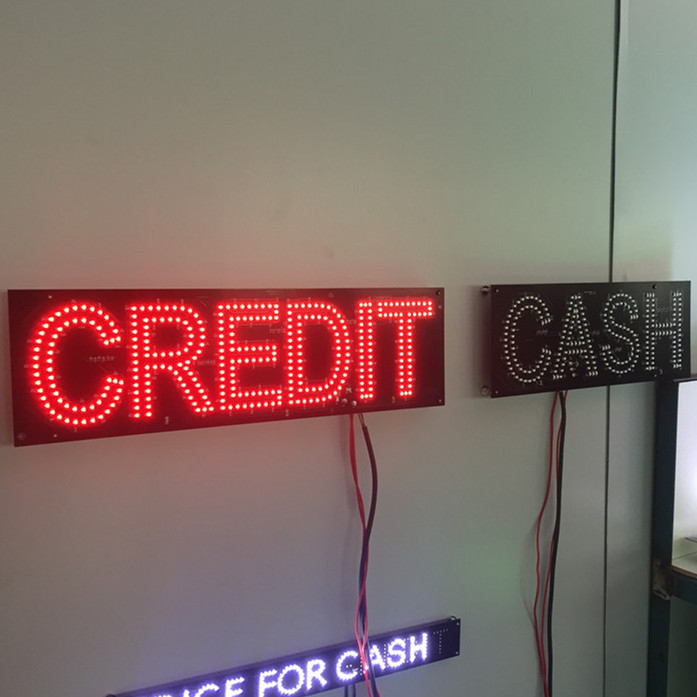

CREDIT signs are aging test.

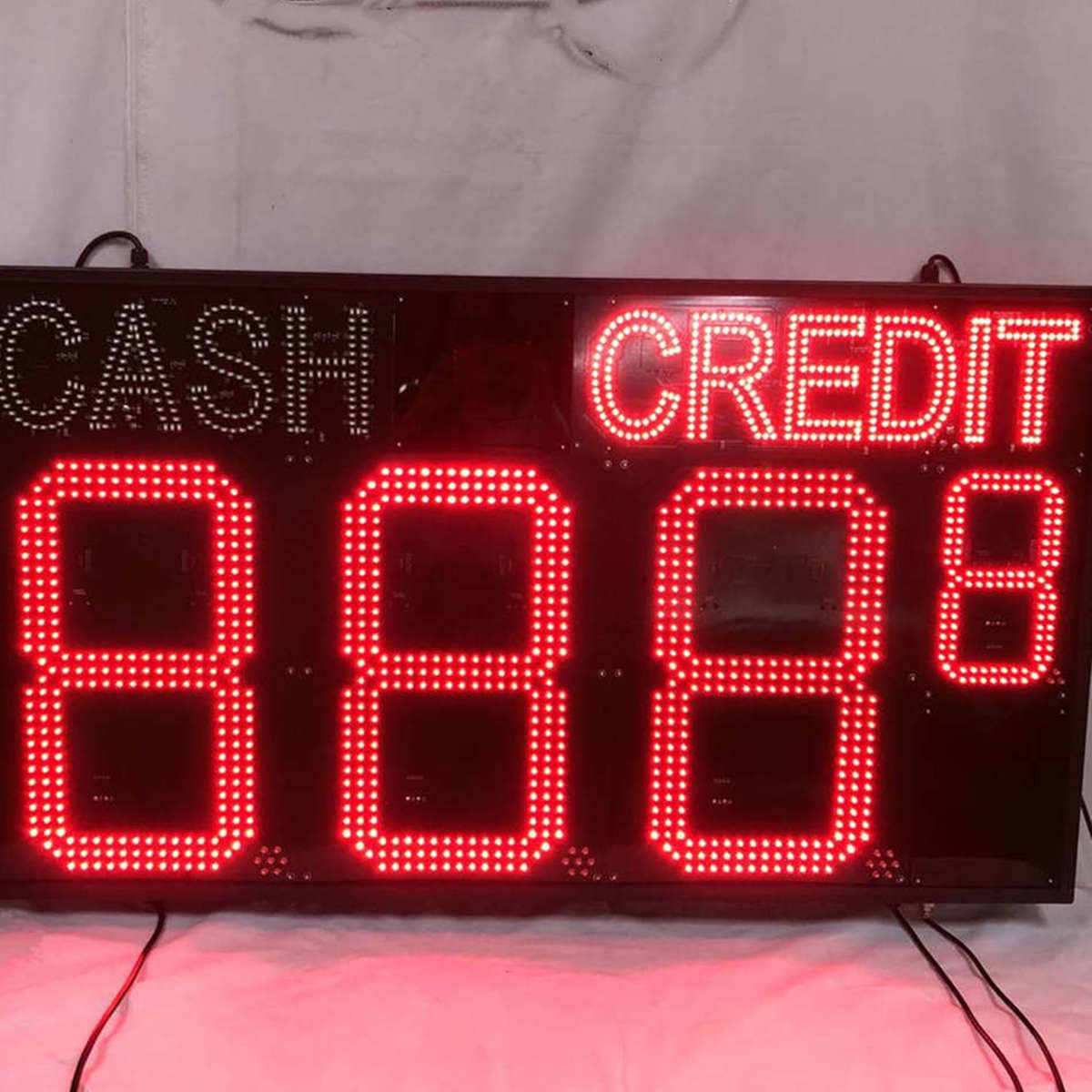

Custom led CREDIT display are aging test.
CREDIT Gas Signs Specifications:
*Led CREDIT signs model: GAS8514.
*Visibility: 50 m.
*Updated vervion:8.
*Led brightness:10000 mcd.
*PCB thickness:1.6 mm.
*Digit number styles:8.88.
*Energy consumption:50 W.
*Led viewing angle:120 degree.
*Low energy consumption.
*Humidity range:10-80%RH.
*Driver:constant current drive.
*Temperature range:-10 F-140 F.
*Power input:DC12 V or DC 15 V.
*1-year limited product warranty.
CREDIT gas signs Packaging Details:
Packaging:wooden case+EPE foam or carton+EPE foam.

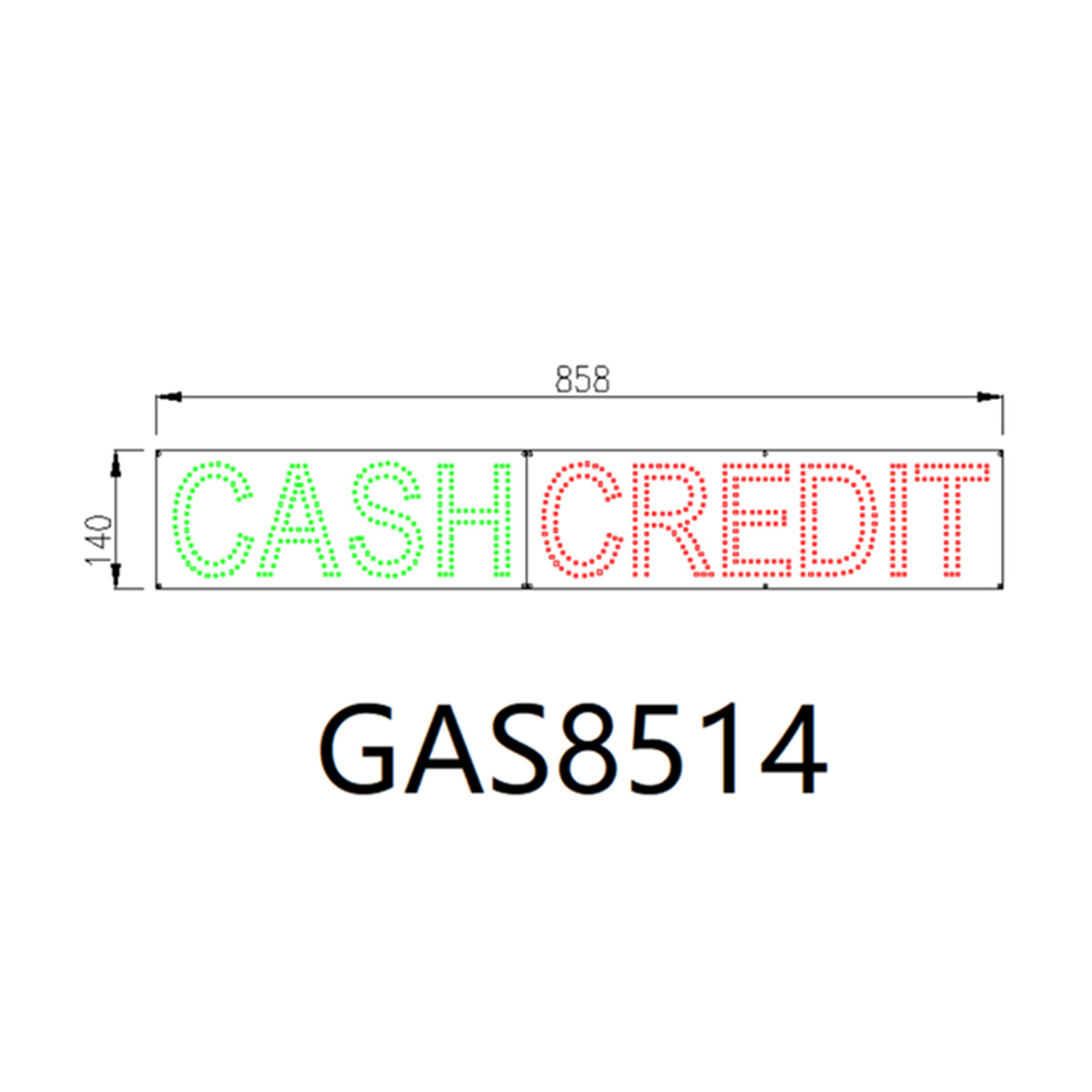

CREDIT digits size:858*140*3 mm.
Single net weight : 1.5 kg/pcs.
Outer package:920*45*20 cm.
Qty:10 pcs/ctn.
G.W:28 kg.
1CBM -100 pcs.
20' GP-2500 pcs.
40' GP-5000 pcs.
RF Remote Instruction of CREDIT Gas Signs
Note: 1.Before you operating, please press (button 8)
2. Press the button not too fast.
RF Remote Instruction of Modify Digit:
Step 1: Under the display working, press（button 3) and the first digit will begin to flash.
Step 2: Press（button 1), the flash digit will INCREASE by one.
Press（button 2), the flash digit will DECREASE by one.
Step 3: Press（button 4), the flash digit will shift to the next digit on the RIGHT.
Press（button 3), the flash digit will shift to the next digit on the LEFT.
Step 4: Press (button 5) to switch the digit.
Step 5: Press (button 6) to switch the dot.
Step 6: Press (button 7) to EXIT without saving.
Step 7: Press (button 8) to EXIT with saving.
RF Remote Instruction of Setting Brightness:
Step 1: Under the display working, press (button 5), all digits will begin to flash.
Step 2: Press (button 1), the sign become brighter; Press (button 2), the price sign become darker; "A” means auto brightness by CDS sensor.
Step 3: Press (button 7) to EXIT without saving.
Step 4: Press (button 8) to EXIT with saving.
Function of Button:
1 Digit-Up - (button 1): INCREASE by one.
2 Digit-Down-(button 2) : DECREASE by one.
3 Edit-(button 3):
Press one time to enter EDIT mode, and the first digit will begin to flash.
In EDIT mode：Press (button 3), the flash digit will shift to the next digit on the LEFT.
4 Shift-Right-(button 4):
The flash digit will shift to the next digit on the RIGHT, for each individual price signs.
5 Setting Brightness- (button 5) :
Press (button 5) to enter SET BRIGHTNESS mode and all digits will begin to flash.
In EDIT mode：Press (button 5), switch the digit
6 Switch-dot (button 6):
In EDIT model, press (button 6) to switch the dot.
7 Exit-(button 7):
Press (button 7) to EXIT without saving.
8 Confirm - (button 8):
Press (button 8) to EXIT with saving.
Thank you for using our led sign!
Warm tips: the following functions need to be operated by led CREDIT gas signs basic operators.
1. Set the number of digits:
Step 1: in the normal working mode, press keys 2 and 8 at the same time, and the last number will flash.
Step 2: press 1 and 2 keys to modify the required value, and shift through 4 keys.
Step 3: press key 8 to save and take effect.
2. Key test most
In the normal reality mode, press the S1 and S2 keys on the led sign controller at the same time to enter the key test mode. Press the S1 key alone to switch the following four test modes:
a) Maintenance mode: press S2 key once to switch between all on and all off
b) Static mode: manually switch the display by pressing key S2: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "0." "1." "2." "3." "4." "5." "6." "7." "8." "9." "A"
c) Automatic switching display: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "0." "1." "2." "3." "4." "5." "6." "7." "8." "9." "A" .The switching speed can be adjusted by pressing S2 key.
d) Digital flow display: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "0." "1." "2." "3." "4." "5." "6." "7." "8." "9." "A" ,The flow speed can be adjusted by pressing S2 key.
Press the S1 and S2 keys on the gas sign control card at the same time to exit the factory test mode.
Frequently Asked Questions:
1.What are the lead times from led CREDIT gas price signs factory?
Upon payment, we will eventually process your order. However a lead time of 16 days is required.
2.What do the led CREDIT gas signs come with?
Our CREDIT display come with everything you need to operate such as a control box, cables, and remote.
3.What is the warranty policy should the led CREDIT gas signs arrive damaged?
We are pleased to offer our convenient warranty policy.
4.What color do these CREDIT signs come in?
The CREDIT gas signs are usually available in colors of red, green, yellow and white.
5.What sizes do these led CREDIT gas signs come in?
The size of the digit is determined by the letter's height. We offer screens from 8" up to 48".
6.What formats do these CREDIT signs come in?
The signs formats are available in 8.88, 8.888, 8.889/10 and 8.88 8/8.
7.How long do led CREDIT signs last?
Our price CREDIT signs can last an average of 6 years.
8.Can you keep them on all day or night? And if so, will it affect the longevity?
Yes, you can keep them on 24/7 without affecting the longevity.
9.How to install the led CREDIT gas signs?
Please click here to see Installation diagram.
10.Can I get a different combination of CREDIT board than what appears on the website?
Yes, please fill out our custom request form for a custom quote if you need different sizes or combinations of colors.
11.How do you pack the signs in led CREDIT gas signs factory?
We pack with utmost care to prevent breakage during shipping. Please refer to how we pack for more details.
12.Can you provide the solution of accessory from factory?
Yes,we can.We are a professional CREDIT boards factory.
13.Can you provide finished product solution for exhibition or bid?
Yes,we can,please refer the website,but the the lead time is longer.
14.Can you provide the CREDIT board as the size of costuming?
HIDLY is a profession led CREDIT gas signs factory to produce CREDIT gas signs , our main markets are in America, Europe, Australia, Middle East and Southeast Asia. We manage our factory on comparatively higher modern production level with a consummate quality guarantee system, ensuring our products with high quality to follow the new trends of domestic and foreign markets;If you want custom CREDIT boards, please contact us or have a question or comment? We want to hear from you!
led CREDIT gas signs factory located in East Floor 3 Of No.13, Dongqu Road, Xiangxi Village, Liaobu Town, Dongguan,Guangdong, China.
