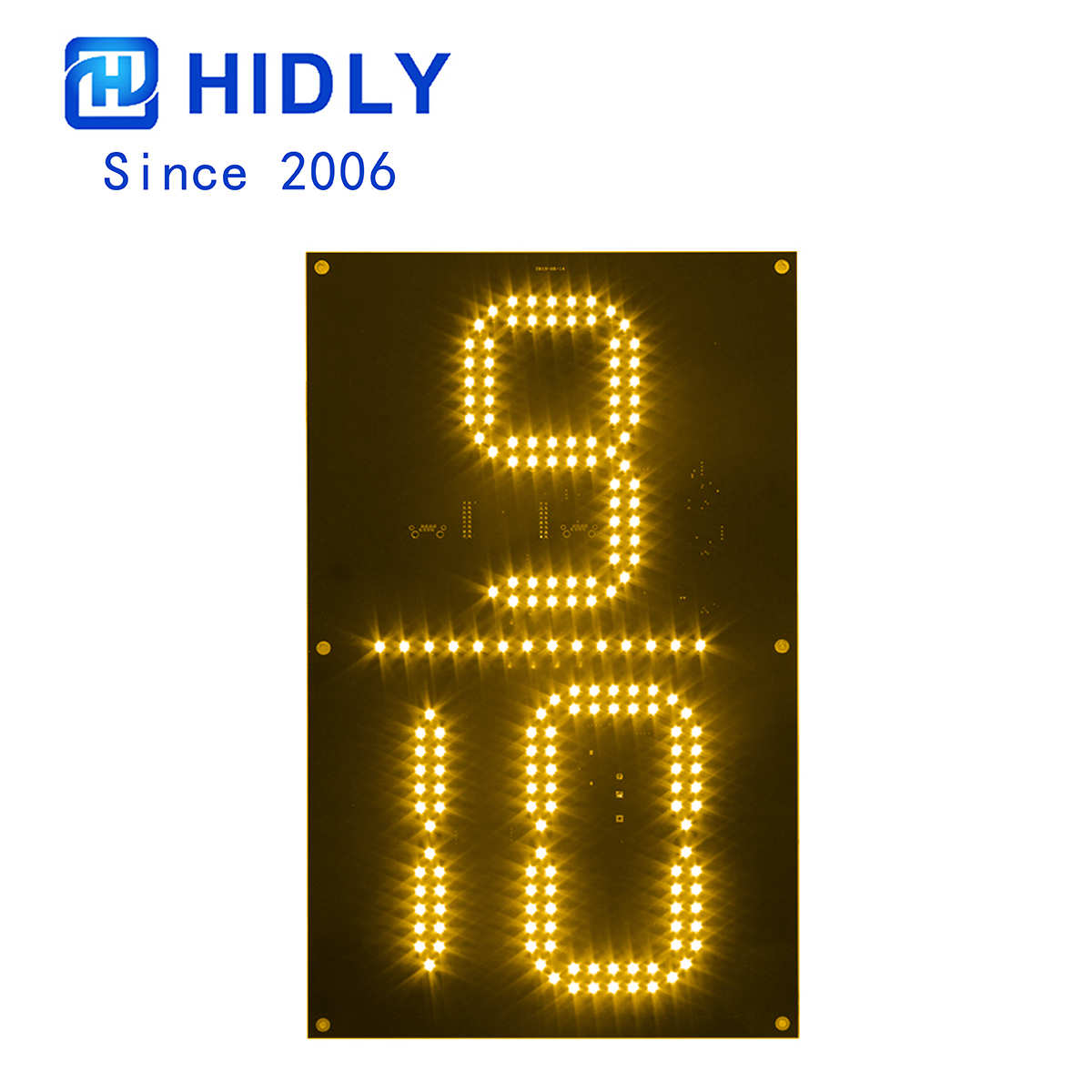

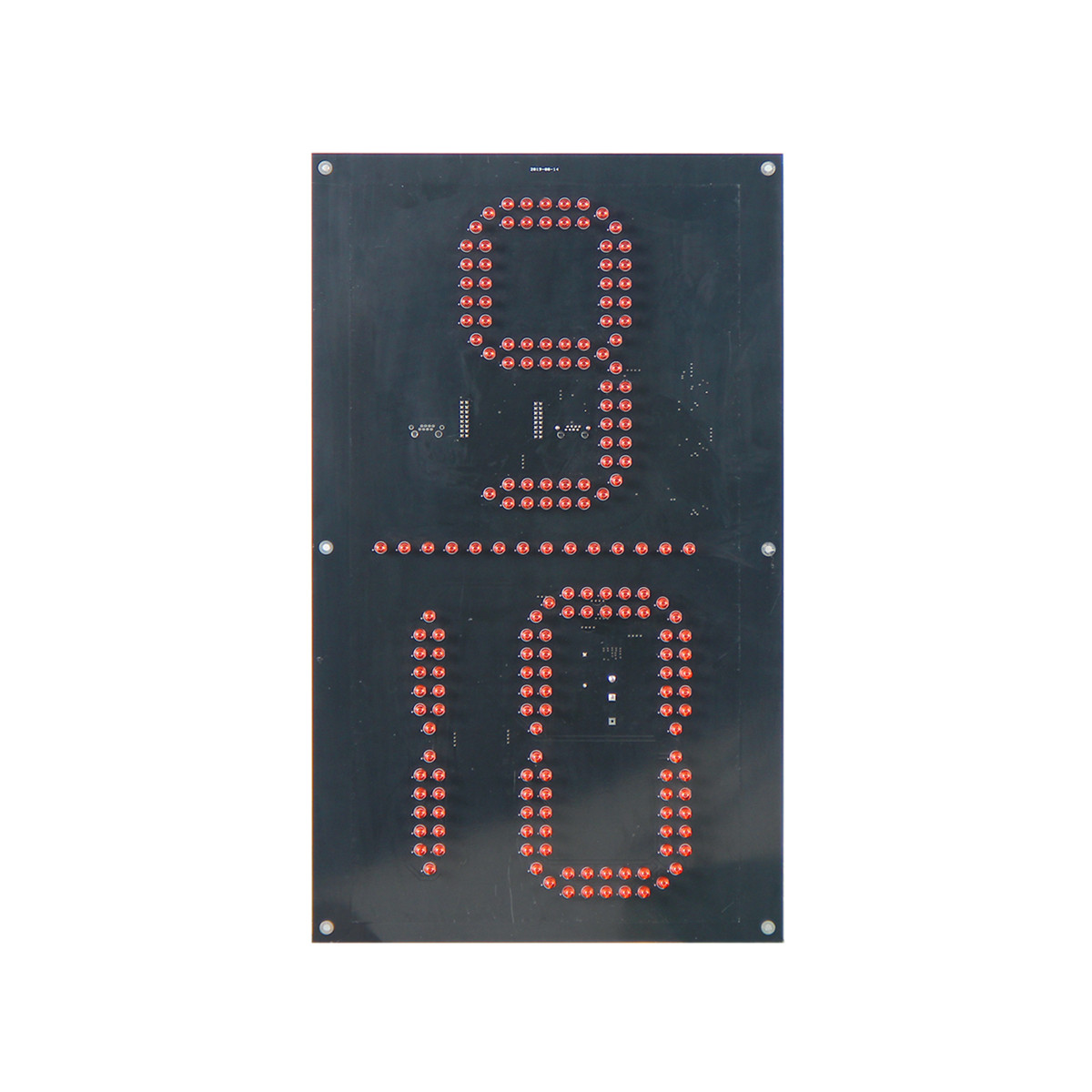

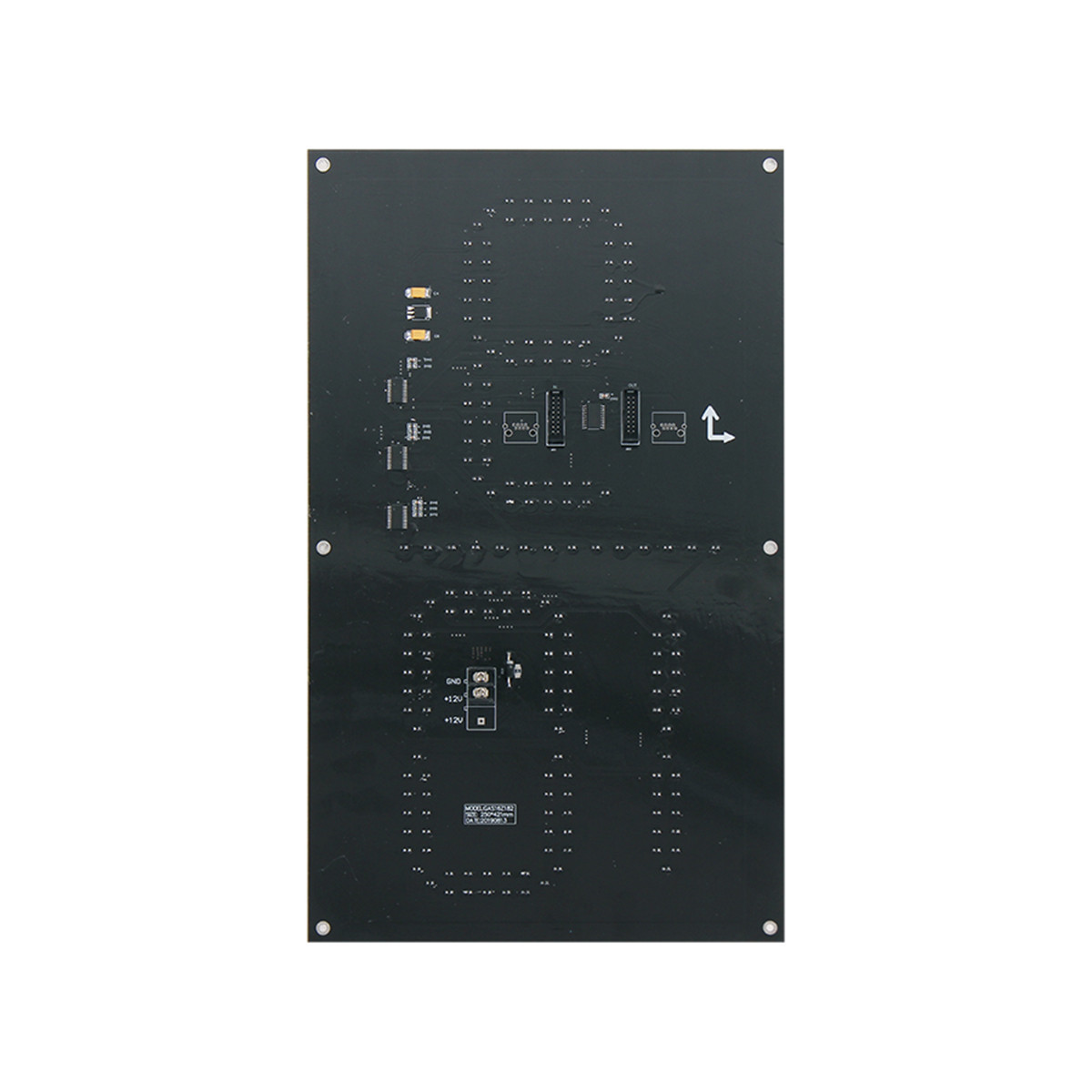

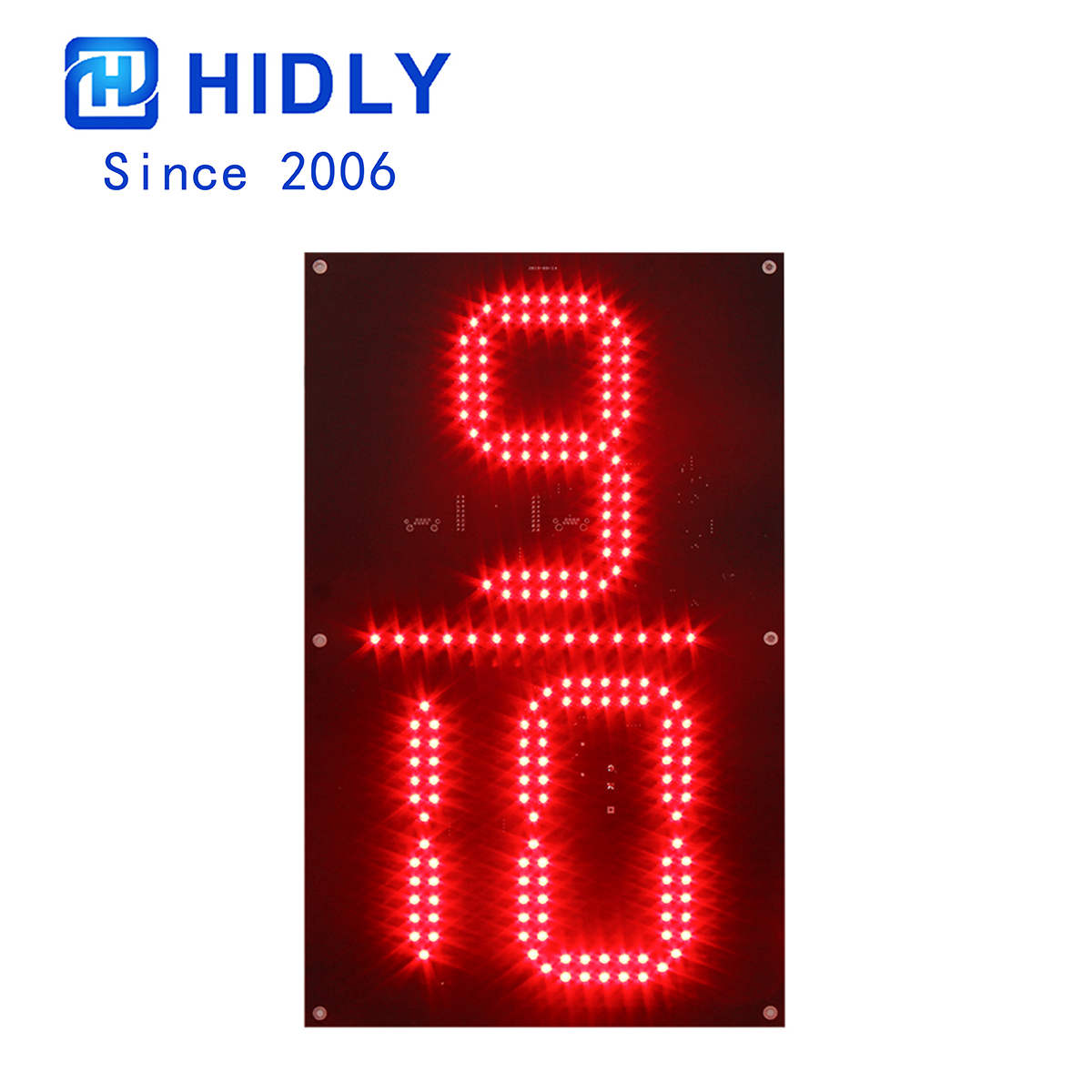

GAS STATION BOARD GAS16Z182
16 Inch gas station board can be the preferred method of advertising for your company's service station. Consumers will almost certainly pick your store rather than the competitors. 9/10 gas station board have proven to be eight times more advantageous in comparison to printed signs. Incorporate a CASH / CREDIT alternative to your led sign to draw much more business. Your brand-new signs can certainly help carry your business in places you are trying to go.
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Why HIDLY Gas Station Board?(9/10 Gas Station Board Advantages):
*Multiple digit heights available 4"-48".
*Light weight: allows for an easy installation.
*Reduce liability concerns from manual price changing.
*Industrial grade connectors: help prevent faulty contacts.
*9/10 led station board help your business grow more quickly.
*All board are tested and rated to work at least 100,000 hours.
*Available led colors: red, green, blue, yellow, white and amber.
*No extra cost or labor work for updating the 9/10 gas station board.
*9/10 gas station board get your customers attention from as far as 300 meters.
*High efficiency: the lowest energy consumption of any gas digit product to date.
*Double your sales with bright, high quality and long-lasting 9/10 gas station board.
*Made for easy mounting: brackets created for easy to mount on existing structure.
*120 degree viewing angle allows for an increased viewing time over the competition.
*Simple to setup: ready to use out of the box (plug and play easy to install and operate).
*Automatic light sensors: detects and adjusts the correct intensity for daytime or night time use.
*User friendly remote:update the 9/10 gas station board sitting in your store with the remote controller.
*Environmentally friendly: no mercury, making them a cleaner alternative to fluorescent and CFL displays.
*Led designed specifically for traffic:technology to prevent glare or reflection for an easier to ready board.
*Intelligent temperature control maintains safe operation temperatures to make custom signs last as long as possible.
*Be noticed first,from a very far distance,this is a onetime investment that will lead to a steady growth in your business.
*Brightness can be set from remote control or can be set to "Auto" for automatic brightness changes between night and day.

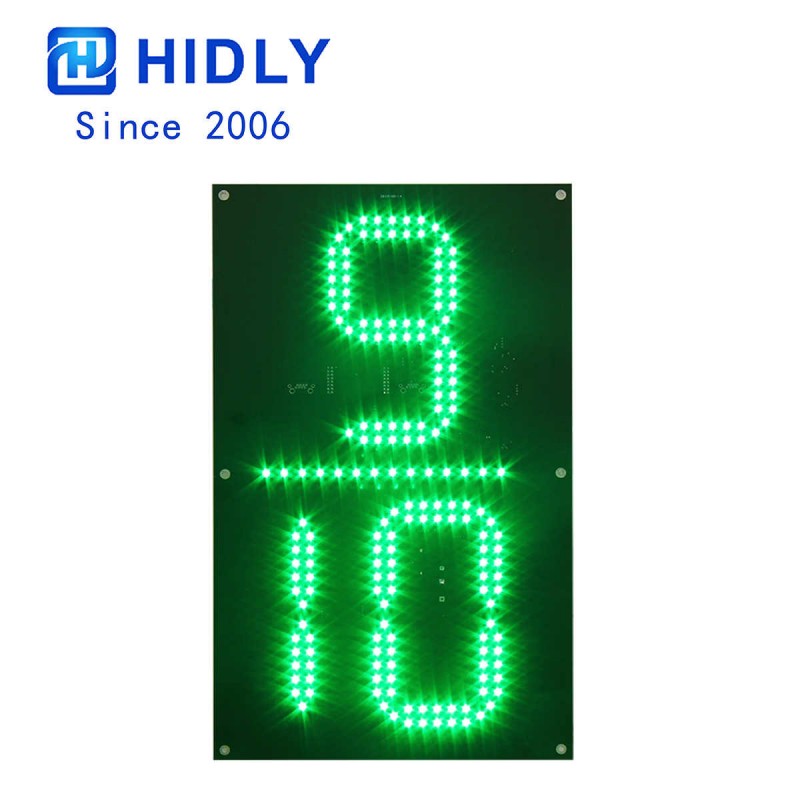

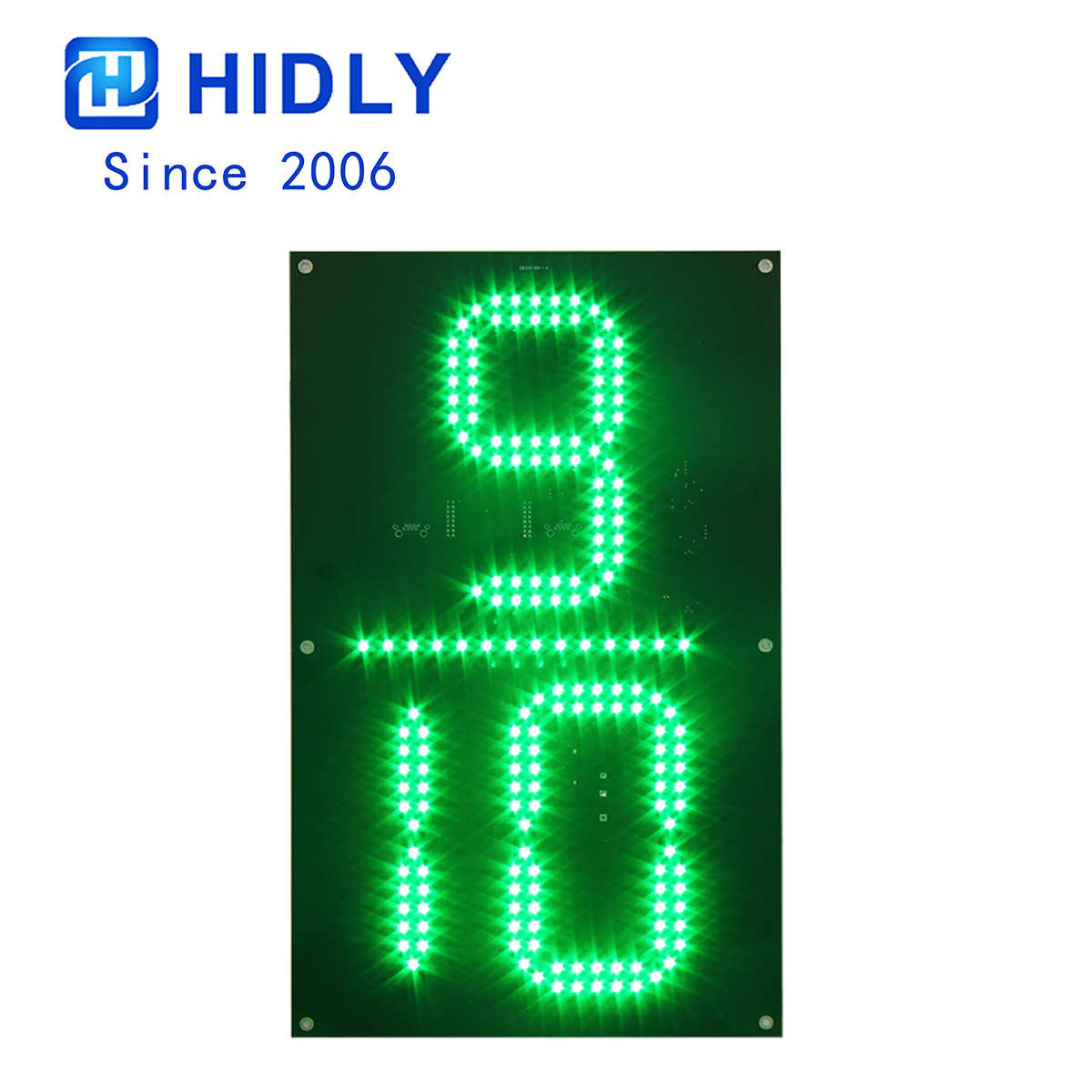

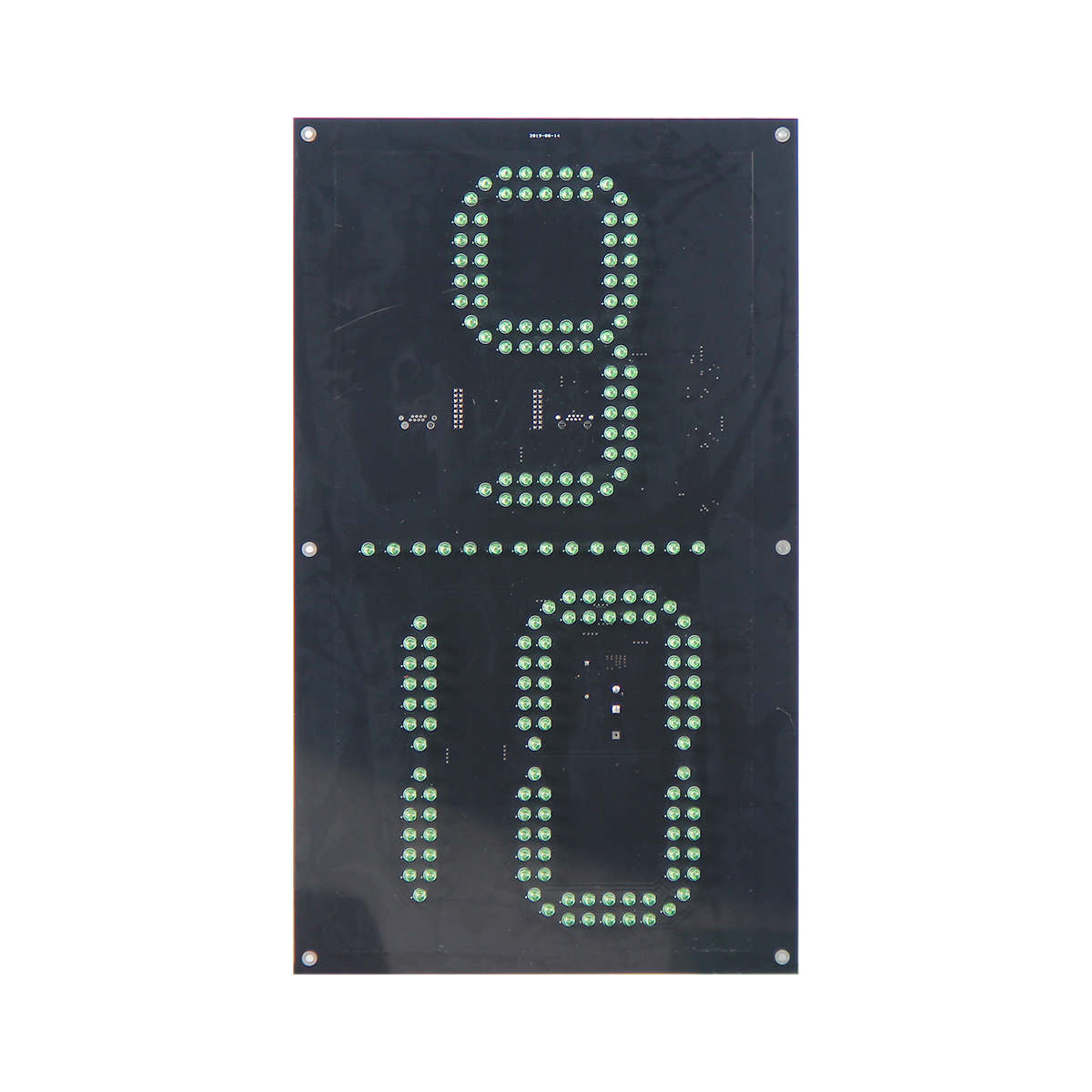

9/10 green gas board.

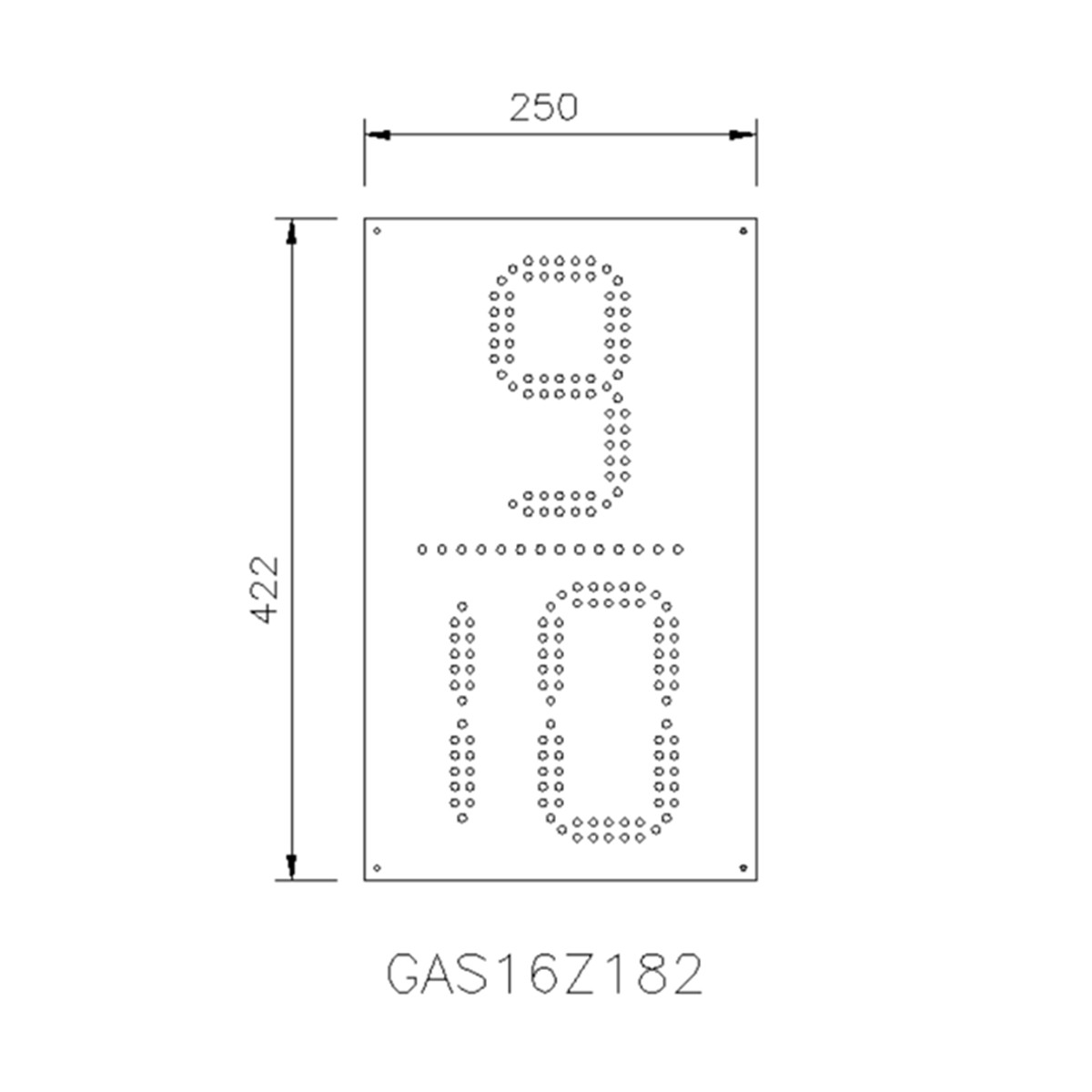

9/10 gas board dimensional drawing.

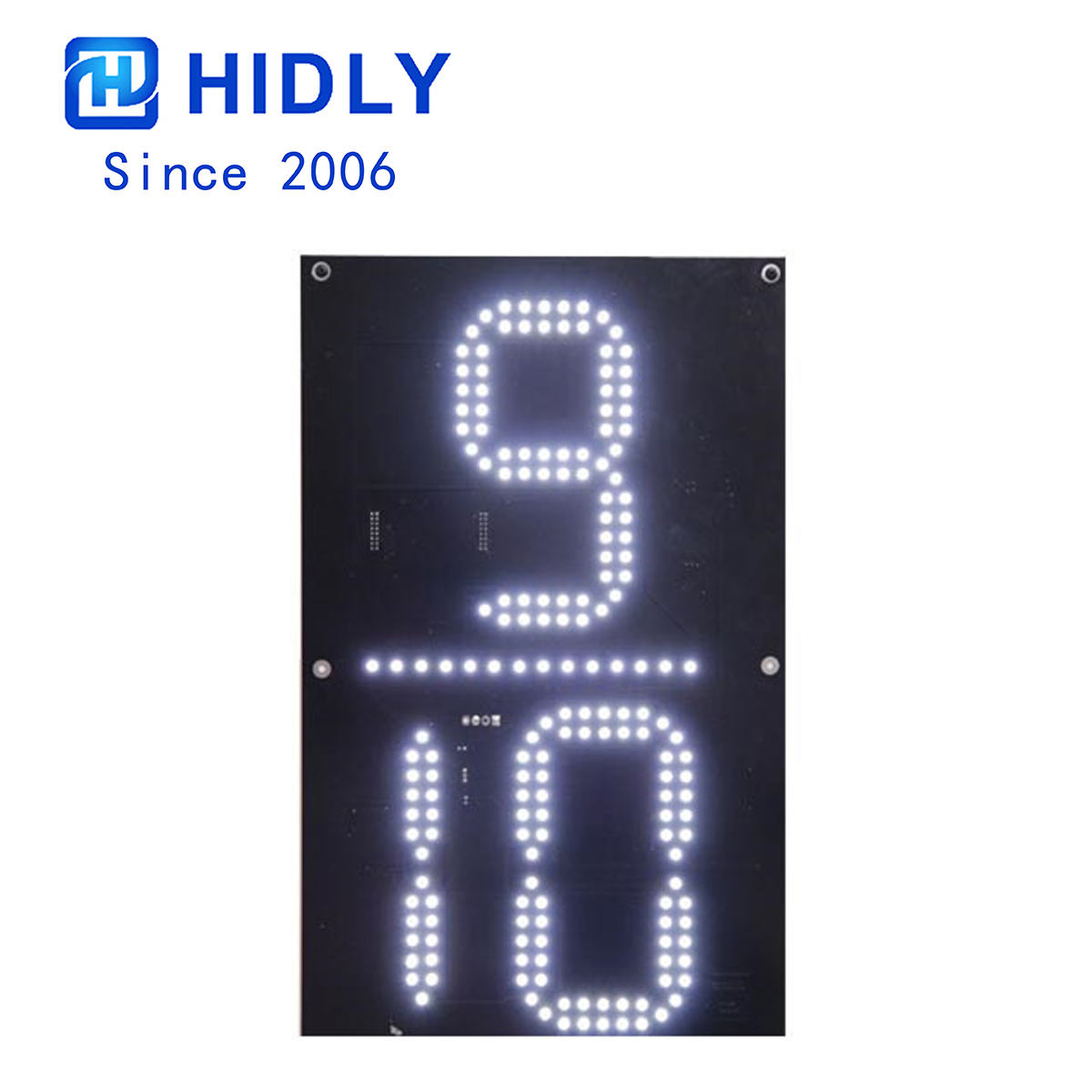

9/10 white board are aging test.
Price boards are aging test.
16 Inch Gas Station Board Specifications:
Board size: 422*250 mm.
Gas sign led type:dip.
Visibility:800 m.
PCB material:FR4.
Updated vervion:8.
Power input:DC12 V.
Brightness:10000 mcd.
PCB thickness:1.6 mm.
Energy consumption : 16 W.
Viewing angle:120 degree.
Driver:constant current drive.
Humidity range:10-80%RH.
Temperature range:-10F-140F.
Light sensor with automatic dimming.
Digit number styles:8.888 8.889 8.88 9/10.
Reduce liability concerns from manual price changing.
Easy installation, with quick power and signal connections.
Available in colors like red, green, yellow,white,blue,amber.
Wireless remote control with up to 300 feet direct line of sight.
Packaging:wooden case+EPE foam or carton+EPE foam.
2-year limited product warranty.
Custom gas station board Packaging Details:
Single net weight:0.6 kg /pcs.
Outer package:65*47*32 cm.
Quantity:20 pcs /ctn.
Gross weight: 20 kg.
1CBM-220 pcs;20' GP-6000 pcs; 40' GP-12000 pcs.
RF Remote Instruction of Gas Board
Note: Thank you for using our gas station board!
1.Before you operating, please press (button 8).
2.Press the button not too fast.
How to modify the led gas station board:
Step 1: Under the display working, press（button 3) and the first digit will begin to flash.
Step 2: Press（button 1), the flash digit will INCREASE by one.
Press（button 2), the flash digit will DECREASE by one.
Step 3: Press (button 6) to switch the dot; press (button 7) to switch the digit.
Step 4: Press (button 4), the flash digit will shift to the next digit on the RIGHT.
Press（button 3), the flash digit will shift to the next digit on the LEFT.
Step 5: Press (button 8 ) to save all programming.
How to Set Brightness:
Step 1: Under the display working,press (button 5), all digits will begin to flash.
Step 1:Press (button 1),the sign become more bright; Press (button 2),the price sign become darker; "A"means auto brightness by CDS sensor.
Step 3: Press (button 8) to save all programming.
How to Set the Digit Flashing:
Step 1: Press (button 6), all the digits change the same: 0(still),1(fast),2.3.4.5.6 (slow).
Step 2: Press (button 1), the flash speed will INCREASE by one.
Step 3: Press (button 2), the flash speed will DECREASE by one.
Step 4: Press (button 8) to save all programming.
Function of button:
1 Digit-Up -(button 1): The Flashing Digit on the Price Sign will INCREASE by one.
2 Digit-Down-(button 2) : The Flashing Digit on the Price Sign will DECREASE by one.
3 Edit-(button 3) :
Press 1 time to enter EDIT mode, and the first digit will begin to flash.
In EDIT mode:press (button 3), the flash digit will shift to the next digit on the LEFT.
4 Shift-Right-(button 4) :
The flash digit will shift to the next digit on the RIGHT,for each individual price sign.
5 Setting Brightness- (button 5) :
Press (button 5 ) to enter SET BRIGHTNESS mode, and all digit will begin to flash.
6 Switch-dot;all flash model(button 6) :
In EDIT model,press (button 6 )to switch the dot. Under the display working, press (button 6) to set flash speed.
7 Switch-digit-(button 7) :
Press button (button 7) to switch the digit.
8 Confirm - (button 8) :
Press (button 8) to save all programming.
Frequently Asked Questions:
1.What are the lead times for 9/10 gas station board?
Upon payment, we will eventually process your order. However a lead time of 7 days is required. Because haste makes waste, we give our team enough time to bring about personalized price screen for you.
2.What do the 9/10 gas station board come with?
9/10 gas station board come with everything you need to operate such as a control box, cables, and remote.
3.What is the warranty policy should the led gas station board arrive damaged?
We are pleased to offer our convenient warranty policy.
4.What color do these gas station board come in?
The 9/10 digits are usually available in colors of red, green, yellow,white,amber and blue.
5.What sizes do these gas station board come in?
The size of the digits is determined by the letter's height. We offer screens from 8" up to 72". Please refer to sizes for information. Also, do not forget that you can customize your order with the help of our price led digit board form.
6.What formats do these gas station board come in?
The formats are available in 8.88, 8.888, 8.889/10 and 8.88 8/8,Allow our customer service support to help you find the right regional format that you need.
7.How long do the 9/10 gas station board last?
9/10 gas station board can last an average of 6 years.
8.Can you keep them on all day or night? And if so, will it affect the longevity?
Yes, you can keep them on 24/7 without affecting the longevity.
9.How to install the 16 Inch 9/10 gas station board?
Please click here to see Installation diagram.
10.Can I get a different combination of screens than what appears on the website?
Yes, please fill out our custom request form for a custom quote if you need different sizes or combinations of colors.
11.How do you pack the 16 Inch gas signs?
We pack with utmost care to prevent breakage during shipping. Please refer to how we pack for more details.
12.Can you provide the solution of accessory?
Yes,we can.We are professional in gas station board.
13.Can you provide the led gas station board as the size of costuming?
Yes,we can. If you want custom please contact us.
HIDLY is a profession manufacturer to produce 16 Inch gas station board , our main markets are in America, Europe, Australia, Middle East and Southeast Asia. HIDLY manage our factory on comparatively higher modern production level with a consummate quality guarantee system, ensuring our products with high quality to follow the new trends of domestic and foreign markets;If you want custom please contact us or have a question or comment? HIDLY want to hear from you!
