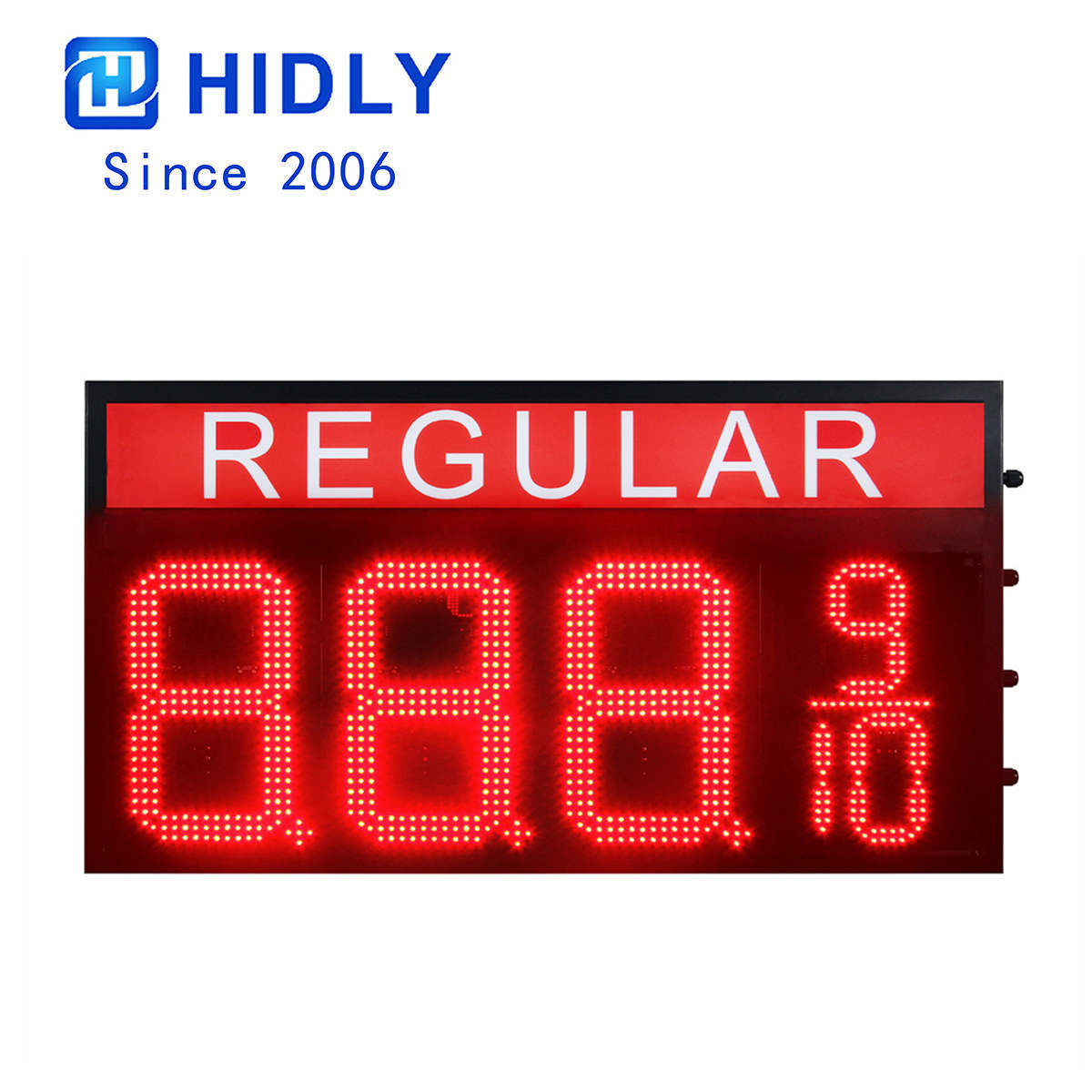

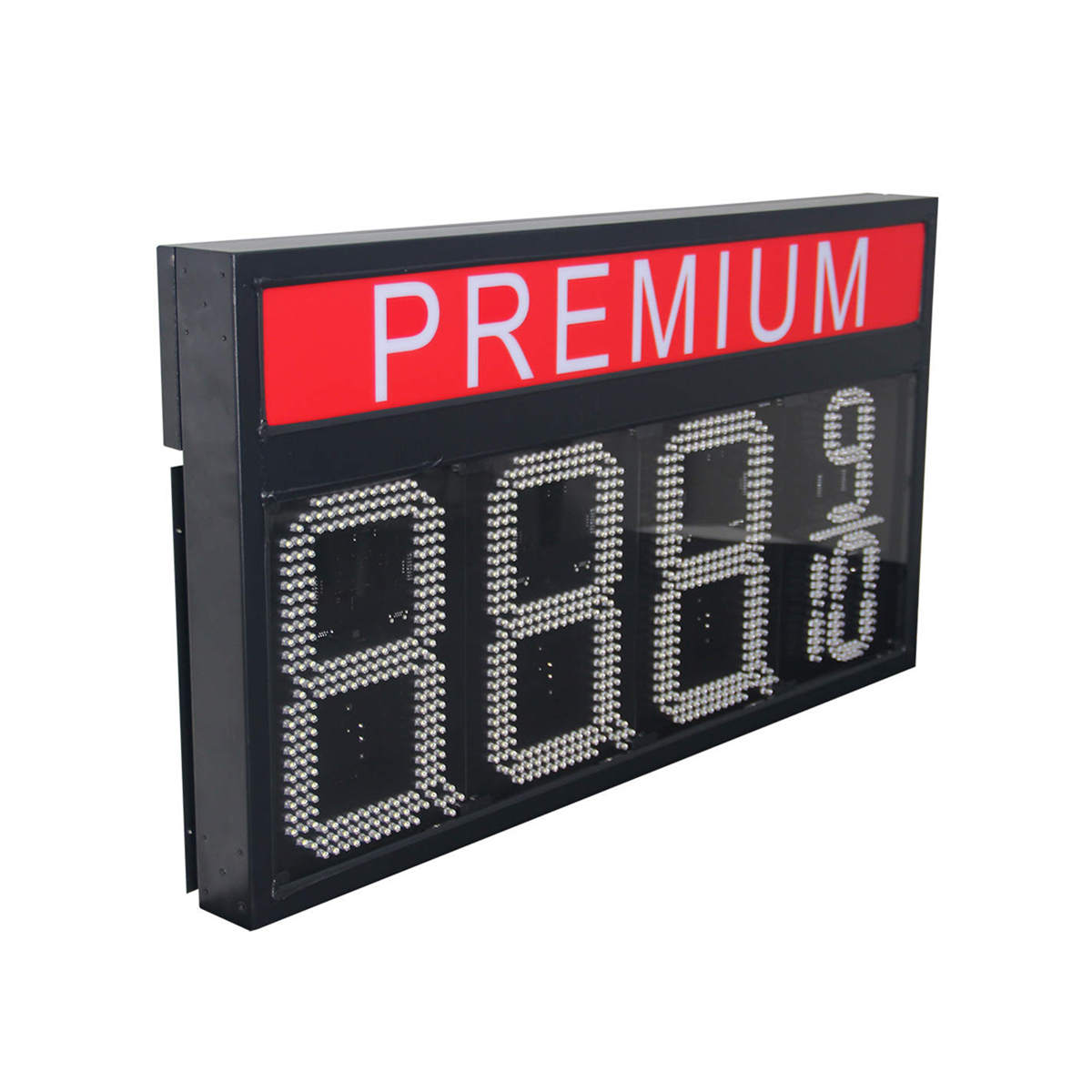

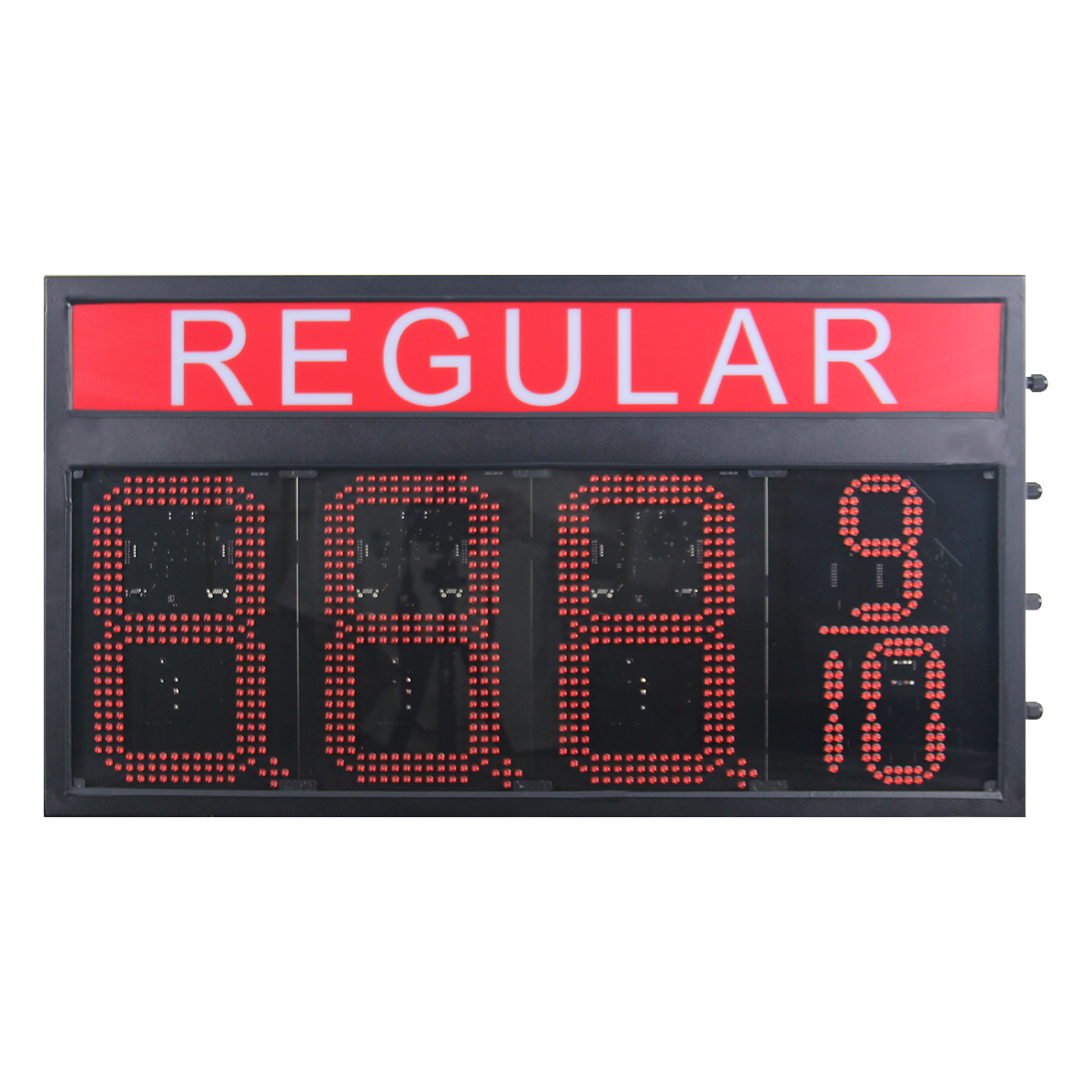

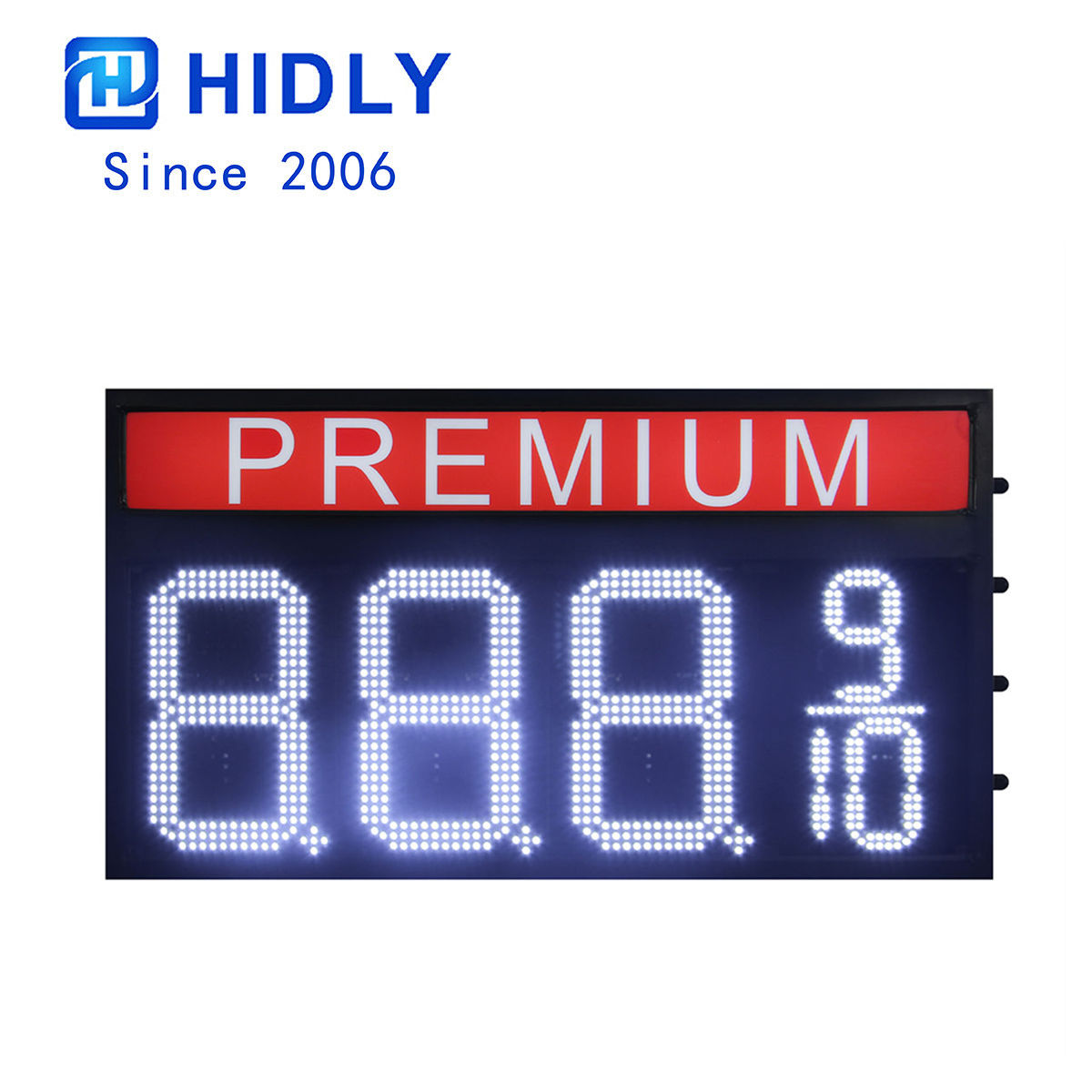

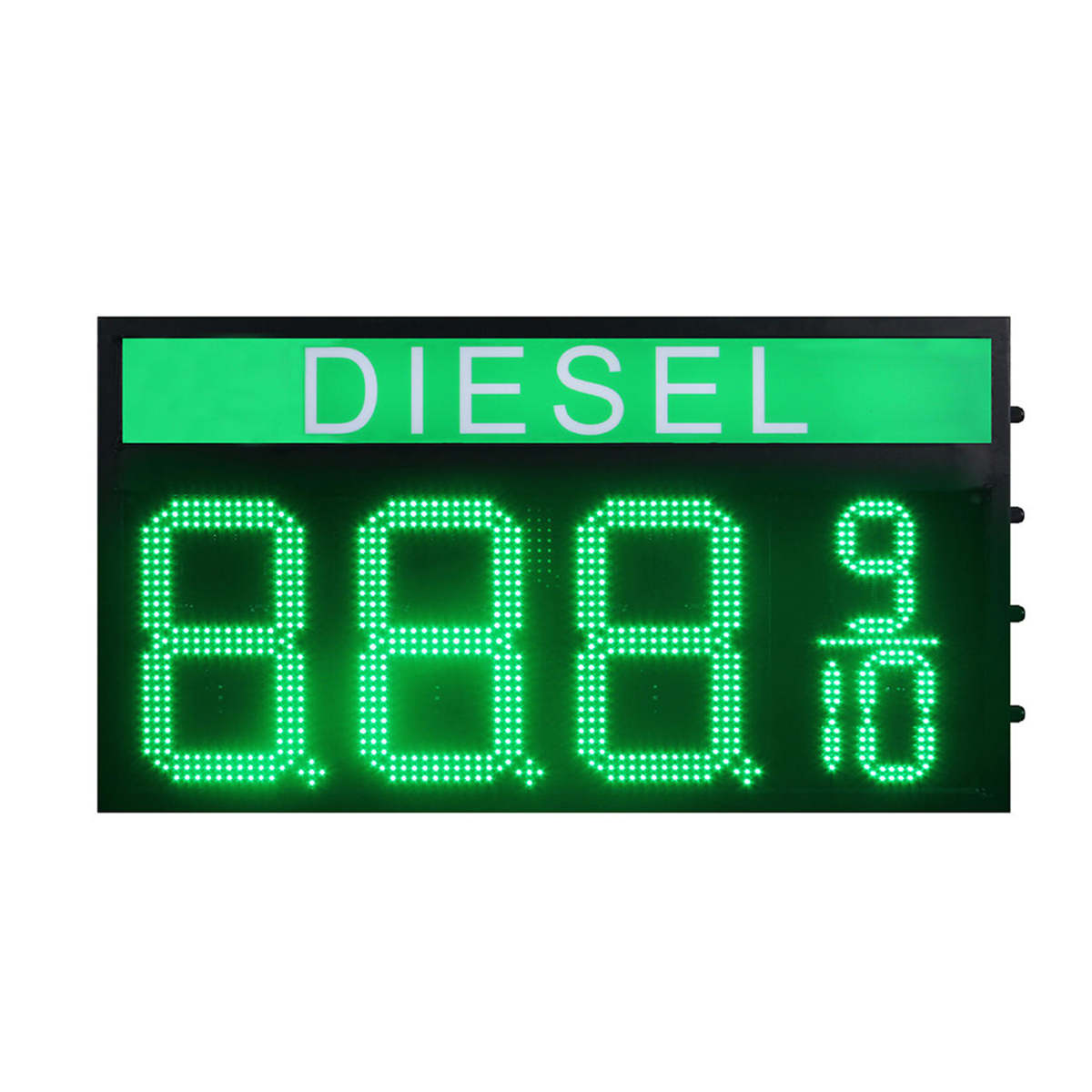

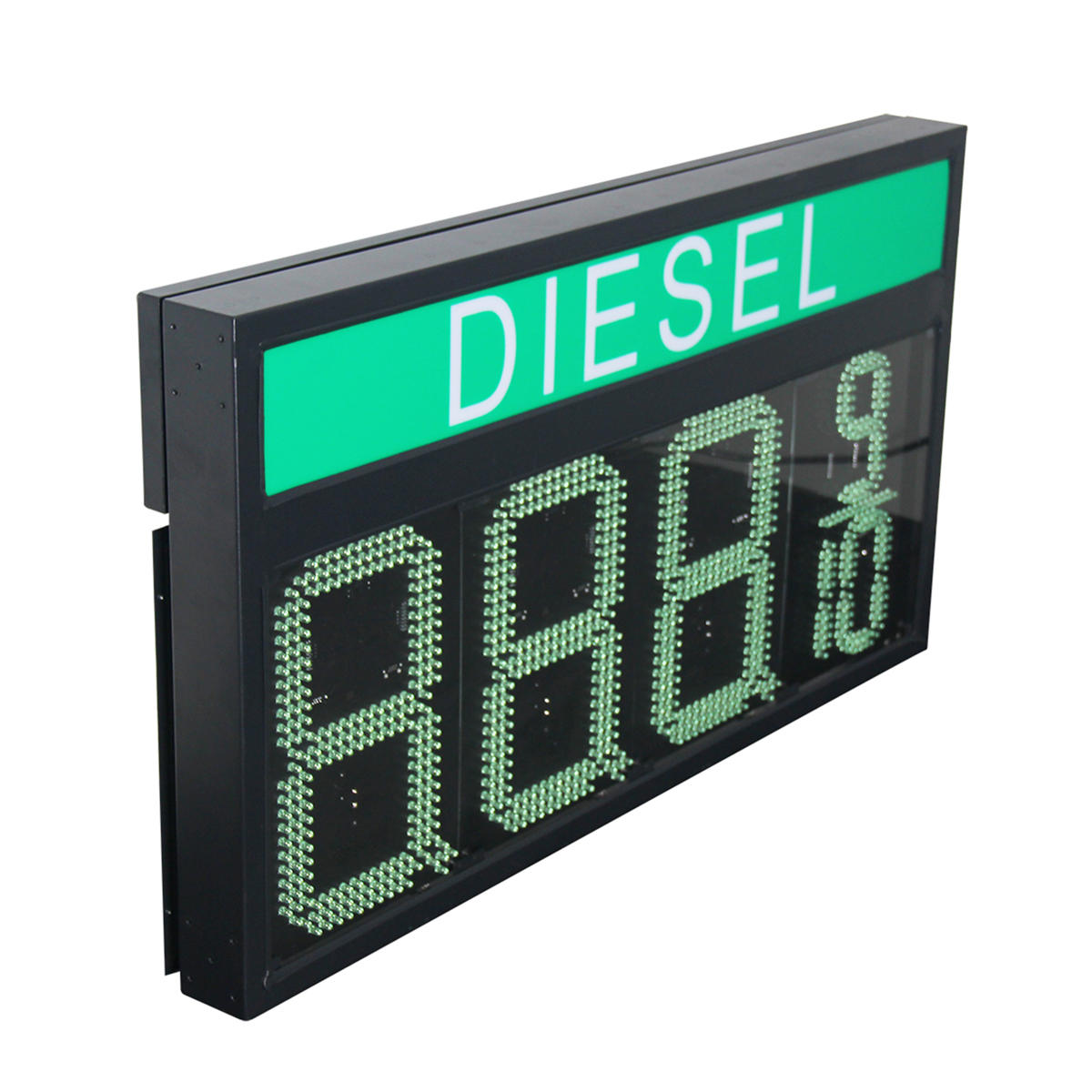

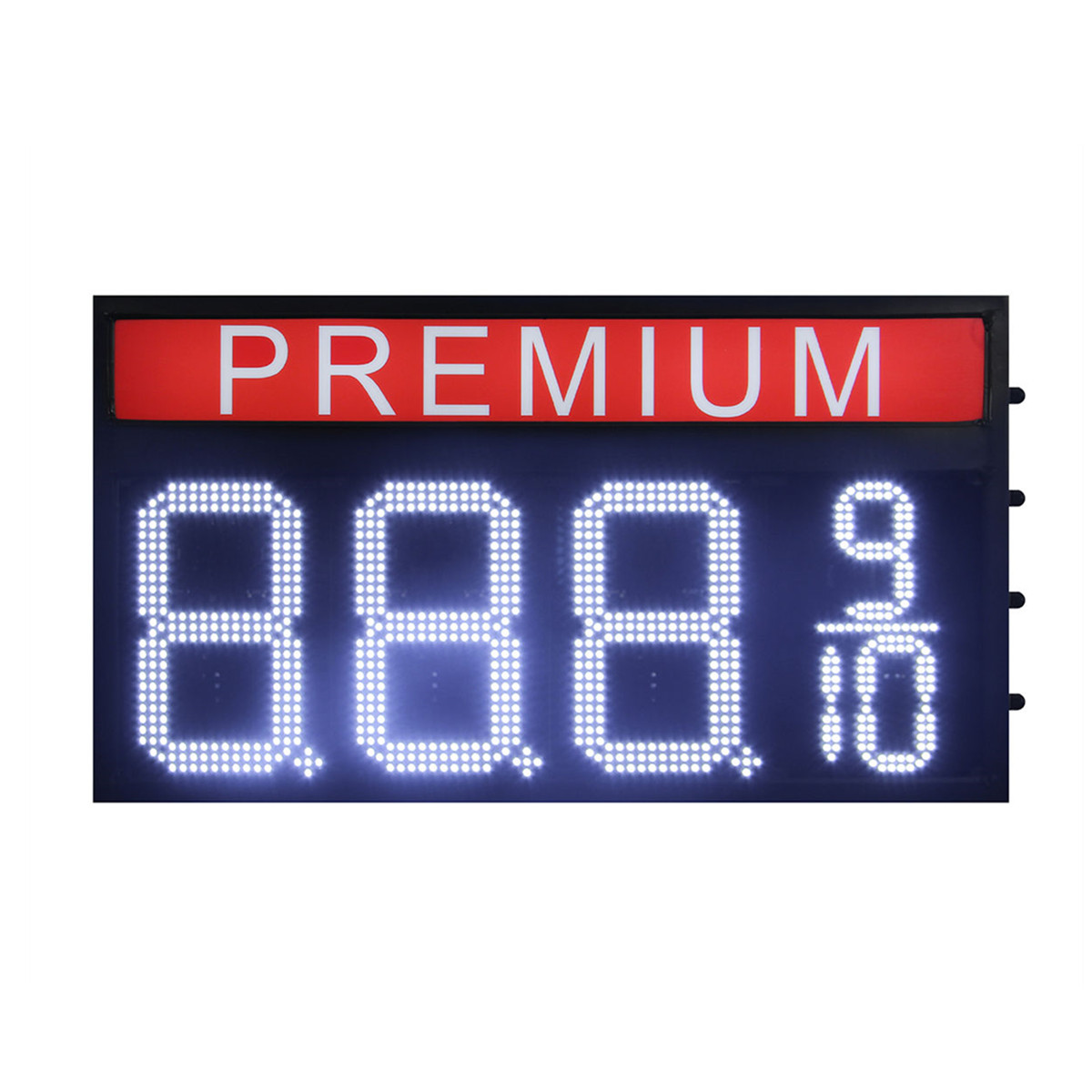

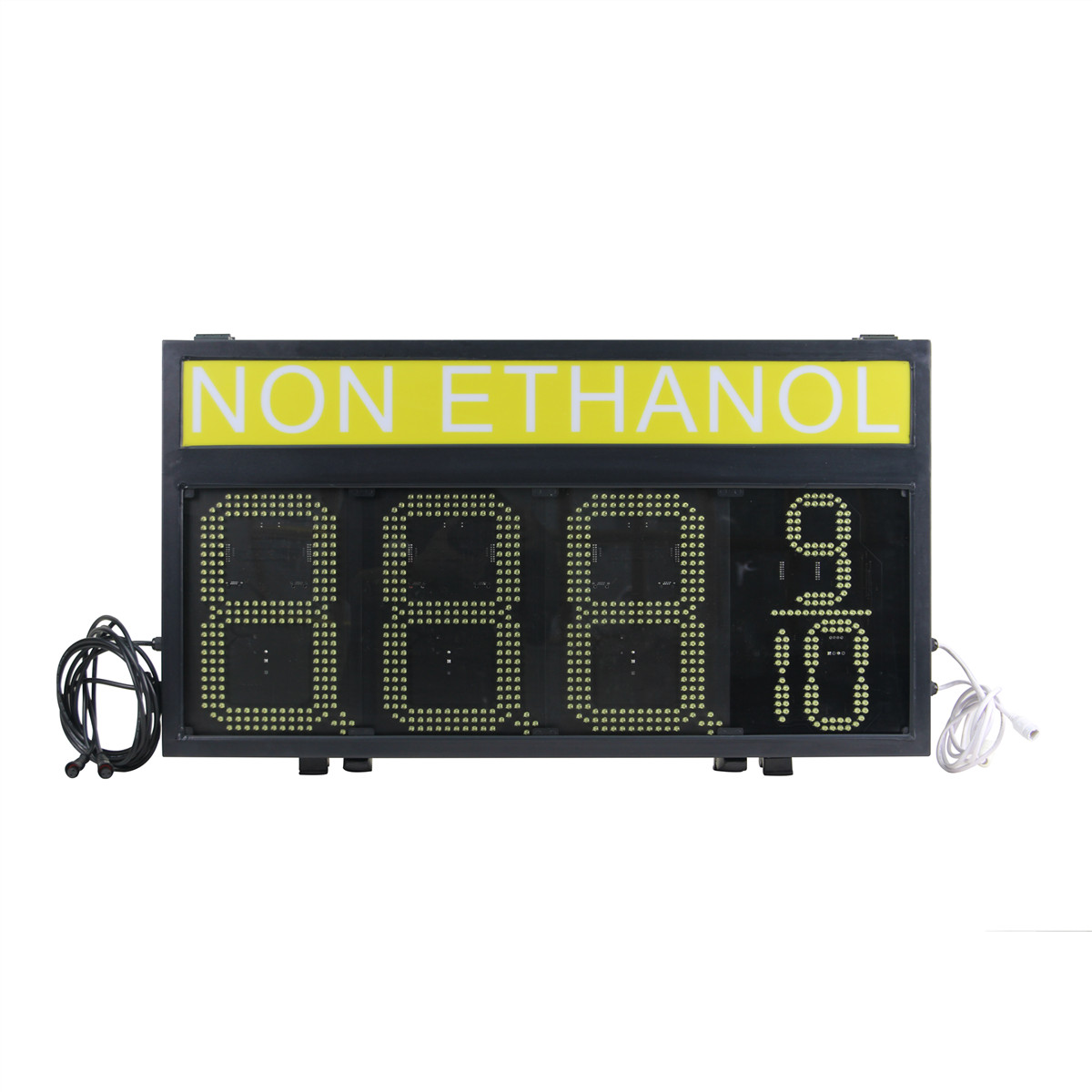

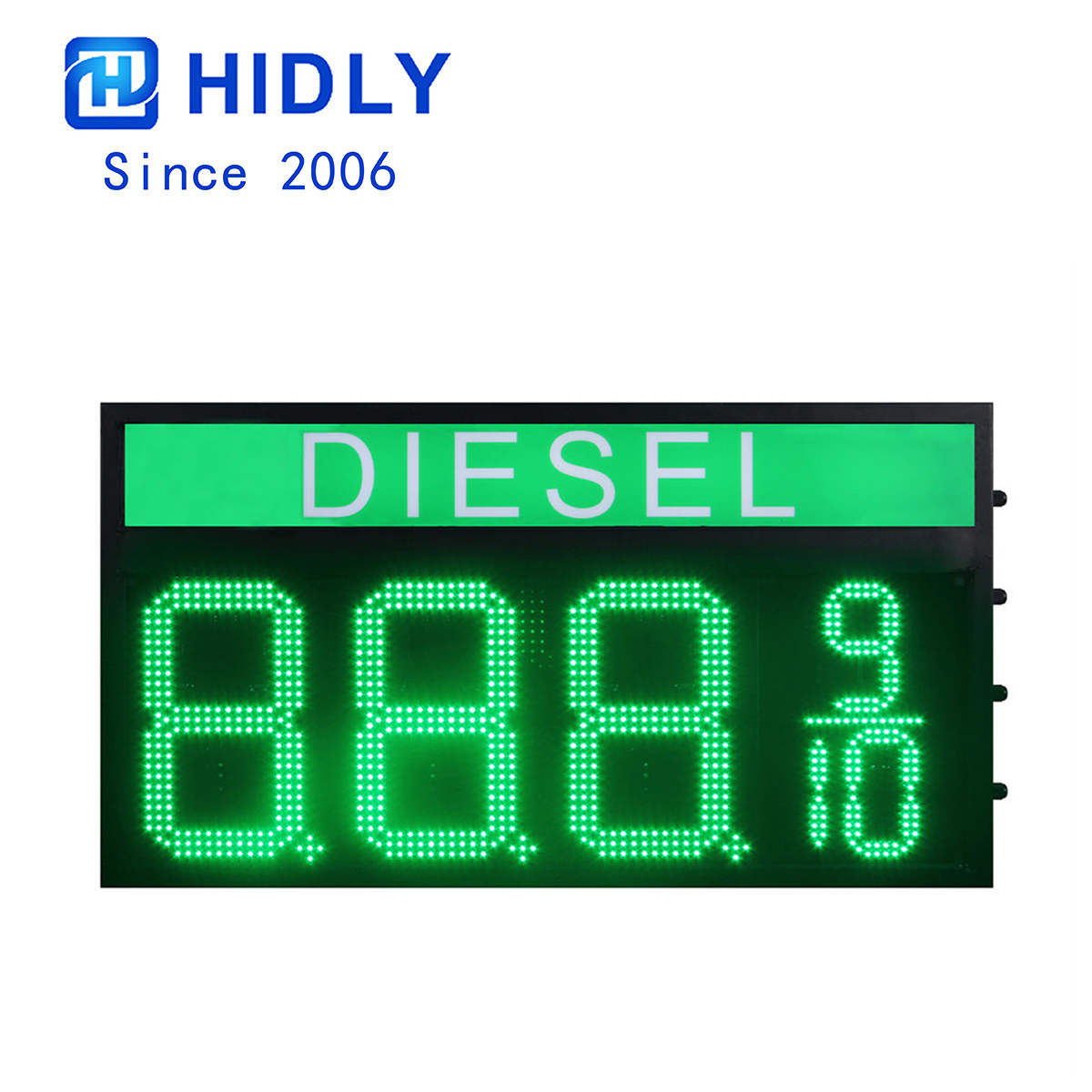

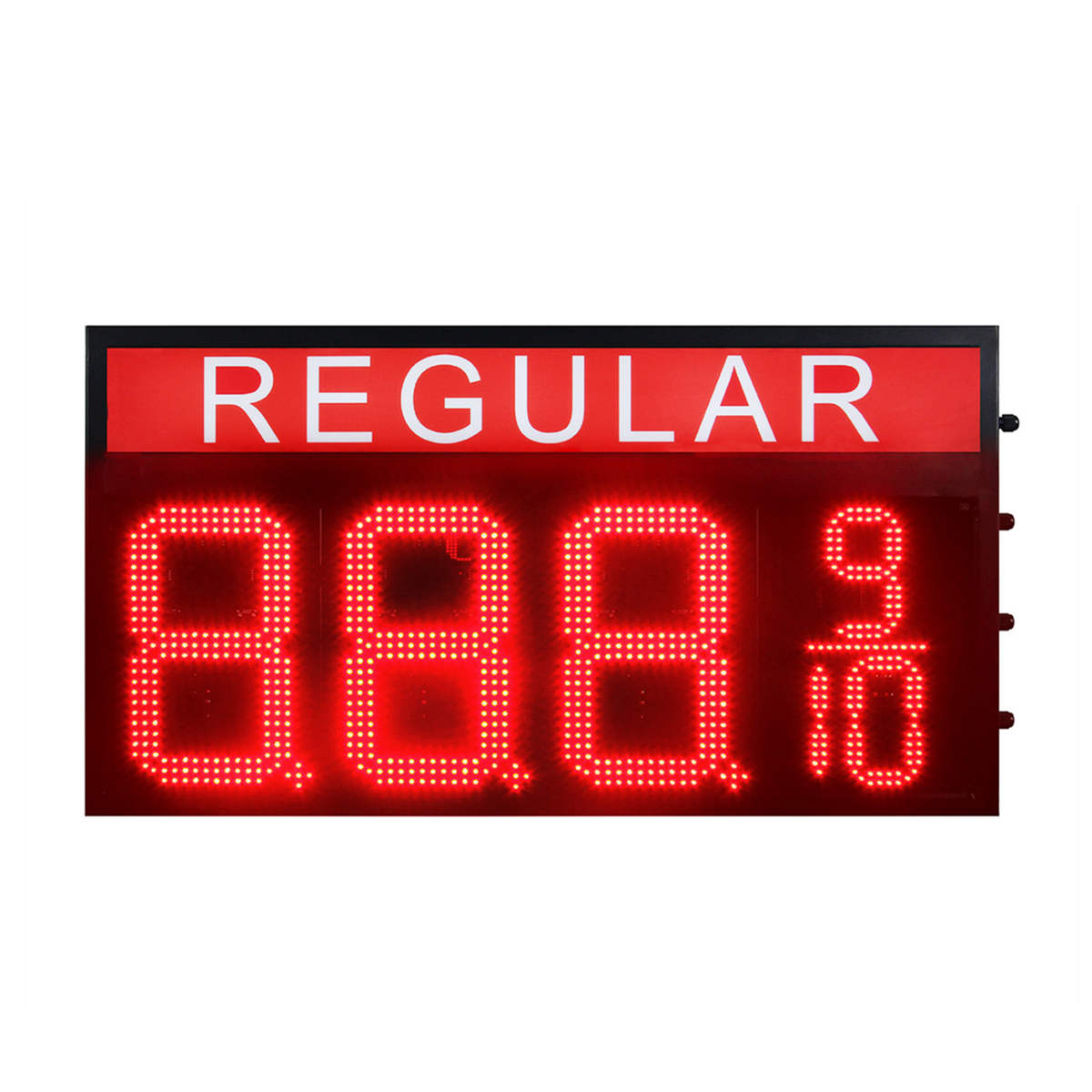

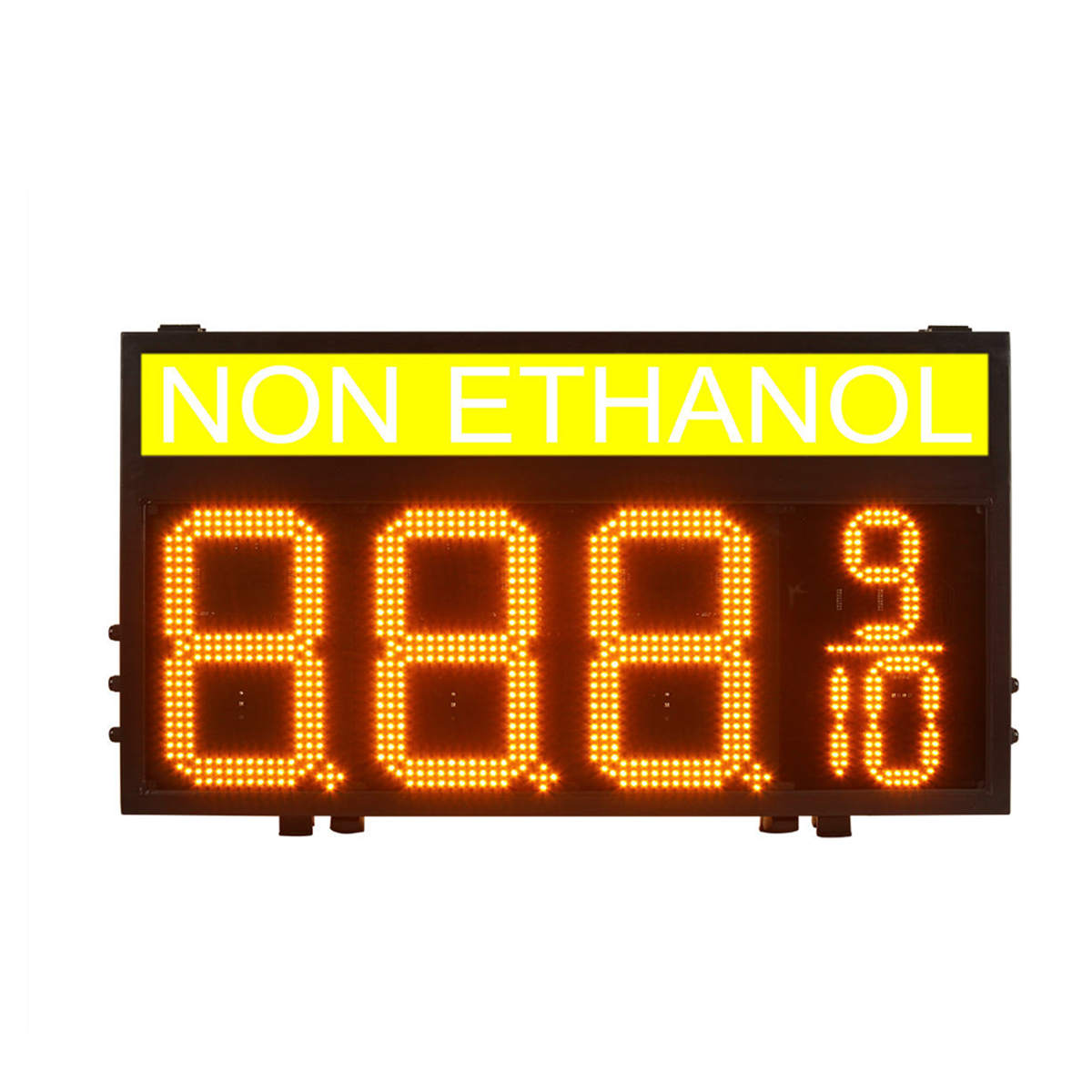

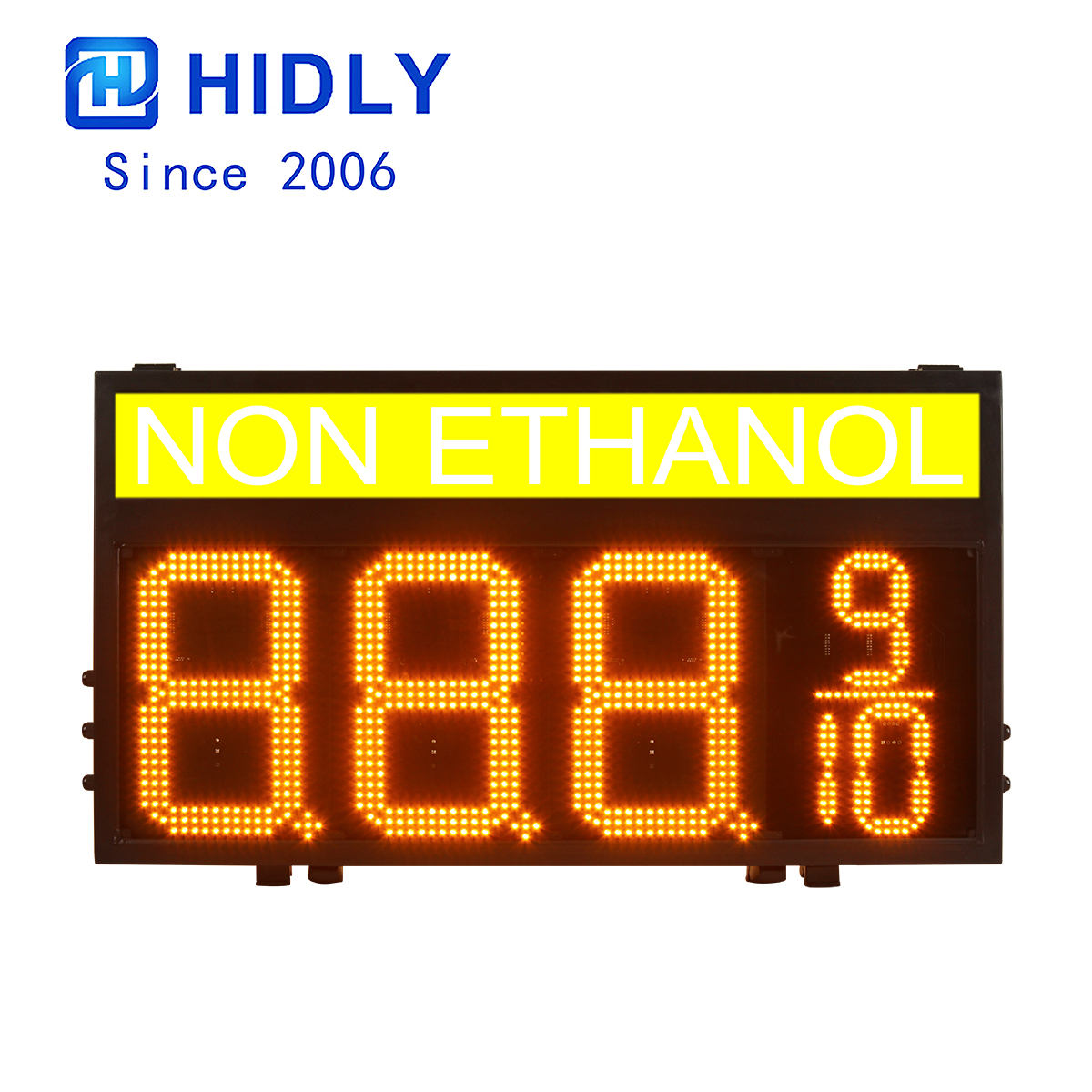

CANOPY GAS SIGNS OF GAS8446

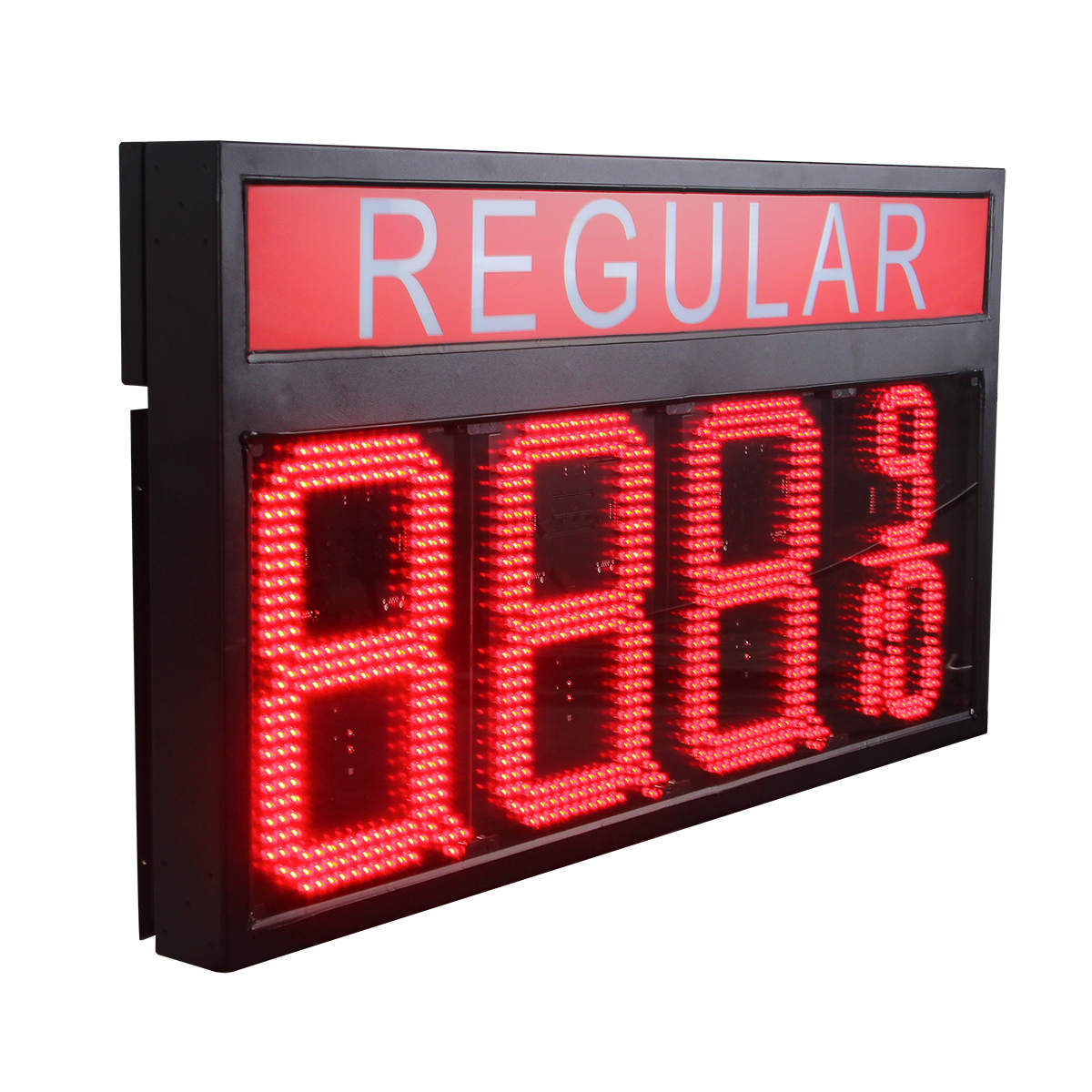

Canopy gas signs can be the preferred method of advertising for your company's service station. Consumers will almost certainly pick your store rather than the competitors. NON ETHANOL canopy gas signs have proven to be eight times more advantageous in comparison to printed signs. NON ETHANOL canopy gas signs are certainly obvious 24/7. Regardless of whether your other signage isn't very apparent, your canopy gas signs are going to be illuminating your store. Rain or shine, customers will be able to differentiate you against your competitors with your modern signs. Utilizing an canopy gas signs will probably draw in the interest of each and every potential consumer traveling by.
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Why HIDLY Canopy Gas Signs?(NON ETHANOL Canopy Gas Signs Advantages):
*Multiple digit heights available 4"-48”.
*Light weight: allows for an easy installation.
*Available led colors: red, green, blue, yellow, white.
*Reduce liability concerns from manual price changing.
*Industrial grade connectors: help prevent faulty contacts.
*Canopy gas signs help your business grow more quickly.
*No extra cost or labor work for updating the canopy gas signs.
*All canopy signs are tested and rated to work at least 100,000 hours.
*Canopy gas signs get your customers attention from as far as 600 meters.
*High efficiency: the lowest energy consumption of any display product to date.
*Double your sales with bright, high quality and long-lasting led canopy gas signs.
*Made for easy mounting: brackets created for easy to mount on existing structure.
*120 degree viewing angle allows for an increased viewing time over the competition.
*Simple to setup: ready to use out of the box (plug and play easy to install and operate).
*Automatic light sensors: detects and adjusts the correct intensity for daytime or nighttime use.
*User friendly remote:update the canopy gas signs sitting in your store with the remote controller.
*Environmentally friendly: no mercury, making them a cleaner alternative to fluorescent and CFL displays.
*Led designed specifically for traffic: technology to prevent glare or reflection for an easier to ready signs.
*Intelligent temperature control maintains safe operation temperatures to make display last as long as possible.
*Be noticed FIRST,from a very far distance,this is a onetime investment that will lead to a steady growth in your business.
*Brightness can be set from remote control or can be set to "Auto" for automatic brightness changes between night and day.

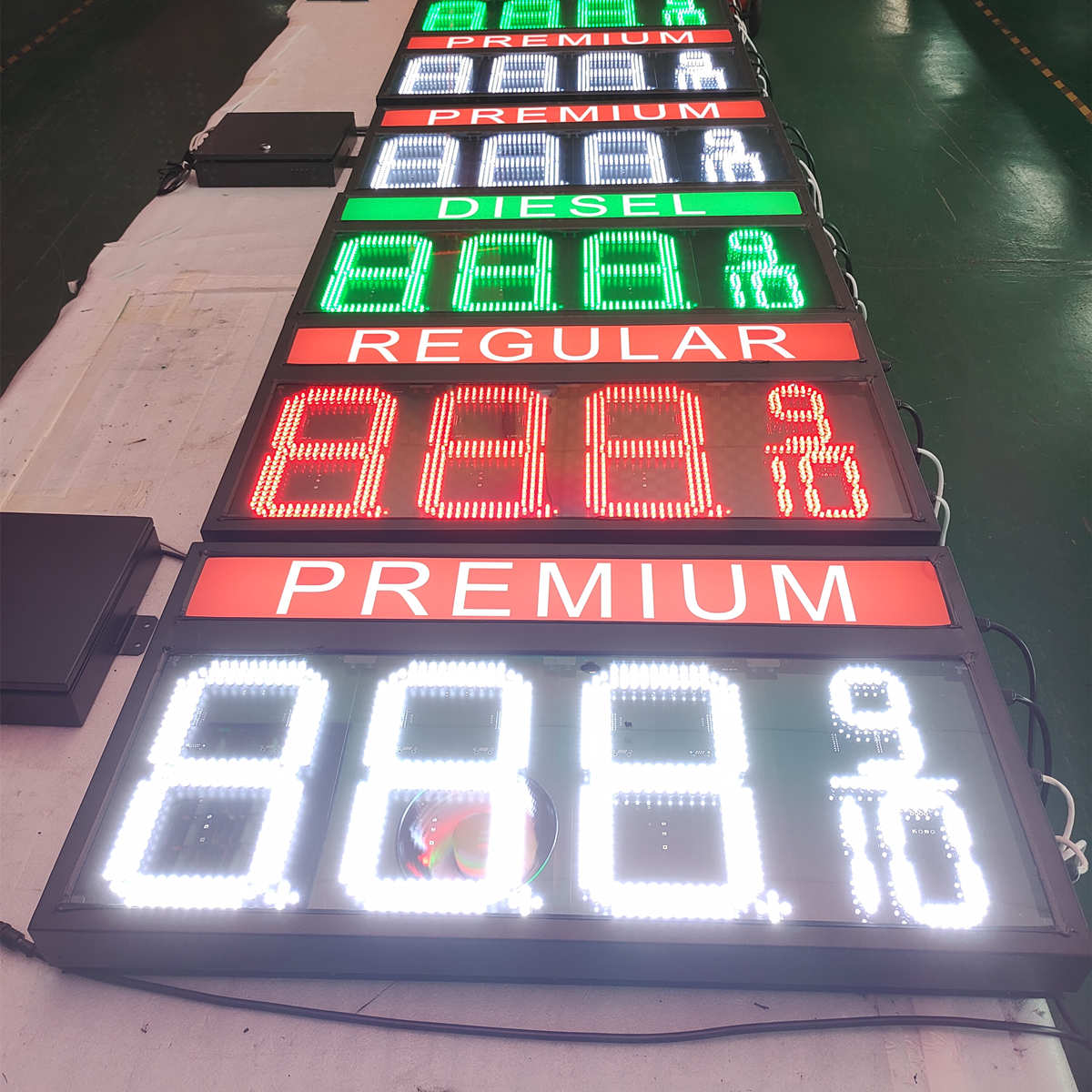

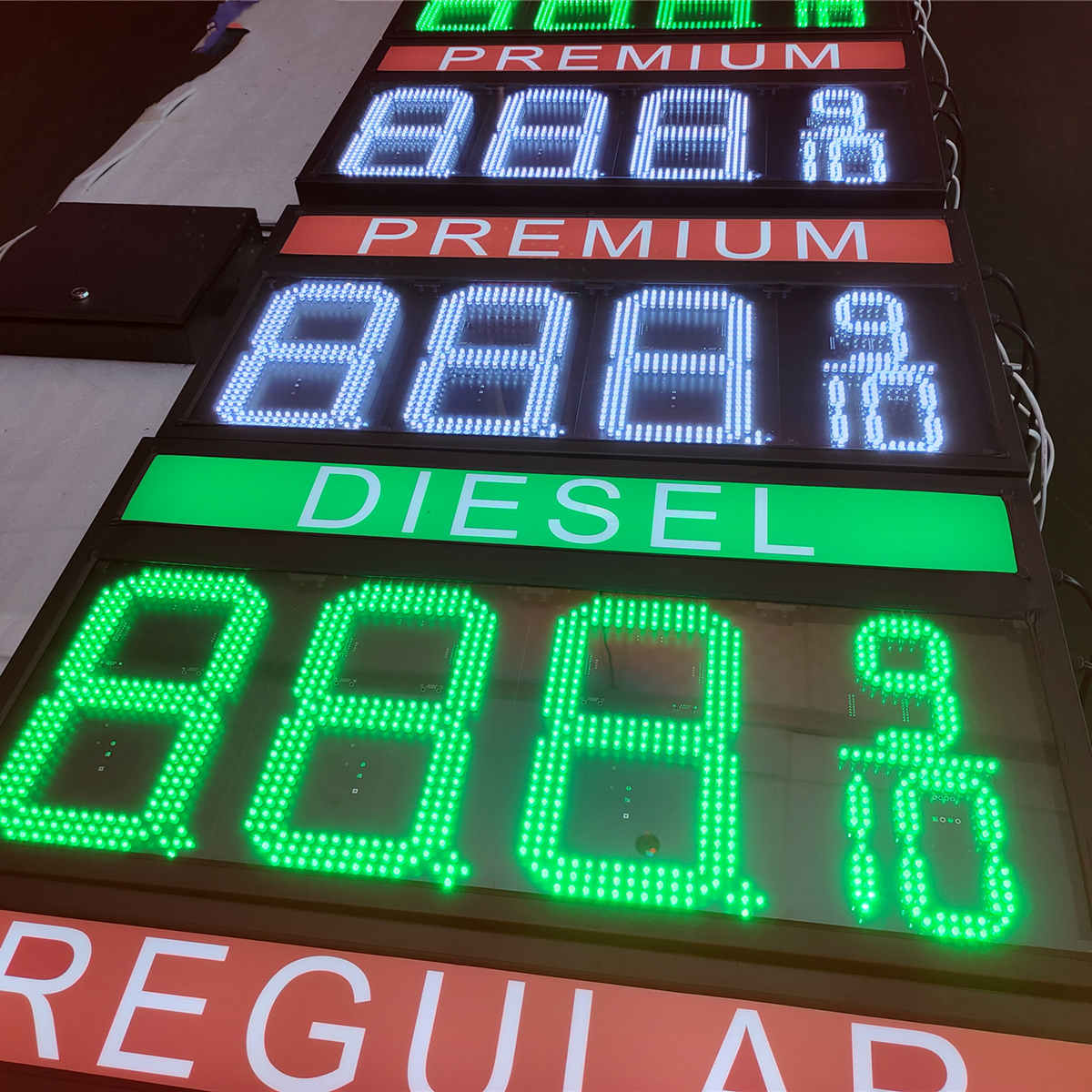

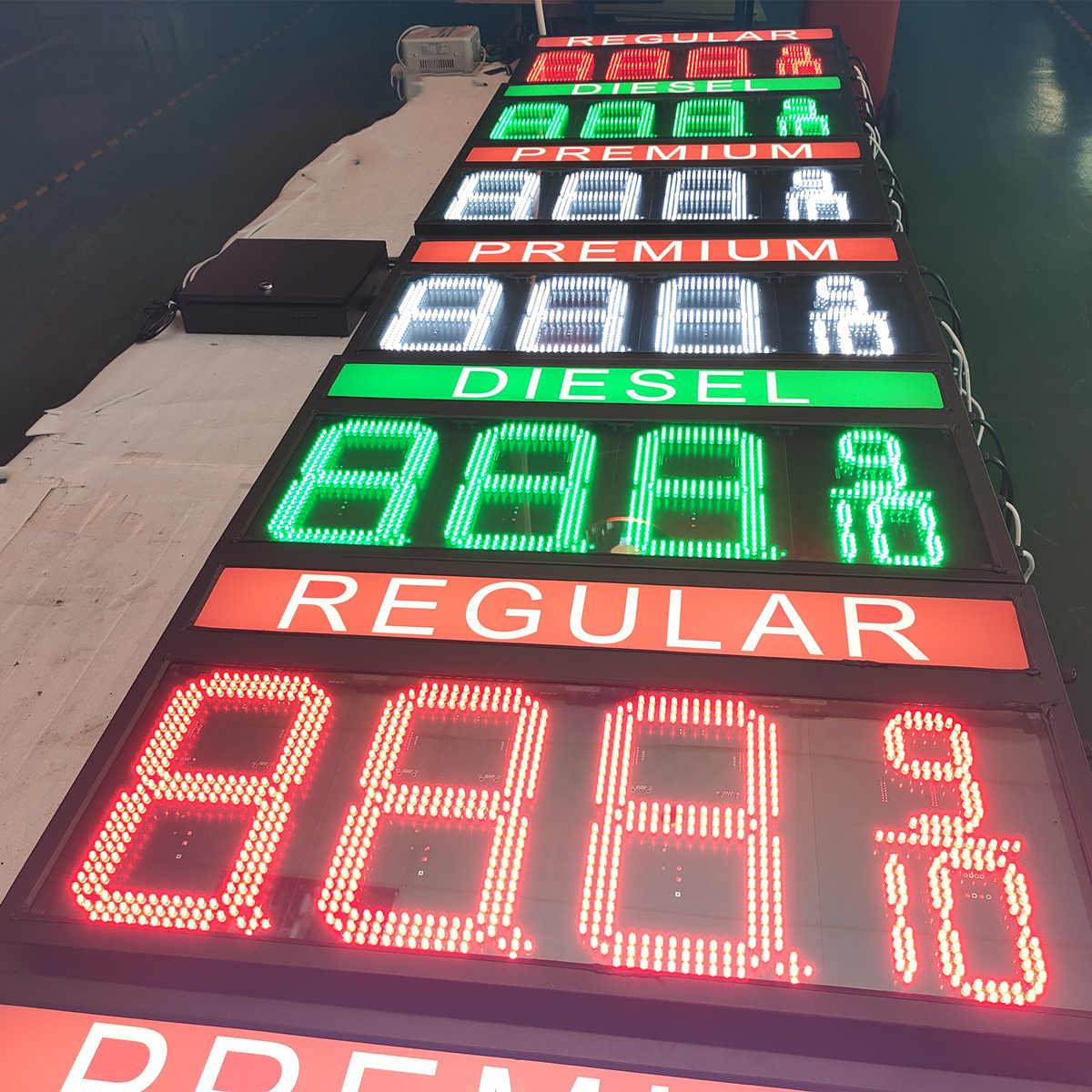

NON ETHANOL canopy gas signs are aging test.
NON ETHANOL canopy gas signs are aging test.
Canopy Gas Signs Specifications:
Model:GAS8446
Name:canopy gas signs.
Canopy signs led type:DIP.
Visibility:1000 m.
PCB material :FR4.
Updated vervion:8.
Digit board size:10 inch.
Power input:AC110 .
Brightness:10000 mcd.
PCB thickness:1.6 mm.
Energy consumption:300 w.
Viewing angle:120 degree.
Humidity range:10-80%RH.
Driver:constant current drive.
Temperature range:-10F-140F.
Light sensor with automatic dimming.
Digit number styles:8.888,8.889,8.88 9/10.
Reduce liability concerns from manual price changing.

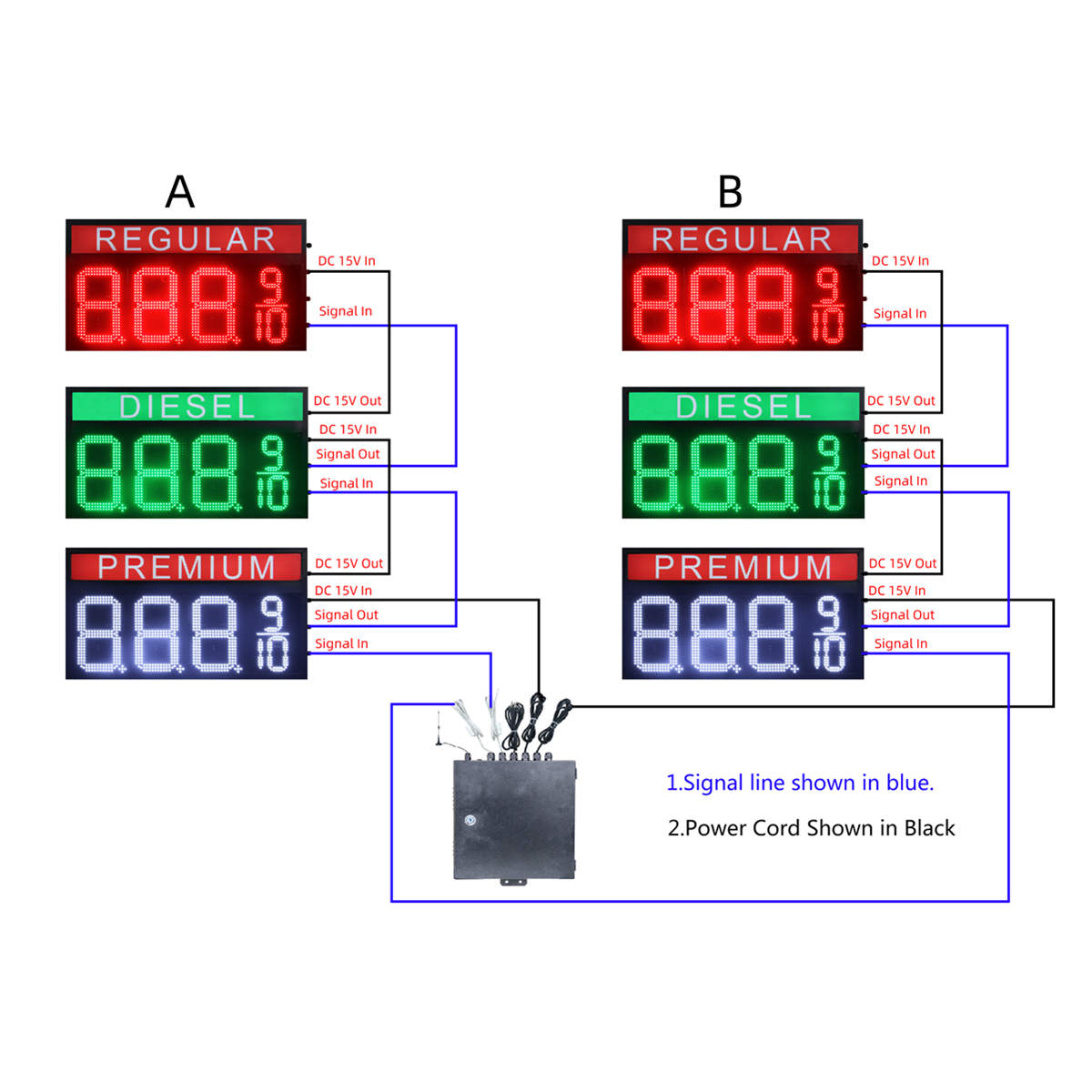

Easy installation, with quick power and signal connections.
Available in colors like red, greem, yellow,white,blue,amber.
Wireless remote control with up to 300 feet direct line of sight.

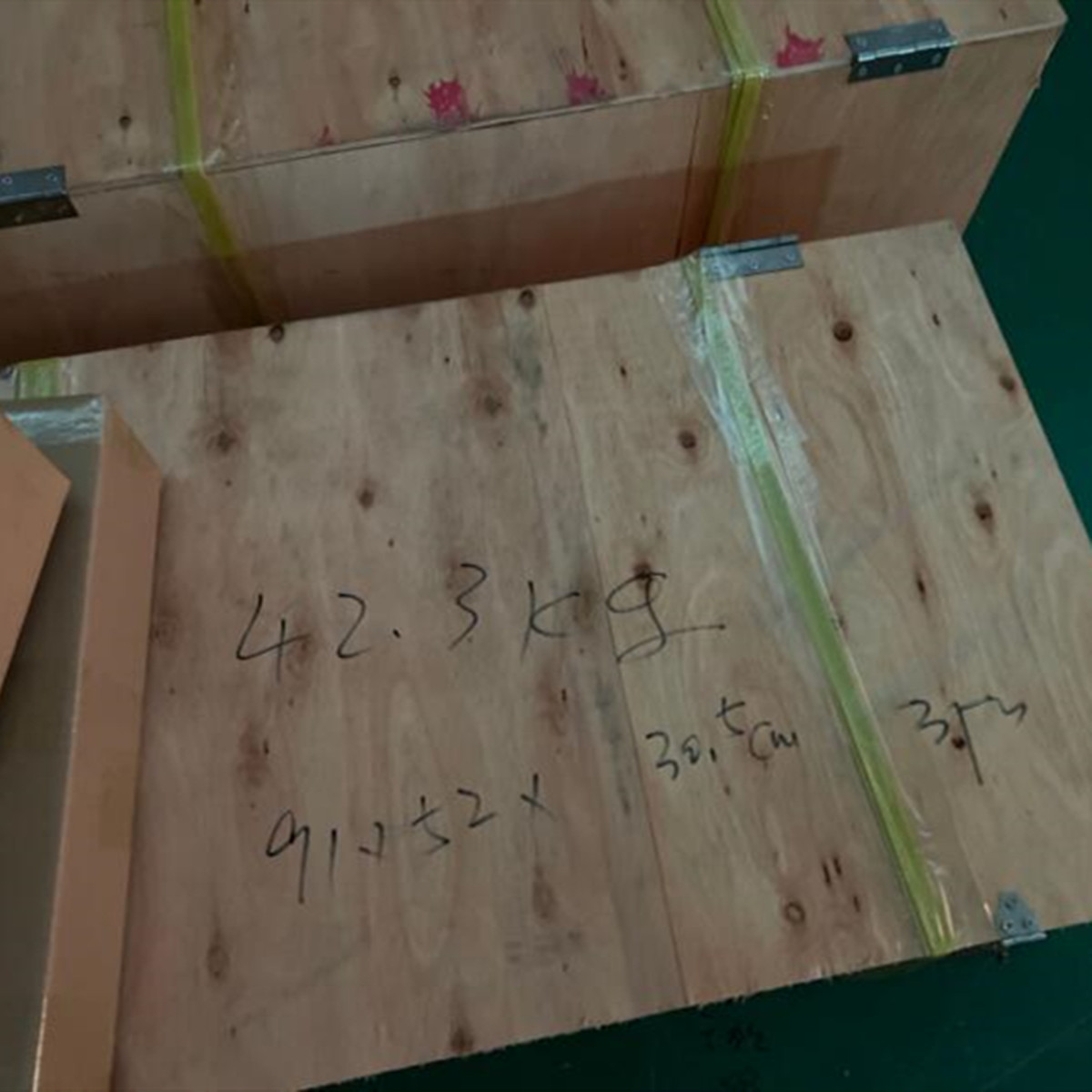

Packaging:wooden case+EPE foam or carton+EPE foam.
2-year limited product warranty.
Canopy Price Signs Packaging Details:

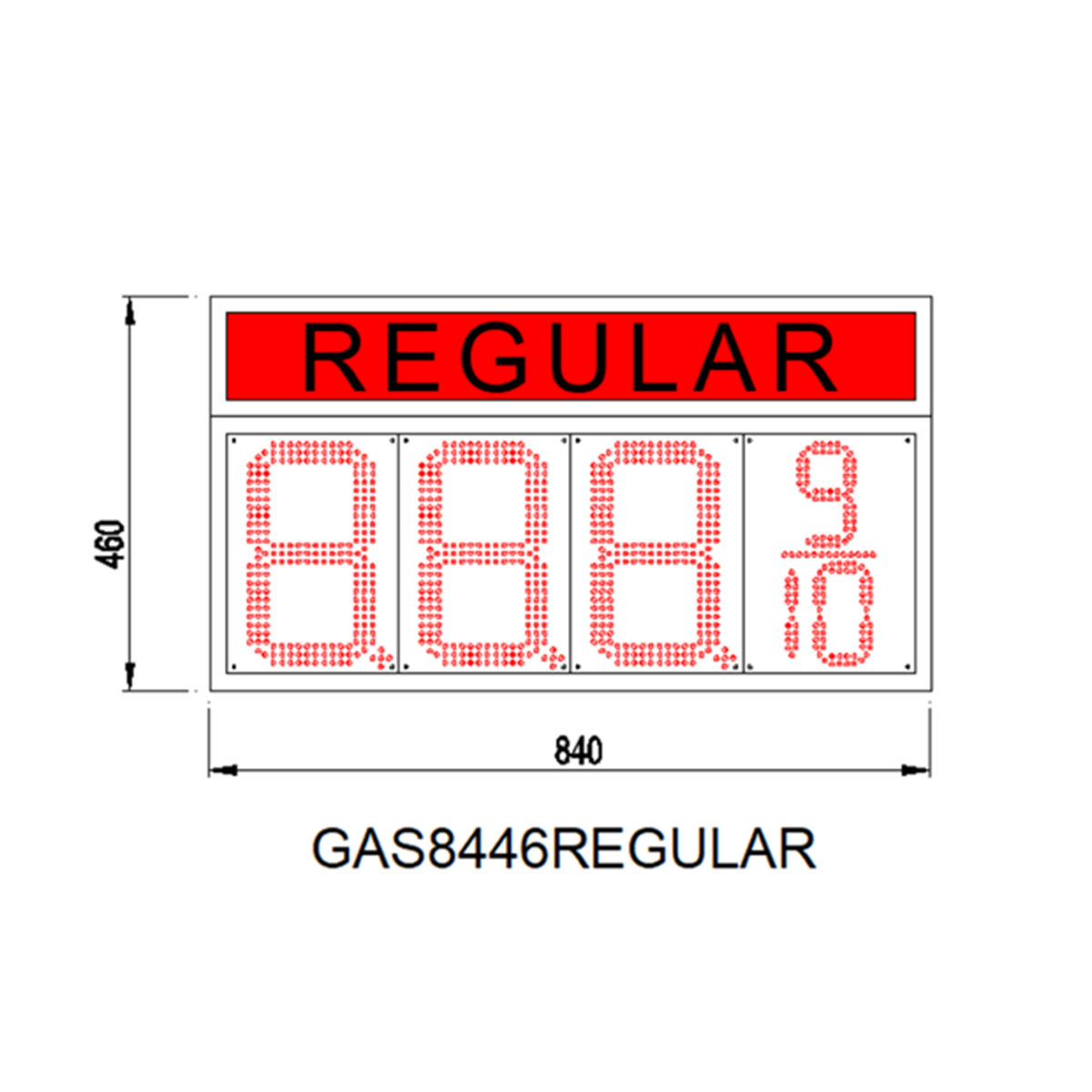

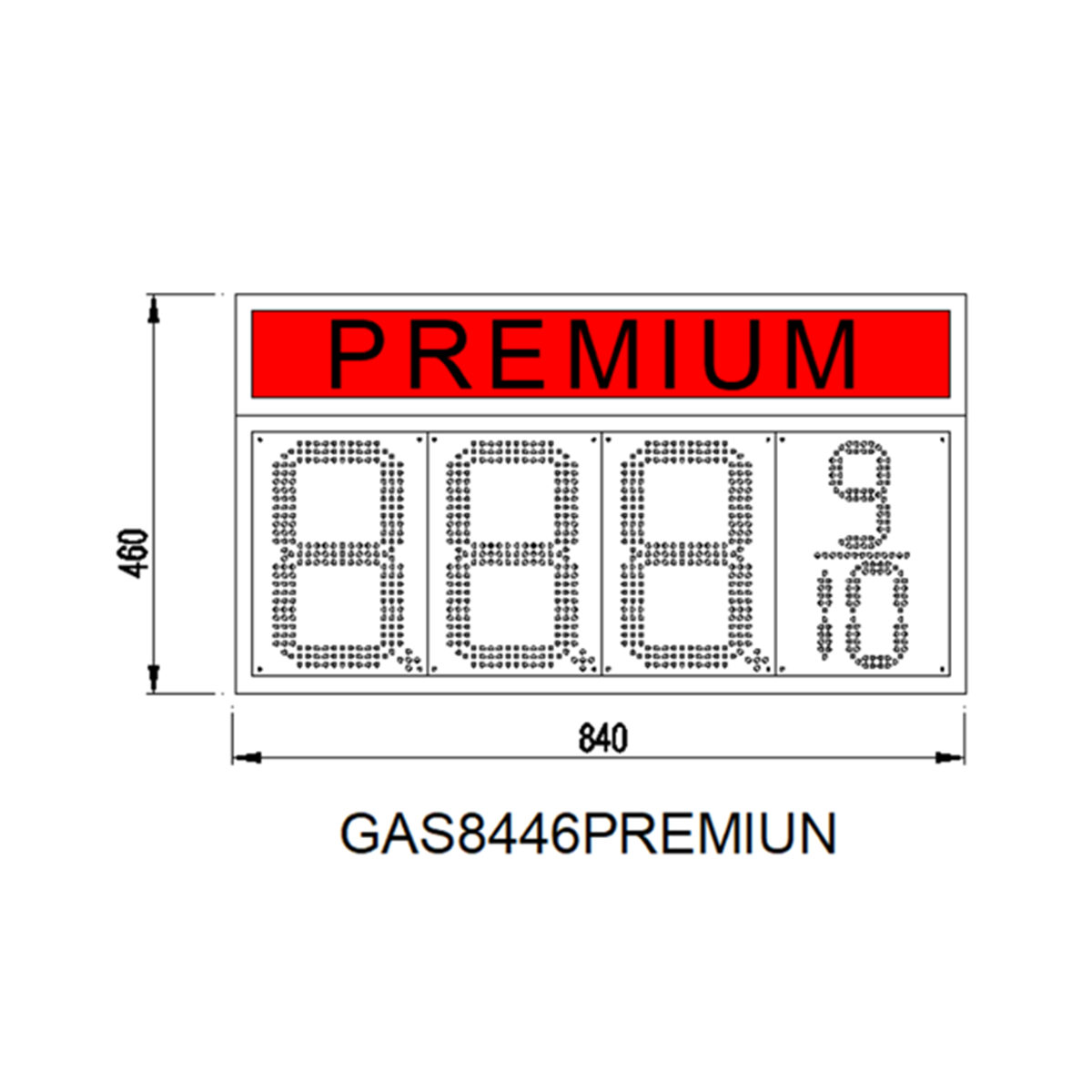

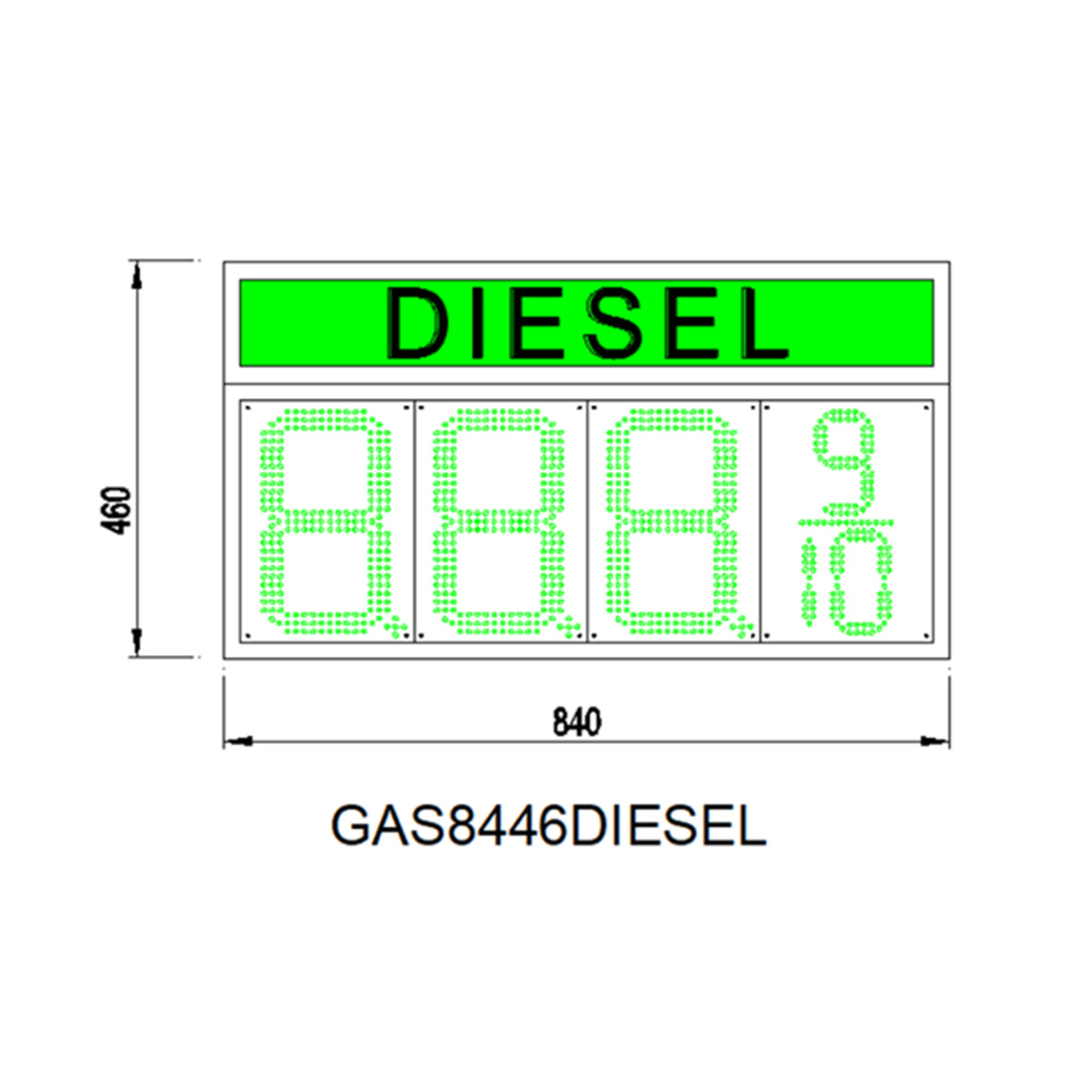

Led box size:840*460*80 mm.
Single net weight:10 kg/pcs.
Outer package:91*52*31 cm.
Qty:3 pcs/CTN.
G.W:42 kg.
1CBM -20 pcs
20' GP-520 pcs
40' GP-1040 pcs
RF Remote Instruction of Canopy Signs
Note: 1.Before you operating, please press (button 8)
2. Press the button not too fast.
RF Remote Instruction of Modify Digit:
Step 1: Under the display working, press（button 3) and the first digit will begin to flash.
Step 2: Press（button 1), the flash digit will INCREASE by one.
Press（button 2), the flash digit will DECREASE by one.
Step 3: Press（button 4), the flash digit will shift to the next digit on the RIGHT,
Press（button 3), the flash digit will shift to the next digit on the LEFT.
Step 4: Press (button 5) to switch the digit.
Step 5: Press (button 6) to switch the dot.
Step 6: Press (button 7) to EXIT without saving.
Step 7: Press (button 8) to EXIT with saving.
RF Remote Instruction of Setting Brightness:
Step 1: Under the display working, press (button 5), all digits will begin to flash.
Step 2: Press (button 1), the sign become brighter; Press (button 2), the price sign become darker; "A” means auto brightness by CDS sensor.
Step 3: Press (button 7) to EXIT without saving.
Step 4: Press (button 8) to EXIT with saving.
Function of Button:
1 Digit-Up - (button 1): INCREASE by one.
2 Digit-Down-(button 2) : DECREASE by one.
3 Edit-(button 3):
Press one time to enter EDIT mode, and the first digit will begin to flash.
In EDIT mode：Press (button 3), the flash digit will shift to the next digit on the LEFT.
4 Shift-Right-(button 4):
The flash digit will shift to the next digit on the RIGHT, for each individual price sign.
5 Setting Brightness- (button 5) :
Press (button 5) to enter SET BRIGHTNESS mode and all digits will begin to flash.
In EDIT mode：Press (button 5), switch the digit
6 Switch-dot (button 6):
In EDIT model, press (button 6) to switch the dot.
7 Exit-(button 7):
Press (button 7) to EXIT without saving.
8 Confirm - (button 8):
Press (button 8) to EXIT with saving.
Thank you for using our LED gas sign!
Warm tips: the following functions need to be operated by oil signs basic operators.
1. Set the number of digits:
Step 1: in the normal working mode, press keys 2 and 8 at the same time, and the last number will flash.
Step 2: press 1 and 2 keys to modify the required value, and shift through 4 keys.
Step 3: press key 8 to save and take effect
2. Key test most
In the normal reality mode, press the S1 and S2 keys on the NON led sign controller at the same time to enter the key test mode. Press the S1 key alone to switch the following four test modes:
a) Maintenance mode: press S2 key once to switch between all on and all off
b) Static mode: manually switch the display by pressing key S2: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "0." "1." "2." "3." "4." "5." "6." "7." "8." "9." "A"
c) Automatic switching display: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "0." "1." "2." "3." "4." "5." "6." "7." "8." "9." "A" .The switching speed can be adjusted by pressing S2 key.
d) Digital flow display: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "0." "1." "2." "3." "4." "5." "6." "7." "8." "9." "A" ,The flow speed can be adjusted by pressing S2 key.
Press the S1 and S2 keys on the non ethanol gas signs control card at the same time to exit the factory test mode.
Frequently Asked Questions NON
1.What are the lead times for NON canopy gas signs?
Upon payment, we will eventually process your order. However a lead time of 30 days is required. NON
2.What do the NON canopy gas signs come with?
Our canopy gas signs come with everything you need to operate such as box, a control box, cables, and remote NON.
3.What is the warranty policy should the canopy gas signs arrive damaged?NON
We are pleased to offer our convenient warranty policy.
4.What color do these NON canopy gas signs come in?
The digits are usually available in colors of red,blue, yellow,white and green.
5.What sizes do the canopy gas signs come in?
The size of the digits is determined by the letter's height. We offer screens from 8" up to 72".
Please refer to sizes for information. Also, do not forget that you can customize your order with the help of our custom canopy gas signs form.
6.What formats do these NON ETHANOL canopy gas signs come in? NON
The display formats are available in 8.88, 8.888, 8.888 9/10 and 8.88 8/8
7.How long do the NON signs last?
Our canopy gas signs can last an average of 6 years.
8.Can you keep them on all day or night? And if so, will it affect the longevity?
Yes, you can keep them on 24/7 without affecting the longevity.NON
9.How to install the canopy gas signs?
Please click here to see installation diagram.
10.Can I get a different combination of screens than what appears on the website?
Yes, please fill out our custom request form for a custom quote if you need different sizes or combinations of colors.
11.How do you pack the NON canopy gas signs?
We pack with utmost care to prevent breakage during shipping. Please refer to how we pack for more details.
12.Can you provide the solution of accessory?
Yes,we can.We are professional in NON ETHANOL canopy gas signs.
13.Can you provide finished product solution for exhibition or bid?
Yes,we can,please refer the website,but the the lead time is longer.
14.Can you provide the NON canopy signs as the size of customing?
Yes,we can. If you want custom please contact us.
